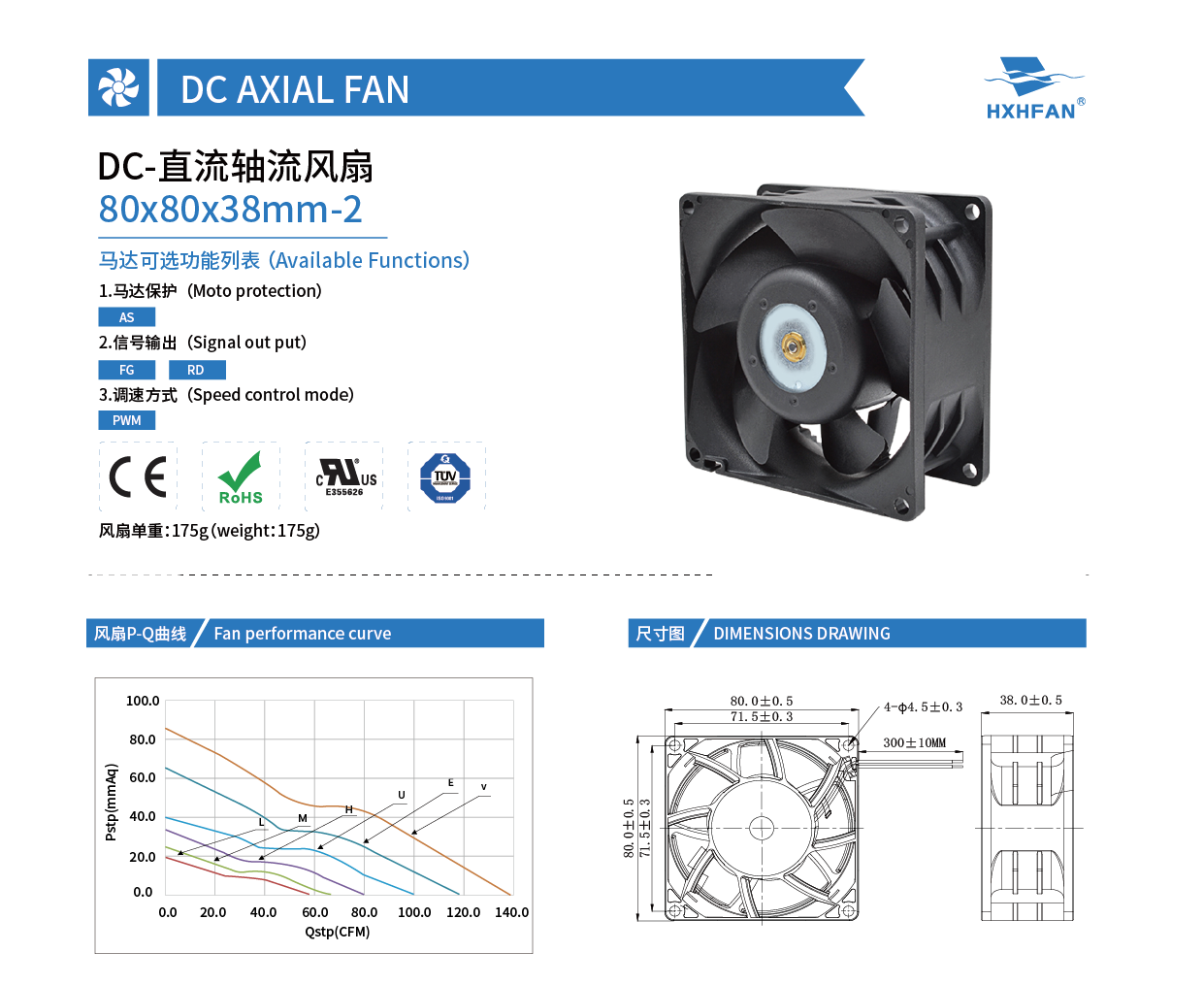

80×80×38mm-2
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part No.	Function	System	VDC	VDC	A	W	RPM	m3/min	CFM	mmH2O	INH2O	dBA
HDB0812VF-2	-A	Ball	12	6.0	3.50	42.00	15000	3.88	137.25	85.95	3.38	69.54
HDB0812EF-2	-A			6.0	2.60	31.20	13000	3.29	116.35	63.22	2.49	63.56
HDB0812UF-2	-A			6.0	1.80	21.60	11000	2.81	99.46	39.43	1.55	61.18
HDB0812HF-2	-A			6.0	1.30	15.60	9000	2.26	80.02	33.76	1.33	53.49
HDB0812MF-2	-A			9.0	1.00	12.00	7500	1.88	66.58	24.74	0.97	51.49
HDB0812LF-2	-A			9.0	0.75	9.00	6500	1.64	58.07	19.47	0.77	47.60
HDB0824VF-2	-A	Ball	24	12.0	1.80	1.40	15000	3.88	137.25	85.95	3.38	69.54
HDB0824EF-2	-A			12.0	1.30	1.10	13000	3.29	116.35	63.22	2.49	63.56
HDB0824UF-2	-A			12.0	1.00	0.68	11000	2.81	99.46	39.43	1.55	61.18
HDB0824HF-2	-A			12.0	0.90	0.48	9000	2.26	80.02	33.76	1.33	53.49
HDB0824MF-2	-A			18.0	0.75	0.25	7500	1.88	66.58	24.74	0.97	51.49
HDB0824LF-2	-A			18.0	0.60	0.23	6500	1.64	58.07	85.95	0.77	47.60
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing

80x80x38mm-2

DC-轴流风扇
