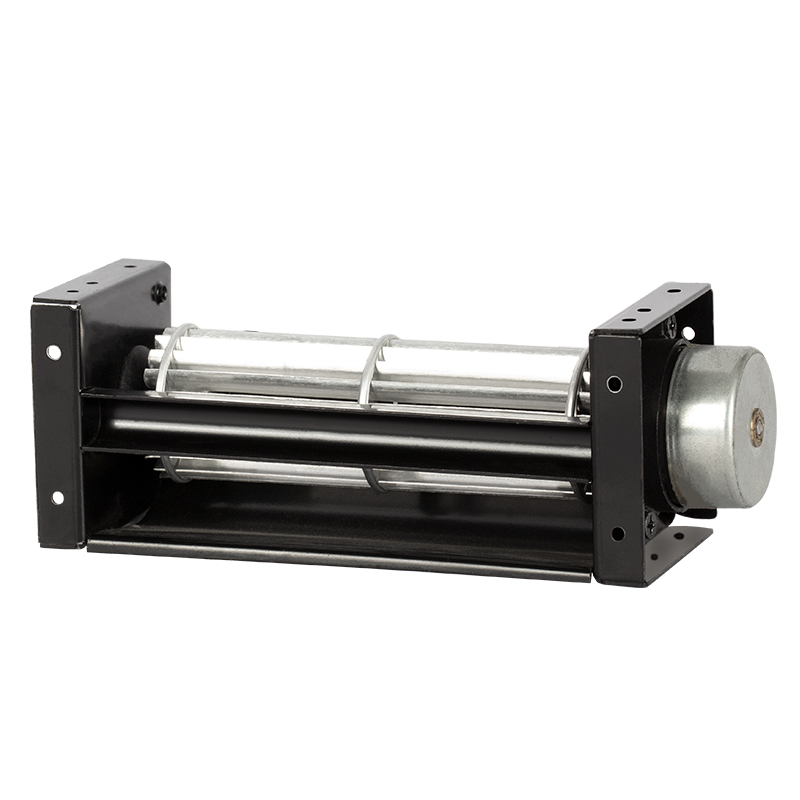

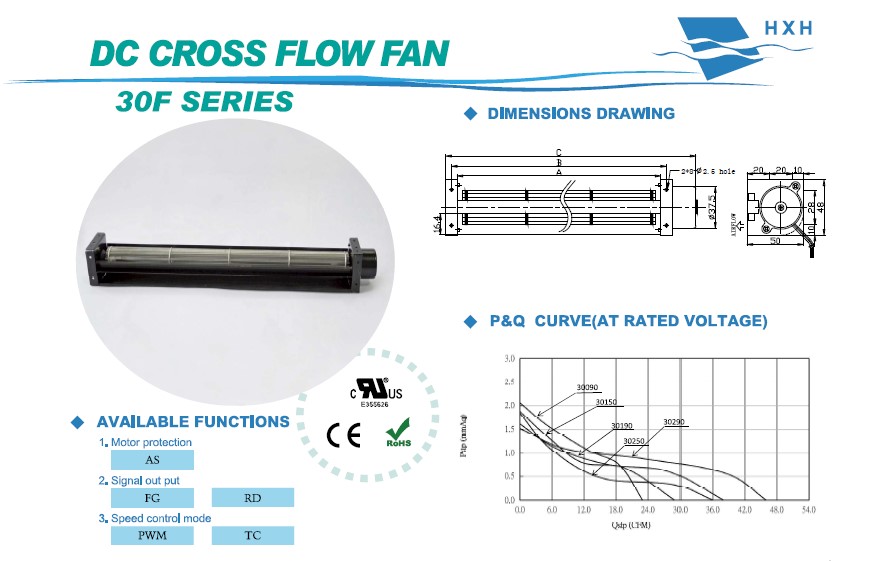

HC-030 SERIES
Model0	Bearing	Size(mm)			Rated Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	System	A	B	C	VDC	A	W	RPM	M3/min	CFM	mmH2O	INH2O	dBA
HCB3012H090	Ball	98	108	134	12	0.15	1.80	3200	0.65	23	2.05	0.08	35.2
HCB3024H090					24	0.14	3.36
HCB3012H150		160	170	196	12	0.16	1.92	3100	0.82	29	1.87	0.07	35.2
HCB3024H150					24	0.15	3.60
HCB3012H190		198	208	234	12	0.20	2.40	2900	1.02	36	1.83	0.07	36.3
HCB3024H190					24	0.16	3.84
HCB3012H250		248	258	285	12	0.20	2.40	2700	1.08	38	1.61	0.06	36.3
HCB3024H250					24	0.12	2.88
HCB3012H290		300	310	340	12	0.22	2.64	2600	1.30	46	1.51	0.06	36.3
HCB3024H290					24	0.20	4.80
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing
Electric Strength					5mA max at 1500VAC for 1 min between lead wire and frame
Insulation Resistance					10M ohm between lead wire and frame(DC 500V)
Life Expectancy(Ball bearing)					50000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Life Expectancy(Hydraulic bearing)					>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Operation Temperature					-10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F), specification
Storage Temperature					Storage Temperature: -40~75 degree C(-40~167 degree F)
Protection					Motor protection and polarity protection
Lead wire					UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26
Plastic Material					Motor protection and polarity protection
