| 80X80X15MM | |||||||||||||
| Frame Size(mm) | Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| 80*80*15 | HYB0812HD | Ball | 12 | 9.0 | 0.38 | 4.6 | 4000 | 42.5 | |||||
| HYB0812MD | 9.0 | 0.30 | 3.6 | 3000 | 34.1 | ||||||||
| HYB0312LD | 9.0 | 0.25 | 3.0 | 2000 | 24.2 | ||||||||
| 80*80*15 | HYB0812UD-A | BALL | 12 | 9.0 | 0.38 | 4.56 | 4300 | 36.14 | |||||
| Electric Strength | 5mA max at 1500VAC for 1 min between lead wire and frame | ||||||||||||
| Insulation Resistance | 10M ohm between lead wire and frame(DC 500V) | ||||||||||||
| Life Expectancy(Ball bearing) | 50000hrs min at 40 degree C/L10 relative humidity 65%+/-20% | ||||||||||||
| Life Expectancy(Hydraulic bearing) | >40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% | ||||||||||||
| Operation Temperature | -10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F), specification | ||||||||||||
| Storage Temperature | Storage Temperature: -40~75 degree C(-40~167 degree F) | ||||||||||||
| Protection | Motor protection and polarity protection | ||||||||||||
| Lead wire | UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26 | ||||||||||||
| Plastic Material | Motor protection and polarity protection | ||||||||||||
关于我们
获得最新报价

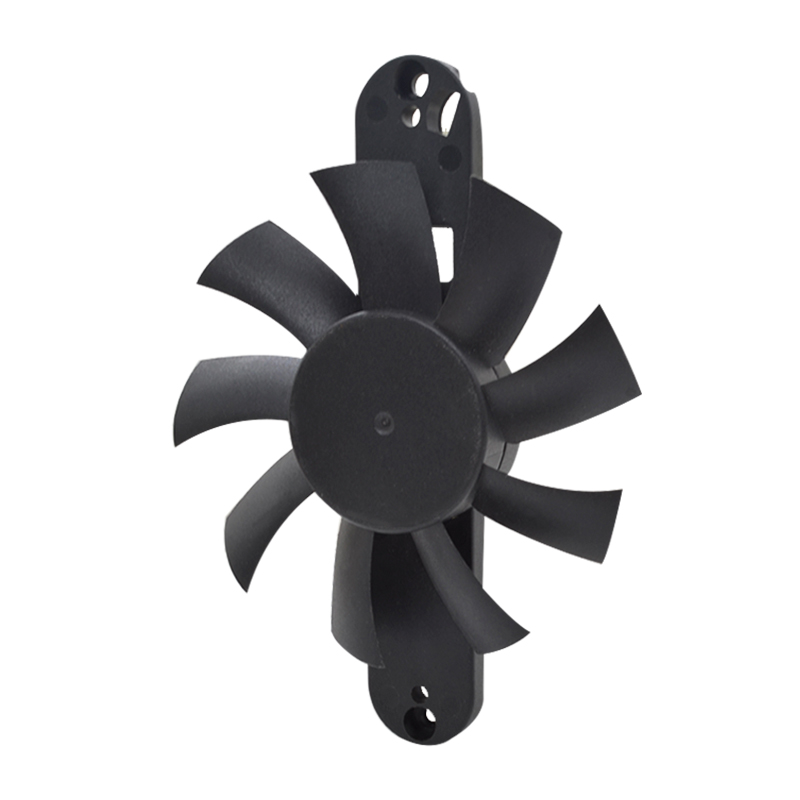

无框架-支架风扇
