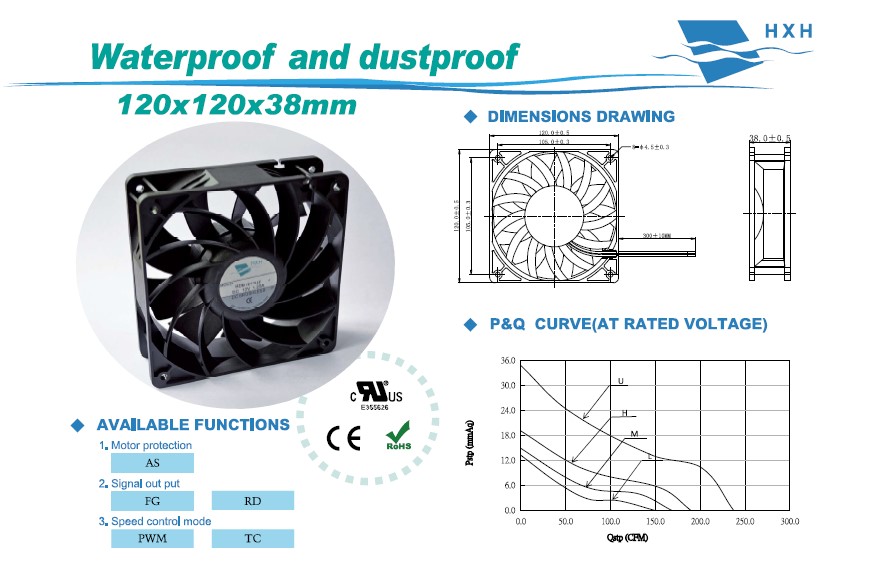

| 120X120X38MM | ||||||||||||
| Model0 | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB1212UF-2 | IP68 | Ball | 12 | 5.0 | 3.90 | 46.80 | 5000 | 6.72 | 237.50 | 34.75 | 1.37 | 70.1 |
| HDB1212HF-2 | IP68 | 5.0 | 2.00 | 24.00 | 4000 | 5.37 | 189.91 | 19.10 | 0.75 | 60.5 | ||
| HDB1212MF-2 | IP68 | 5.0 | 1.50 | 18.00 | 3600 | 4.77 | 168.65 | 14.88 | 0.59 | 51.0 | ||
| HDB1212LF-2 | IP68 | 5.0 | 1.20 | 14.40 | 3200 | 4.24 | 149.91 | 13.23 | 0.52 | 45.3 | ||
| HDB1224UF-2 | IP68 | Ball | 24 | 12.0 | 1.50 | 36.00 | 5000 | 6.72 | 237.50 | 34.75 | 1.37 | 70.1 |
| HDB1224HF-2 | IP68 | 12.0 | 0.90 | 21.60 | 4000 | 5.37 | 189.91 | 19.10 | 0.75 | 60.5 | ||
| HDB1224MF-2 | IP68 | 12.0 | 0.78 | 18.72 | 3600 | 4.77 | 168.65 | 14.88 | 0.59 | 51.0 | ||
| HDB1224LF-2 | IP68 | 12.0 | 0.56 | 13.44 | 3200 | 4.24 | 149.91 | 13.23 | 0.52 | 45.3 | ||
| HDB1248UF-2 | IP68 | Ball | 48 | 24.0 | 0.80 | 38.40 | 5000 | 6.72 | 237.50 | 34.75 | 1.37 | 70.1 |
| HDB1248HF-2 | IP68 | 24.0 | 0.50 | 24.00 | 4000 | 5.37 | 189.91 | 19.10 | 0.75 | 60.5 | ||
| HDB1248MF-2 | IP68 | 24.0 | 0.38 | 18.24 | 3600 | 4.77 | 168.65 | 14.88 | 0.59 | 51.0 | ||
| HDB1248LF-2 | IP68 | 24.0 | 0.28 | 13.44 | 3200 | 4.24 | 149.91 | 13.23 | 0.52 | 45.3 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
| Electric Strength | 5mA max at 1500VAC for 1 min between lead wire and frame | |||||||||||
| Insulation Resistance | 10M ohm between lead wire and frame(DC 500V) | |||||||||||
| Life Expectancy(Ball bearing) | 50000hrs min at 40 degree C/L10 relative humidity 65%+/-20% | |||||||||||
| Life Expectancy(Hydraulic bearing) | >40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% | |||||||||||
| Operation Temperature | -10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F), specification | |||||||||||
| Storage Temperature | Storage Temperature: -40~75 degree C(-40~167 degree F) | |||||||||||
| Protection | Motor protection and polarity protection | |||||||||||
| Lead wire | UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26 | |||||||||||
| Plastic Material | Motor protection and polarity protection | |||||||||||
关于我们
获得最新报价

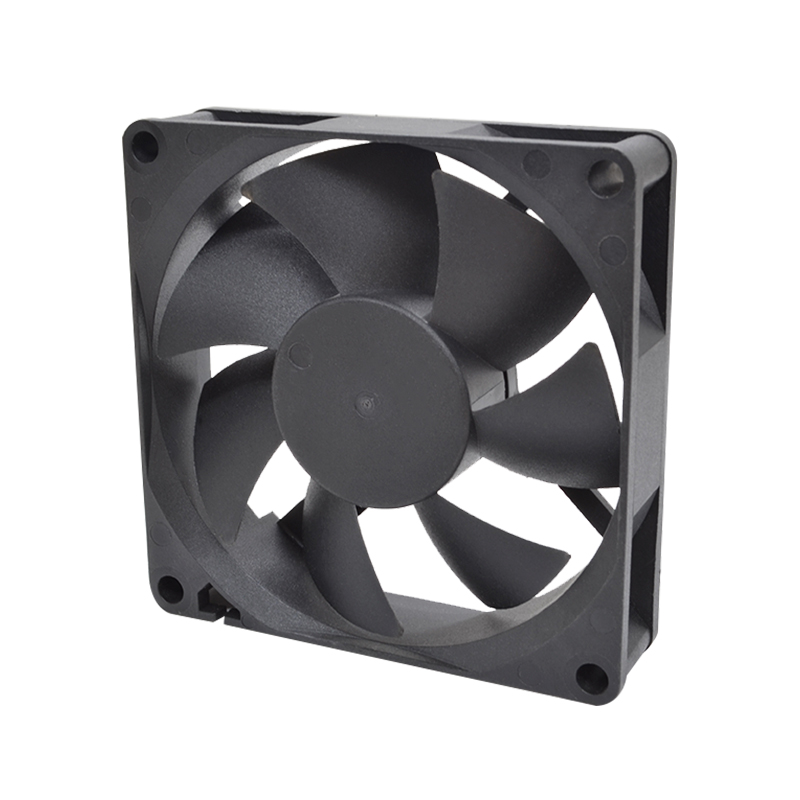

防水防尘-风扇
