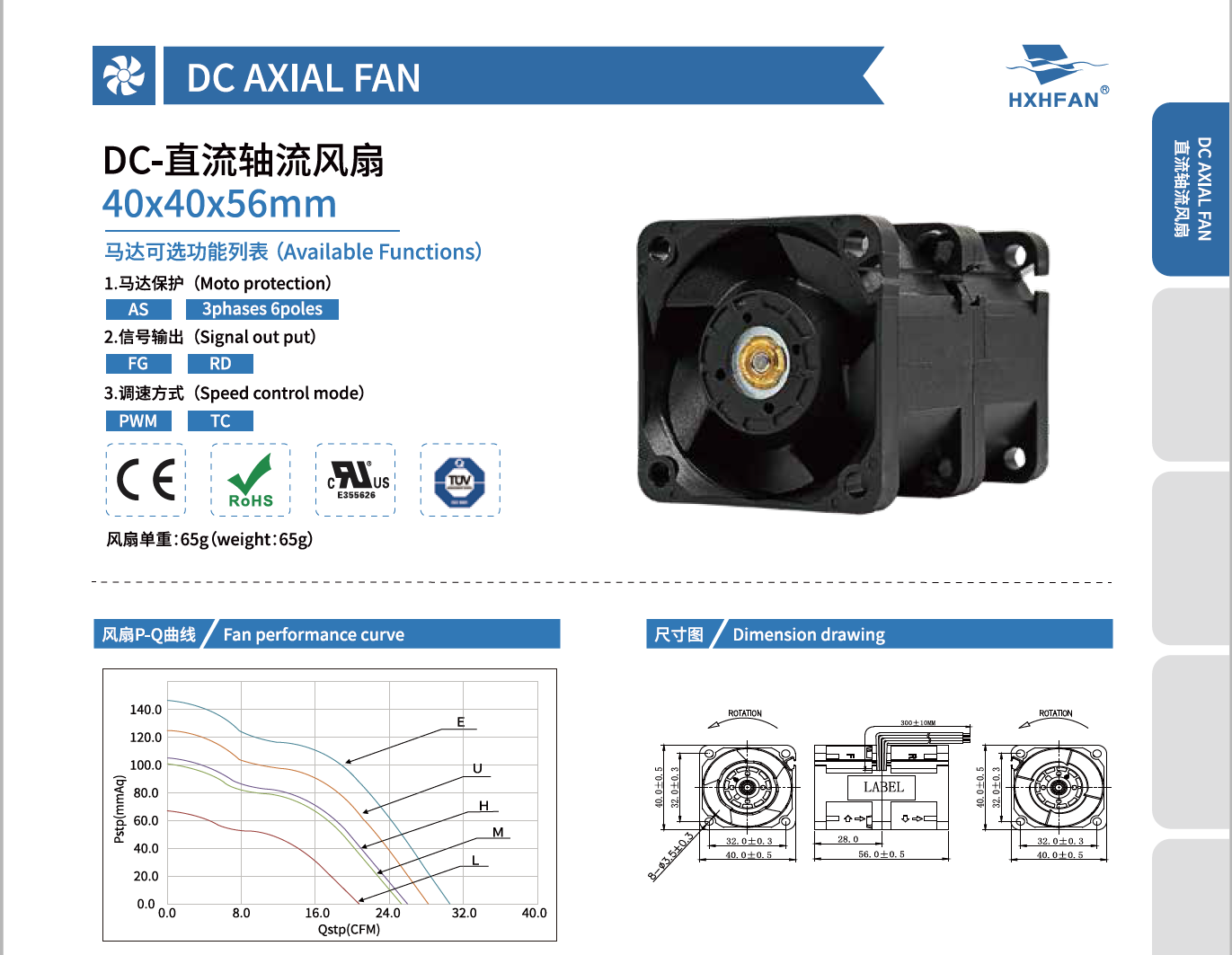

| 40×40×56mm | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB0412EW | -A | Ball | 12 | 6.0 | 1.65 | 19.80 | IN：26000 OUT:23500 |
0.86 | 30.56 | 146.14 | 5.75 | 72.5 |
| HDB0412UW | -A | 6.0 | 1.40 | 16.80 | IN：24500 OUT:22000 |
0.80 | 28.27 | 125.00 | 4.92 | 71.2 | ||
| HDB0412HW | -A | 6.0 | 1.20 | 14.40 | IN：22500 OUT:20500 |
0.73 | 25.96 | 105.42 | 4.15 | 69.4 | ||
| HDB0412MW | -A | 6.0 | 1.00 | 12.00 | IN：22000 OUT:18000 |
0.72 | 25.38 | 100.79 | 3.97 | 68.9 | ||
| HDB0412LW | -A | 6.0 | 0.70 | 8.40 | IN：18000 OUT:15500 |
0.59 | 20.80 | 67.47 | 2.66 | 64.5 | ||
| HDB0424EW | -A | Ball | 24 | 18.0 | 0.87 | 20.79 | IN：26000 OUT:23500 |
0.86 | 30.56 | 146.14 | 5.75 | 72.5 |
| HDB0424UW | -A | 18.0 | 0.75 | 17.98 | IN：24500 OUT:22000 |
0.80 | 28.27 | 125.00 | 4.92 | 71.2 | ||
| HDB0424HW | -A | 18.0 | 0.64 | 15.26 | IN：22500 OUT:20500 |
0.73 | 25.96 | 105.42 | 4.15 | 69.4 | ||
| HDB0424MW | -A | 18.0 | 0.53 | 12.66 | IN：22000 OUT:18000 |
0.72 | 25.38 | 100.79 | 3.97 | 68.9 | ||
| HDB0424LW | -A | 18.0 | 0.37 | 8.82 | IN：18000 OUT:15500 |
0.59 | 20.80 | 67.47 | 2.66 | 64.5 | ||
| Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
