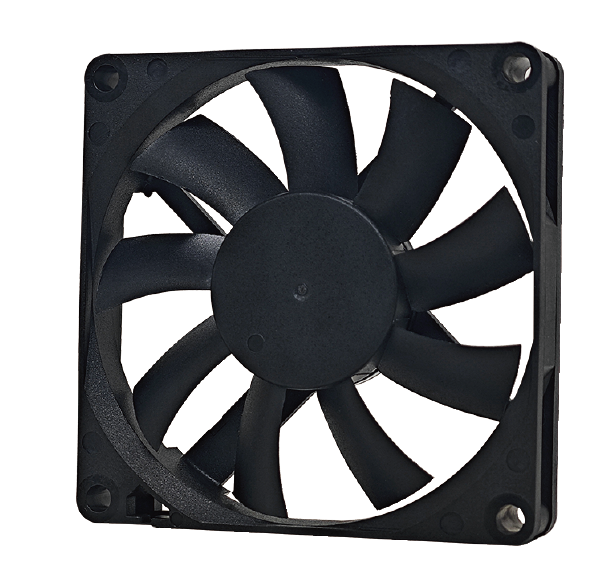

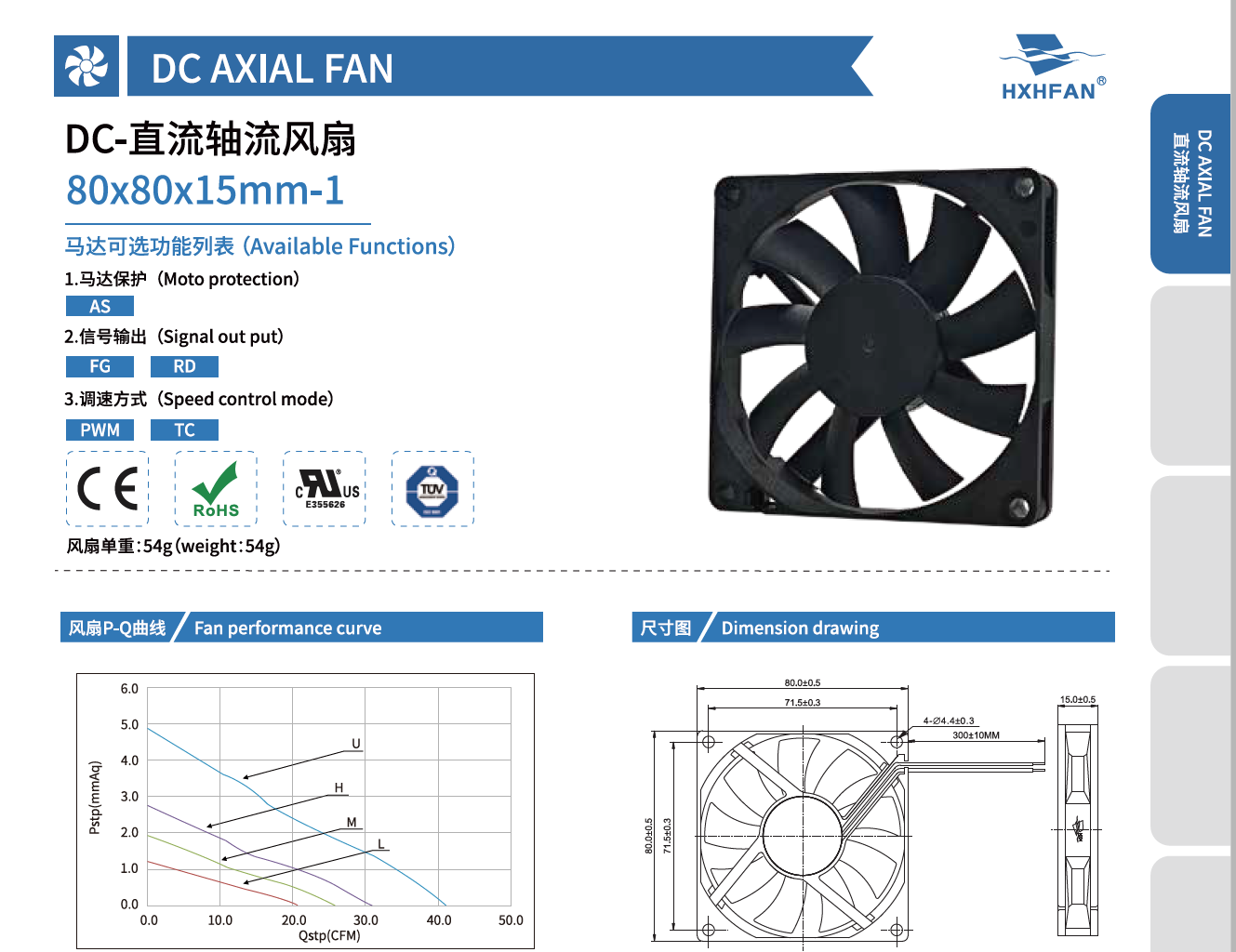

| 80×80×15MM-1 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDS0812HD-1 | Sleeve | 12 | 5.0 | 0.25 | 3.00 | 3000 | 0.87 | 30.76 | 2.74 | 0.11 | 34.1 | |
| HDS0812MD-1 | 5.0 | 0.17 | 2.04 | 2500 | 0.73 | 25.63 | 1.90 | 0.07 | 30.1 | |||
| HDS0812LD-1 | 5.0 | 0.09 | 1.08 | 2000 | 0.58 | 20.51 | 1.22 | 0.05 | 25.3 | |||
| HDB0812UD-1 | -A | Ball | 5.0 | 0.30 | 3.60 | 4000 | 1.16 | 41.01 | 4.88 | 0.19 | 40.3 | |
| HDB0812HD-1 | -A | 5.0 | 0.25 | 3.00 | 3000 | 0.87 | 30.76 | 2.74 | 0.11 | 34.1 | ||
| HDB0812MD-1 | 5.0 | 0.17 | 2.04 | 2500 | 0.73 | 25.63 | 1.90 | 0.07 | 30.1 | |||
| HDB0812LD-1 | 5.0 | 0.09 | 1.08 | 2000 | 0.58 | 20.51 | 1.22 | 0.05 | 25.3 | |||
| HDS0824HD-1 | Sleeve | 24 | 12.0 | 0.13 | 3.12 | 3000 | 0.87 | 30.76 | 2.74 | 0.11 | 34.1 | |
| HDS0824MD-1 | 12.0 | 0.10 | 2.40 | 2500 | 0.73 | 25.63 | 1.90 | 0.07 | 30.1 | |||
| HDS0824LD-1 | 12.0 | 0.06 | 1.44 | 2000 | 0.58 | 20.51 | 1.22 | 0.05 | 25.3 | |||
| HDB0824UD-1 | -A | Ball | 12.0 | 0.20 | 4.80 | 4000 | 1.16 | 41.01 | 4.88 | 0.19 | 40.3 | |
| HDB0824HD-1 | -A | 12.0 | 0.13 | 3.12 | 3000 | 0.87 | 30.76 | 2.74 | 0.11 | 34.1 | ||
| HDB0824MD-1 | 12.0 | 0.10 | 2.40 | 2500 | 0.73 | 25.63 | 1.90 | 0.07 | 30.1 | |||
| HDB0824LD-1 | 12.0 | 0.06 | 1.44 | 2000 | 0.58 | 20.51 | 1.22 | 0.05 | 25.3 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
