产品描述

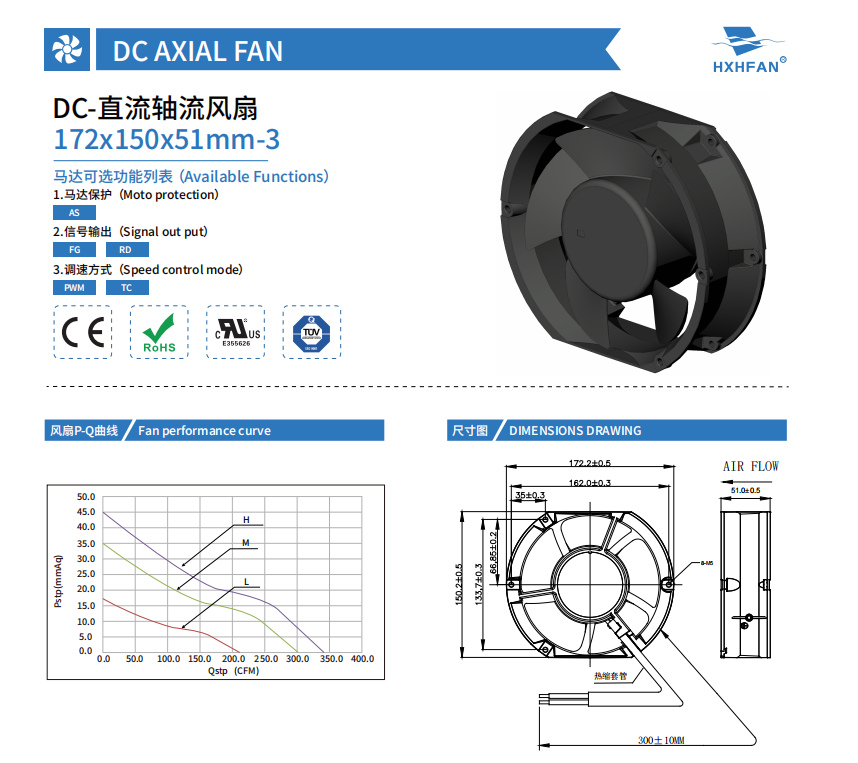

| 172×150×51MM-3 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB17224HU-3 | -A | Ball | 24 | 18.0 | 2.44 | 58.56 | 5200 | 9.82 | 347.00 | 46.70 | 1.84 | 67.2 |
| HDB17224MU-3 | -A | Ball | 18.0 | 1.58 | 37.92 | 4500 | 8.49 | 300.00 | 35.00 | 1.38 | 64.0 | |
| HDB17224LU-3 | -A | Ball | 18.0 | 0.57 | 13.68 | 3200 | 6.03 | 213.00 | 17.70 | 0.70 | 56.6 | |
| HDB17248HU-3 | -A | Ball | 48 | 24.0 | 1.22 | 58.56 | 5200 | 9.82 | 347.00 | 46.70 | 1.84 | 67.2 |
| HDB17248MU-3 | -A | Ball | 24.0 | 0.79 | 37.92 | 4500 | 8.49 | 300.00 | 35.00 | 1.38 | 64.0 | |
| HDB17248LU-3 | -A | Ball | 24.0 | 0.28 | 13.44 | 3200 | 6.03 | 213.00 | 17.70 | 0.70 | 56.6 | |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
