产品描述
| 80×80×25MM-6 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB0812VA-6 | -A | Ball | 12 | 7.0 | 1.90 | 22.80 | 10000 | 2.98 | 105.22 | 39.99 | 1.57 | 60.8 |
| HDB0812EA-6 | -A | 7.0 | 1.39 | 16.68 | 9000 | 2.68 | 94.70 | 32.39 | 1.28 | 58.5 | ||
| HDB0812UA-6 | -A | 7.0 | 0.97 | 11.64 | 8000 | 2.38 | 84.18 | 25.60 | 1.01 | 55.9 | ||
| HDB0824VA-6 | -A | 24 | 18.0 | 0.95 | 22.80 | 10000 | 2.98 | 105.22 | 39.99 | 1.57 | 60.8 | |
| HDB0824EA-6 | -A | 18.0 | 0.69 | 16.56 | 9000 | 2.68 | 94.70 | 32.39 | 1.28 | 58.5 | ||
| HDB0824UA-6 | -A | 18.0 | 0.49 | 11.76 | 8000 | 2.38 | 84.18 | 25.60 | 1.01 | 55.9 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
关于我们
获得最新报价

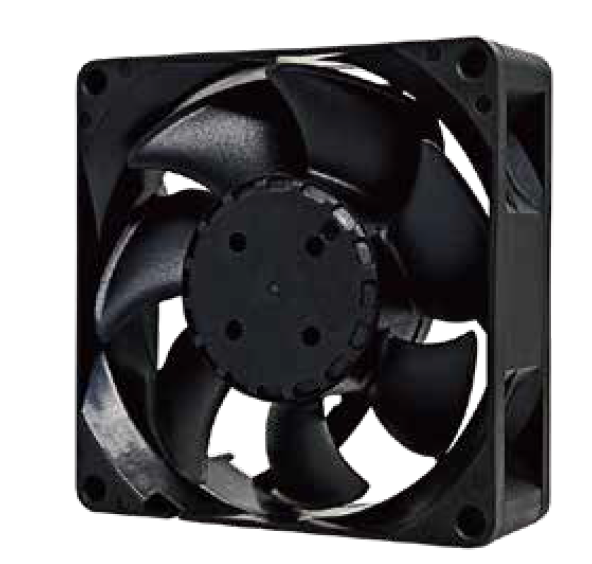

80x80x25mm-6
