产品描述
| 80×80×25MM-5 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB0812VA-5 | -A | Ball | 12 | 5.0 | 0.64 | 7.69 | 7000 | 2.22 | 78.50 | 20.50 | 0.81 | 55.5 |
| HDB0812EA-5 | -A | 5.0 | 0.32 | 3.85 | 5500 | 1.73 | 61.10 | 16.37 | 0.64 | 48.7 | ||
| HDB0812UA-5 | -A | 5.0 | 0.15 | 1.82 | 4000 | 1.27 | 44.83 | 8.90 | 0.35 | 39.4 | ||
| HDB0824VA-5 | -A | 24 | 12.0 | 0.32 | 7.68 | 7000 | 2.22 | 78.50 | 20.50 | 0.81 | 55.5 | |
| HDB0824EA-5 | -A | 12.0 | 0.16 | 3.84 | 5500 | 1.73 | 61.10 | 16.37 | 0.64 | 48.7 | ||
| HDB0824UA-5 | -A | 12.0 | 0.08 | 1.92 | 4000 | 1.27 | 44.83 | 8.90 | 0.35 | 39.4 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
关于我们
获得最新报价

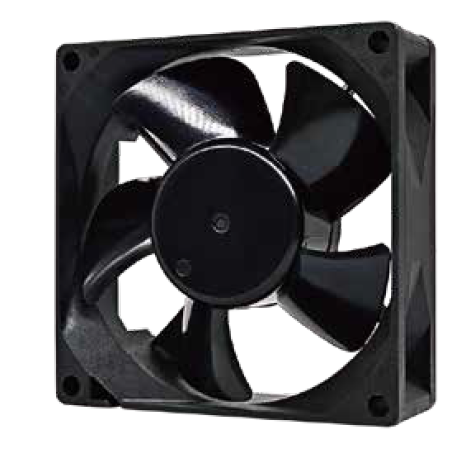

80x80x25mm-5
MOQ：
价格：
