产品描述

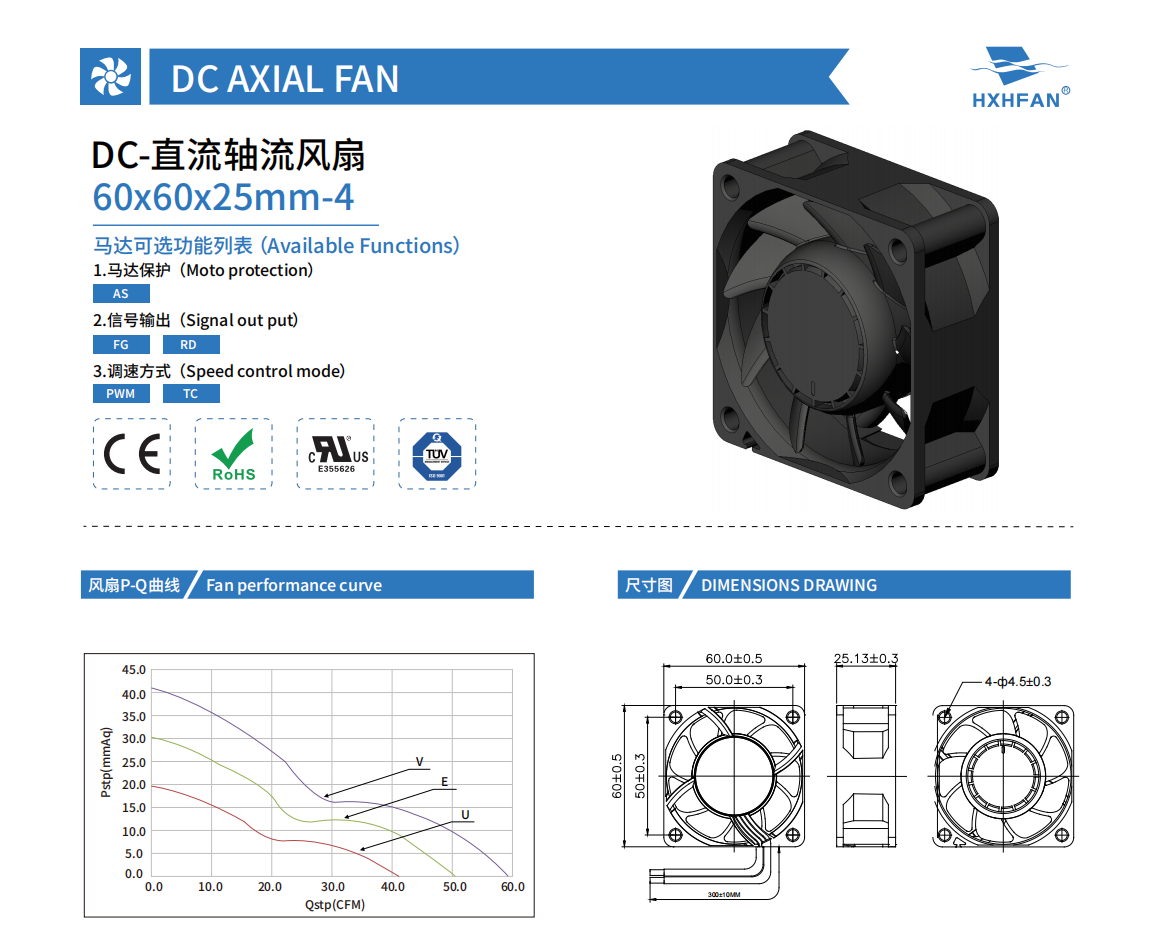

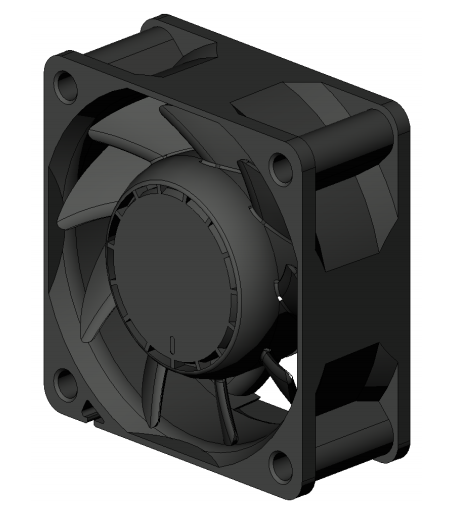

| 60×60×25MM-4 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB0612VA-4 | -A | Ball | 12 | 6.0 | 1.25 | 15.00 | 13000 | 1.68 | 59.38 | 40.98 | 1.61 | 57.3 |
| HDB0612EA-4 | -A | 6.0 | 0.80 | 9.60 | 11000 | 1.43 | 50.55 | 30.26 | 1.19 | 53.9 | ||
| HDB0612UA-4 | -A | 6.0 | 0.50 | 6.00 | 9000 | 1.16 | 41.13 | 19.66 | 0.77 | 49.3 | ||
| HDB0624VA-4 | -A | 24 | 18.0 | 0.62 | 14.88 | 13000 | 1.68 | 59.38 | 40.98 | 1.61 | 57.3 | |
| HDB0624EA-4 | -A | 18.0 | 0.40 | 9.60 | 11000 | 1.43 | 50.55 | 30.26 | 1.19 | 53.9 | ||
| HDB0624UA-4 | -A | 18.0 | 0.25 | 6.00 | 9000 | 1.16 | 41.13 | 19.66 | 0.77 | 49.3 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
