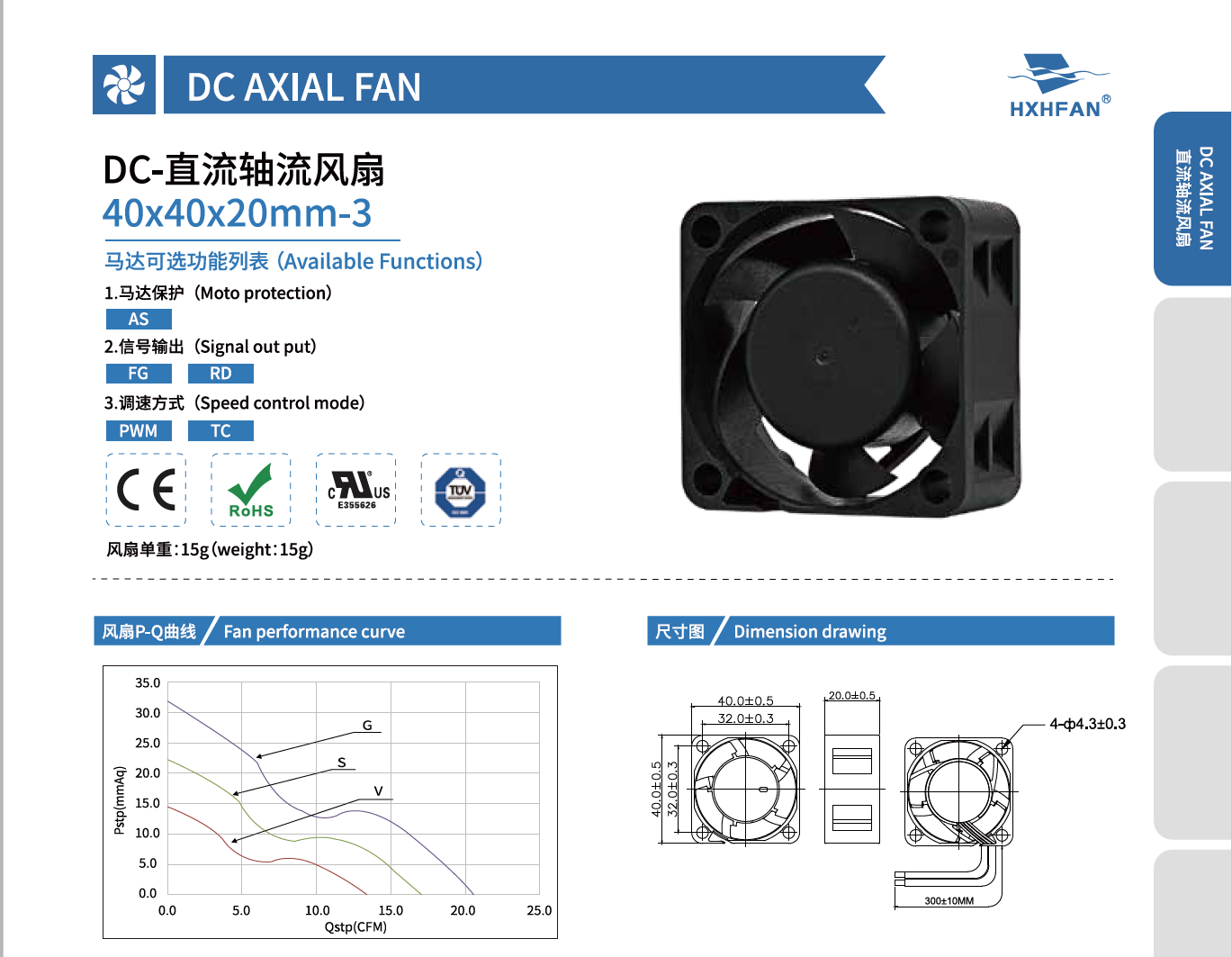

| 40×40×20MM-3 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB0412GC-3 | Ball | 12 | 7.0 | 0.45 | 5.40 | 17000 | 0.58 | 20.63 | 31.80 | 1.24 | 52.5 | |
| HDB0412SC-3 | 7.0 | 0.30 | 3.60 | 14000 | 0.48 | 17.10 | 22.30 | 0.87 | 46.5 | |||
| HDB0412VC-3 | 7.0 | 0.20 | 2.40 | 11000 | 0.38 | 13.40 | 14.40 | 0.56 | 39.4 | |||
| HDB0424GC-3 | 24 | 12.0 | 0.23 | 5.52 | 17000 | 0.58 | 20.63 | 31.80 | 1.24 | 52.5 | ||
| HDB0424SC-3 | 12.0 | 0.15 | 3.60 | 14000 | 0.48 | 17.10 | 22.30 | 0.87 | 46.5 | |||
| HDB0424VC-3 | 12.0 | 0.10 | 2.40 | 11000 | 0.38 | 13.40 | 14.40 | 0.56 | 39.4 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
