303015MM
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M³/min	CFM	mmH₂O	INH₂O	dBA
HDS0305HD		Sleeve	5	4.0	0.30	1.50	10000	0.13	4.52	4.89	0.19	34.0
HDS0305MD				4.0	0.18	0.90	8000	0.10	3.51	3.14	0.12	28.7
HDS0305LD				4.0	0.12	0.60	6000	0.07	2.58	1.79	0.07	20.9
HDB0305HD		Ball		4.0	0.30	1.50	10000	0.13	4.52	4.89	0.19	34.0
HDB0305MD				4.0	0.18	0.90	8000	0.10	3.51	3.14	0.12	28.7
HDB0305LD				4.0	0.12	0.60	6000	0.07	2.58	1.79	0.07	20.9
HDS0312HD		Sleeve	12	9.0	0.10	1.20	10000	0.13	4.52	4.89	0.19	34.0
HDS0312MD				9.0	0.08	0.96	8000	0.10	3.51	3.14	0.12	28.7
HDS0312LD				9.0	0.06	0.72	6000	0.07	2.58	1.79	0.07	20.9
HDB0312HD		Ball		9.0	0.10	1.20	10000	0.13	4.52	4.89	0.19	34.0
HDB0312MD				9.0	0.08	0.96	8000	0.10	3.51	3.14	0.12	28.7
HDB0312LD				9.0	0.06	0.72	6000	0.07	2.58	1.79	0.07	20.9
HDS0324HD		Sleeve	24	12.0	0.07	1.68	10000	0.13	4.52	4.89	0.19	34.0
HDS0324MD				12.0	0.06	1.44	8000	0.10	3.51	3.14	0.12	28.7
HDS0324LD				12.0	0.04	0.96	6000	0.07	2.58	1.79	0.07	20.9
HDB0324HD		Ball		12.0	0.07	1.68	10000	0.13	4.52	4.89	0.19	34.0
HDB0324MD				12.0	0.06	1.44	8000	0.10	3.51	3.14	0.12	28.7
HDB0324LD				12.0	0.04	0.96	6000	0.07	2.58	1.79	0.07	20.9
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing

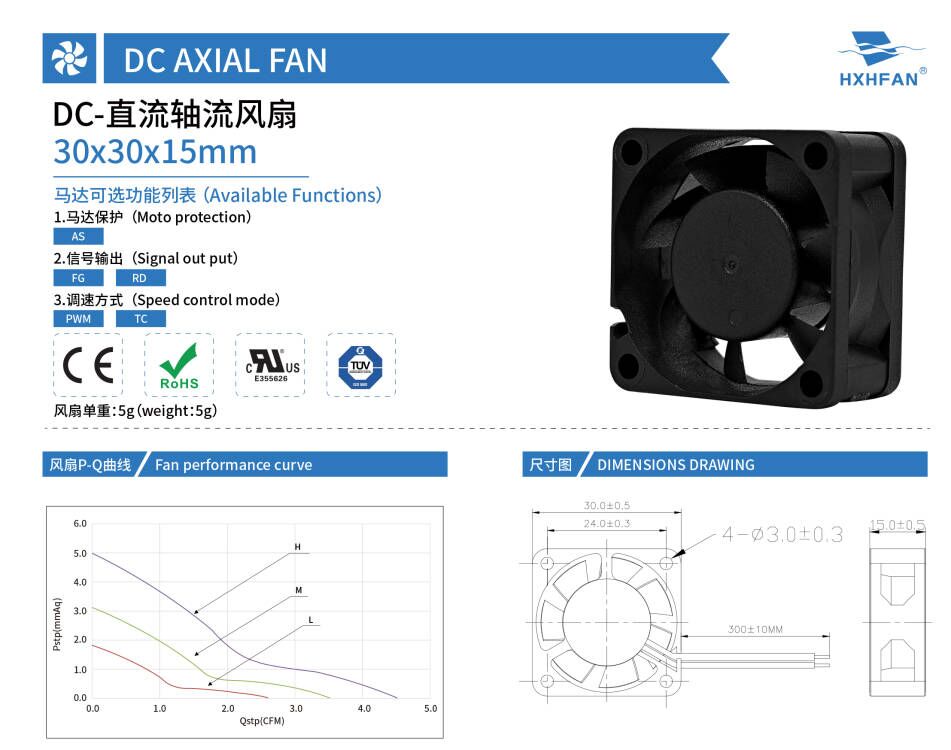

30x30x15mm

DC-轴流风扇
