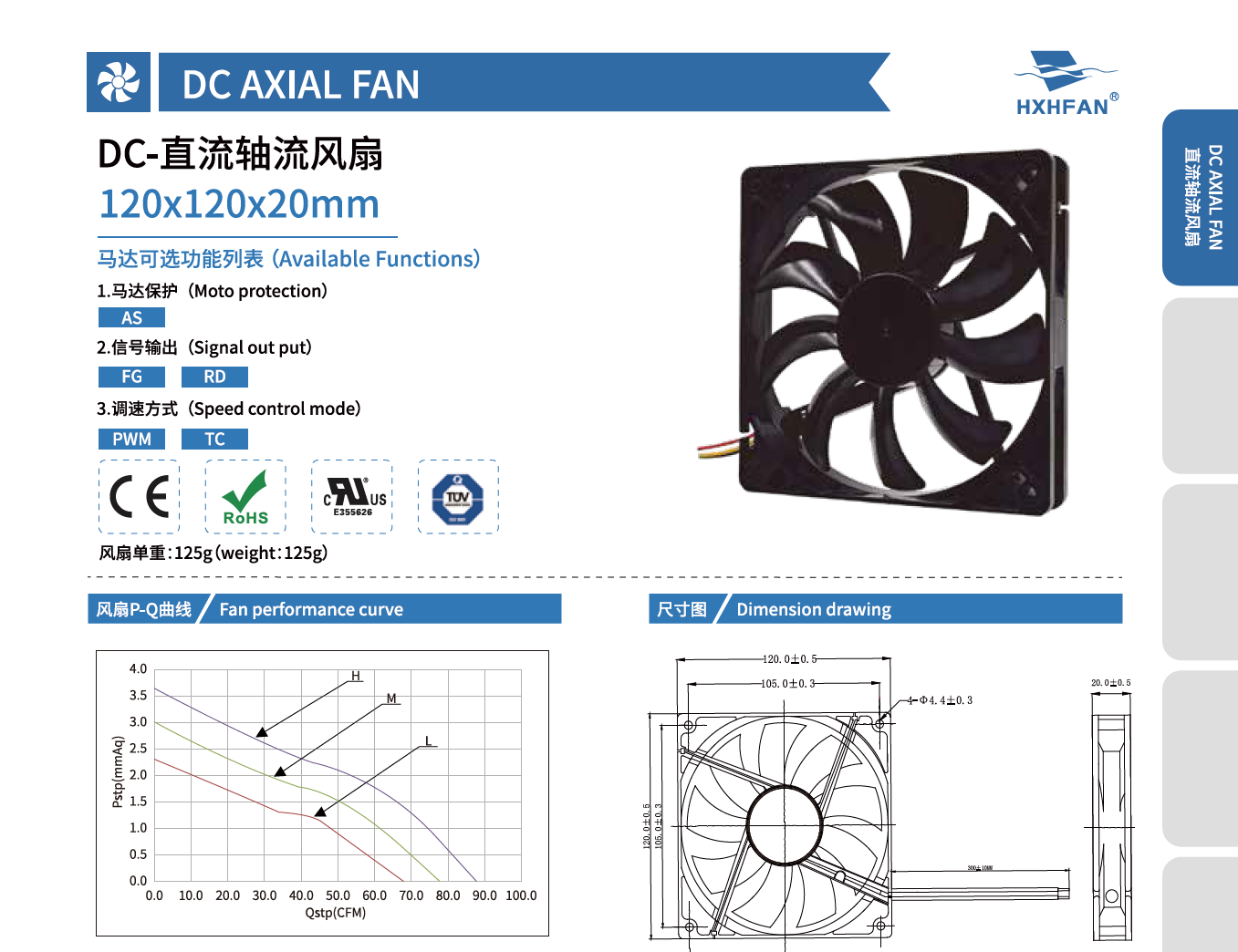

| 120*120*20MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDS1212HC | -A | Sleeve | 12 | 5.0 | 0.35 | 4.20 | 2600 | 3.18 | 112.50 | 7.13 | 0.28 | 35.6 |
| HDS1212MC | 5.0 | 0.25 | 3.00 | 2300 | 2.88 | 101.80 | 5.22 | 0.21 | 32.4 | |||
| HDS1212LC | 5.0 | 0.20 | 2.40 | 2000 | 2.49 | 87.90 | 4.13 | 0.16 | 28.1 | |||
| HDB1212HC | -A | Ball | 5.0 | 0.35 | 4.20 | 2600 | 3.18 | 112.50 | 7.13 | 0.28 | 35.6 | |
| HDB1212MC | 5.0 | 0.25 | 3.00 | 2300 | 2.88 | 101.80 | 5.22 | 0.21 | 32.4 | |||
| HDB1212LC | 5.0 | 0.20 | 2.40 | 2000 | 2.49 | 87.90 | 4.13 | 0.16 | 28.1 | |||
| HDS1224HC | Sleeve | 24 | 12.0 | 0.17 | 4.08 | 2600 | 3.18 | 112.50 | 7.13 | 0.28 | 35.6 | |
| HDS1224MC | 12.0 | 0.13 | 3.12 | 2300 | 2.88 | 101.80 | 5.22 | 0.21 | 32.4 | |||
| HDS1224LC | 12.0 | 0.08 | 1.92 | 2000 | 2.49 | 87.90 | 4.13 | 0.16 | 28.1 | |||
| HDB1224HC | Ball | 12.0 | 0.17 | 4.08 | 2600 | 3.18 | 112.50 | 7.13 | 0.28 | 35.6 | ||
| HDB1224MC | 12.0 | 0.13 | 3.12 | 2300 | 2.88 | 101.80 | 5.22 | 0.21 | 32.4 | |||
| HDB1224LC | 12.0 | 0.08 | 1.92 | 2000 | 2.49 | 87.90 | 4.13 | 0.16 | 28.1 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
