产品描述

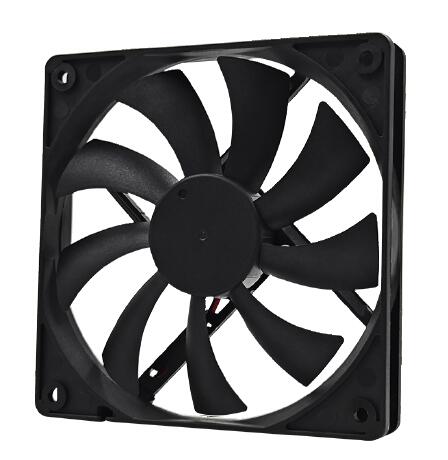

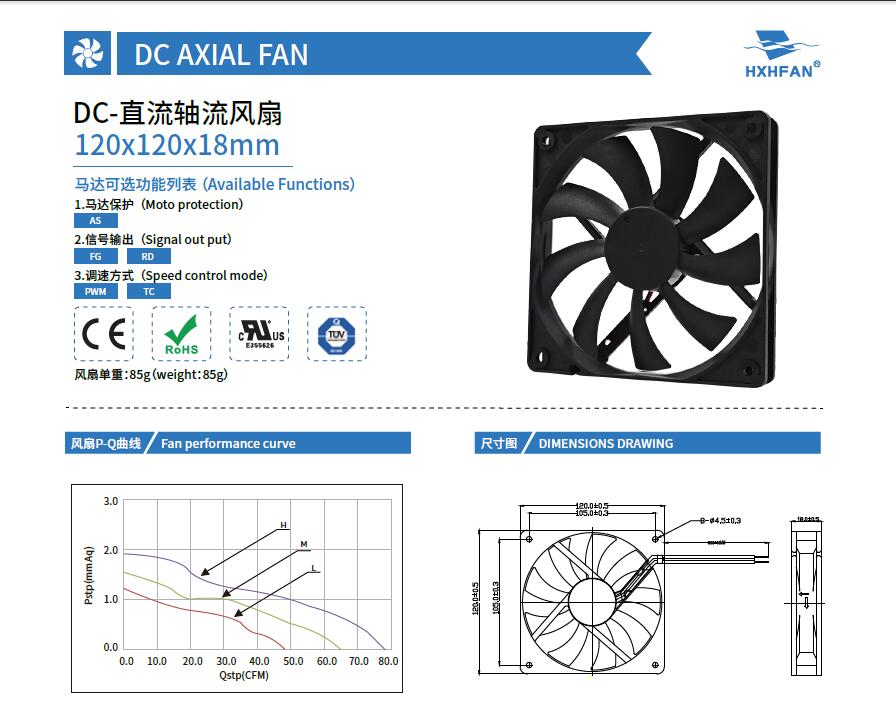

| 120×120×18MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDS1212HD | -A | Sleeve | 12 | 5.0 | 0.40 | 4.80 | 2500 | 2.21 | 78.23 | 3.08 | 0.12 | 40.9 |
| HDS1212MD | 5.0 | 0.25 | 3.00 | 2000 | 1.79 | 63.26 | 2.19 | 0.09 | 35.2 | |||
| HDS1212LD | 5.0 | 0.15 | 1.80 | 1500 | 1.30 | 46.05 | 1.29 | 0.05 | 27.9 | |||
| HDB1212HD | -A | Ball | 5.0 | 0.40 | 4.80 | 2500 | 2.21 | 78.23 | 3.08 | 0.12 | 40.9 | |
| HDB1212MD | 5.0 | 0.25 | 3.00 | 2000 | 1.79 | 63.26 | 2.19 | 0.09 | 35.2 | |||
| HDB1212LD | 5.0 | 0.15 | 1.80 | 1500 | 1.30 | 46.05 | 1.29 | 0.05 | 27.9 | |||
| HDS1224HD | Sleeve | 24 | 12.0 | 0.20 | 4.80 | 2500 | 2.21 | 78.23 | 3.08 | 0.12 | 40.9 | |
| HDS1224MD | 12.0 | 0.13 | 3.12 | 2000 | 1.79 | 63.26 | 2.19 | 0.09 | 35.2 | |||
| HDS1224LD | 12.0 | 0.08 | 1.92 | 1500 | 1.30 | 46.05 | 1.29 | 0.05 | 27.9 | |||
| HDB1224HD | Ball | 12.0 | 0.20 | 4.80 | 2500 | 2.21 | 78.23 | 3.08 | 0.12 | 40.9 | ||
| HDB1224MD | 12.0 | 0.13 | 3.12 | 2000 | 1.79 | 63.26 | 2.19 | 0.09 | 35.2 | |||
| HDB1224LD | 12.0 | 0.08 | 1.92 | 1500 | 1.30 | 46.05 | 1.29 | 0.05 | 27.9 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
