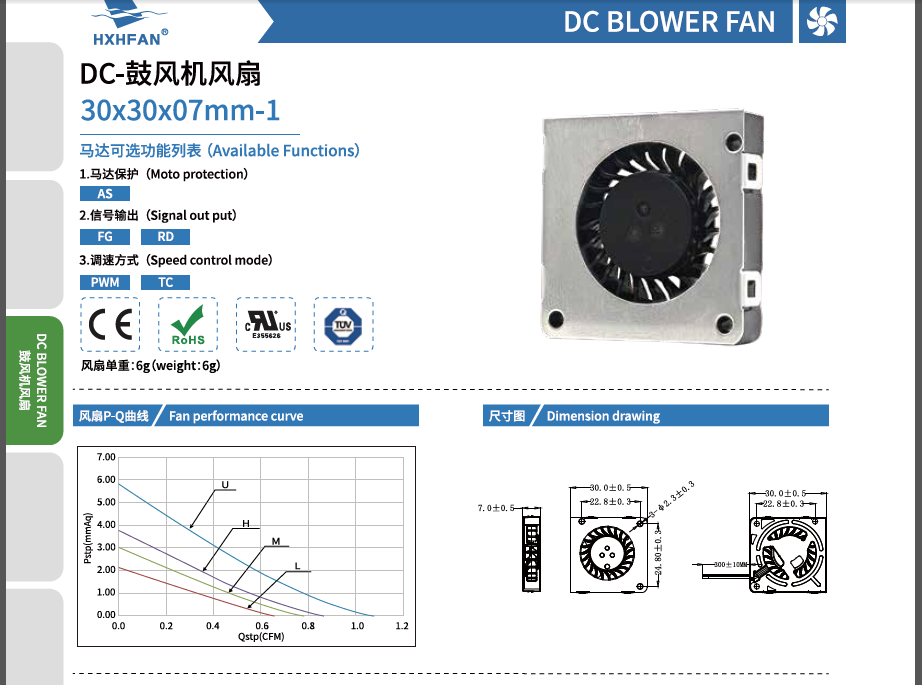

| 30×30×07MM-1 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBH0305UQ-1 | Hydraulic | 5 | 4.0 | 0.25 | 1.25 | 8500 | 0.03 | 1.08 | 5.82 | 0.23 | 25.6 | |
| HBH0305HQ-1 | 4.0 | 0.15 | 0.75 | 7500 | 0.02 | 0.86 | 3.76 | 0.15 | 21.9 | |||
| HBH0305MQ-1 | 4.0 | 0.10 | 0.50 | 6500 | 0.02 | 0.78 | 3.00 | 0.12 | 21.9 | |||
| HBH0305LQ-1 | 4.0 | 0.06 | 0.30 | 5500 | 0.02 | 0.65 | 2.13 | 0.08 | 18.8 | |||
| HBH0312UQ-1 | Hydraulic | 12 | 6.0 | 0.15 | 1.80 | 8500 | 0.03 | 1.08 | 5.82 | 0.23 | 25.6 | |
| HBH0312HQ-1 | 6.0 | 0.12 | 1.44 | 7500 | 0.02 | 0.86 | 3.76 | 0.15 | 21.9 | |||
| HBH0312MQ-1 | 6.0 | 0.09 | 1.08 | 6500 | 0.02 | 0.78 | 3.00 | 0.12 | 21.9 | |||
| HBH0312LQ-1 | 6.0 | 0.06 | 0.72 | 5500 | 0.02 | 0.65 | 2.13 | 0.08 | 18.8 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
