产品描述

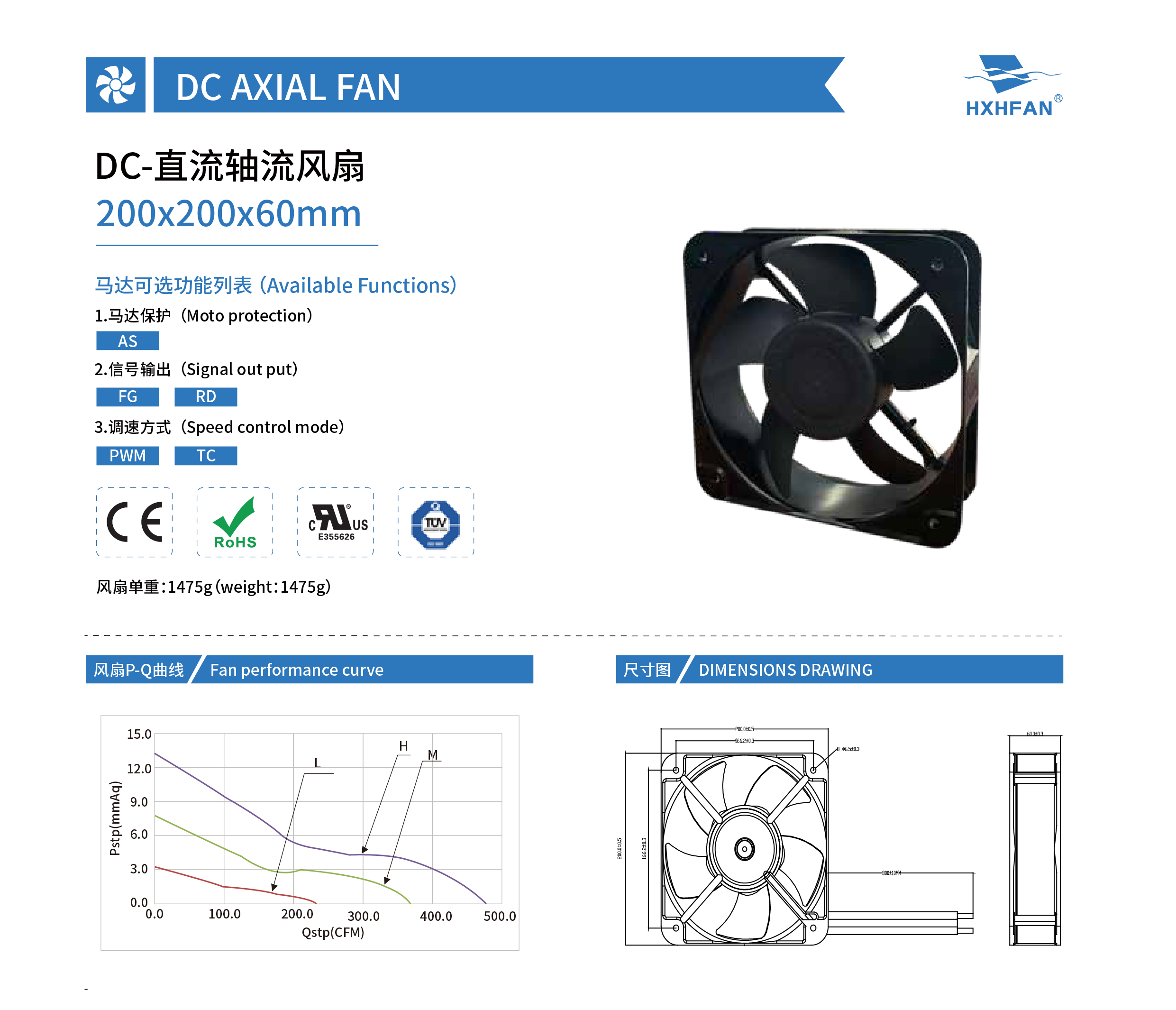

| 200×200×60MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB20024HW | -A | Ball | 24 | 18.0 | 1.46 | 35.04 | 2600 | 13.51 | 477.40 | 13.20 | 0.52 | 59.0 |
| HDB20024MW | -A | Ball | 18.0 | 0.66 | 15.84 | 2000 | 10.39 | 367.30 | 7.80 | 0.31 | 52.0 | |
| HDB20024LW | -A | Ball | 18.0 | 0.17 | 4.08 | 1260 | 6.56 | 231.90 | 3.10 | 0.12 | 40.0 | |
| HDB20048HW | -A | Ball | 48 | 24.0 | 0.73 | 35.04 | 2600 | 13.51 | 477.40 | 13.20 | 0.52 | 59.0 |
| HDB20048MW | -A | Ball | 24.0 | 0.33 | 15.84 | 2000 | 10.39 | 367.30 | 7.80 | 0.31 | 52.0 | |
| HDB20048LW | -A | Ball | 24.0 | 0.08 | 3.84 | 1260 | 6.56 | 231.90 | 3.10 | 0.12 | 40.0 | |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
关于我们
获得最新报价
200x200x60mm
MOQ：
价格：
