93×93×30-2MM
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M³/min	CFM	mmH₂O	INH₂O	dBA
HBS9312HZ-2	-A	Sleeve	12	5.0	0.90	10.80	4000	0.83	29.20	25.60	1.01	52.4
HBS9312MZ-2	-A			5.0	0.60	7.20	3000	0.53	18.90	15.30	0.60	46.8
HBS9312LZ-2	-A			5.0	0.20	2.40	2000	0.38	13.50	6.50	0.26	35.8
HBB9312HZ-2	-A	Ball		5.0	0.90	10.80	4000	0.83	29.20	25.60	1.01	52.4
HBB9312MZ-2	-A			5.0	0.60	7.20	3000	0.53	18.90	15.30	0.60	46.8
HBB9312LZ-2	-A			5.0	0.20	2.40	2000	0.38	13.50	6.50	0.26	35.8
HBS9324HZ-2	-A	Sleeve	24	12.0	0.43	10.32	4000	0.83	29.20	25.60	1.01	52.4
HBS9324MZ-2	-A			12.0	0.31	7.44	3000	0.53	18.90	15.30	0.60	46.8
HBS9324LZ-2	-A			12.0	0.12	2.88	2000	0.38	13.50	6.50	0.26	35.8
HBB9324HZ-2	-A	Ball		12.0	0.43	10.32	4000	0.83	29.20	25.60	1.01	52.4
HBB9324MZ-2	-A			12.0	0.31	7.44	3000	0.53	18.90	15.30	0.60	46.8
HBB9324LZ-2	-A			12.0	0.12	2.88	2000	0.38	13.50	6.50	0.26	35.8
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing

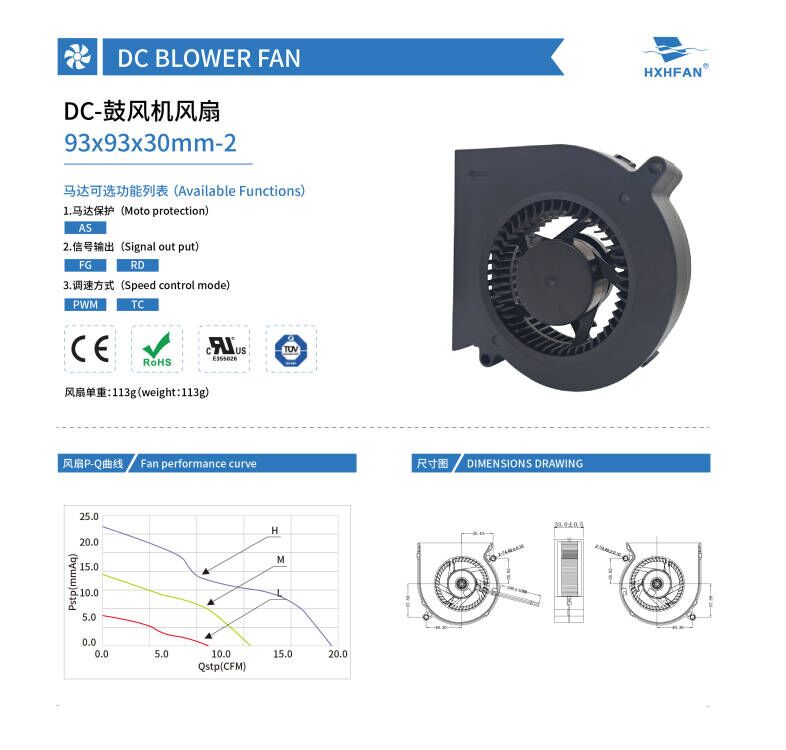

93x93x30mm-2

DC-轴流风扇
