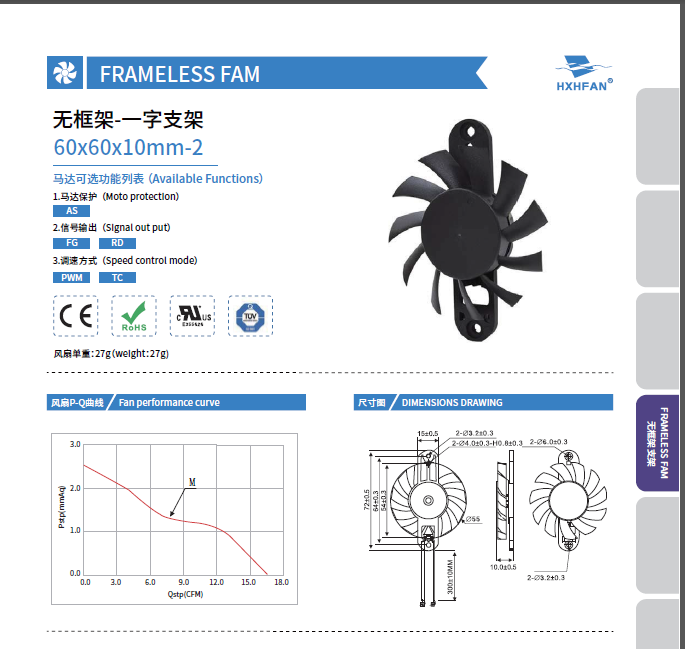

60x60x10-2mm | ||||||||||||
Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
HYB0612MG-2 | Two Ball | 12 | 6.0 | 0.20 | 2.40 | 4200 | 0.47 | 16.64 | 2.55 | 0.10 | 27.0 | |
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing |
