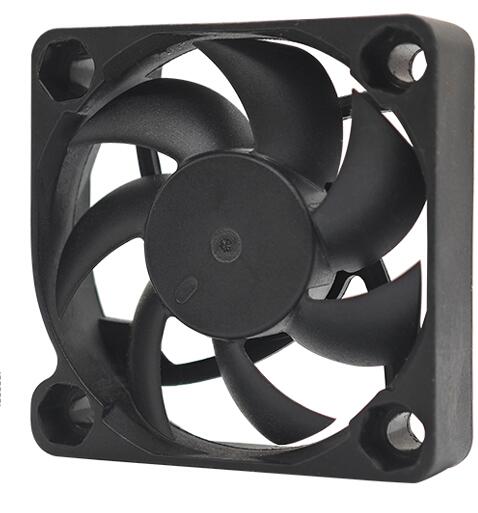

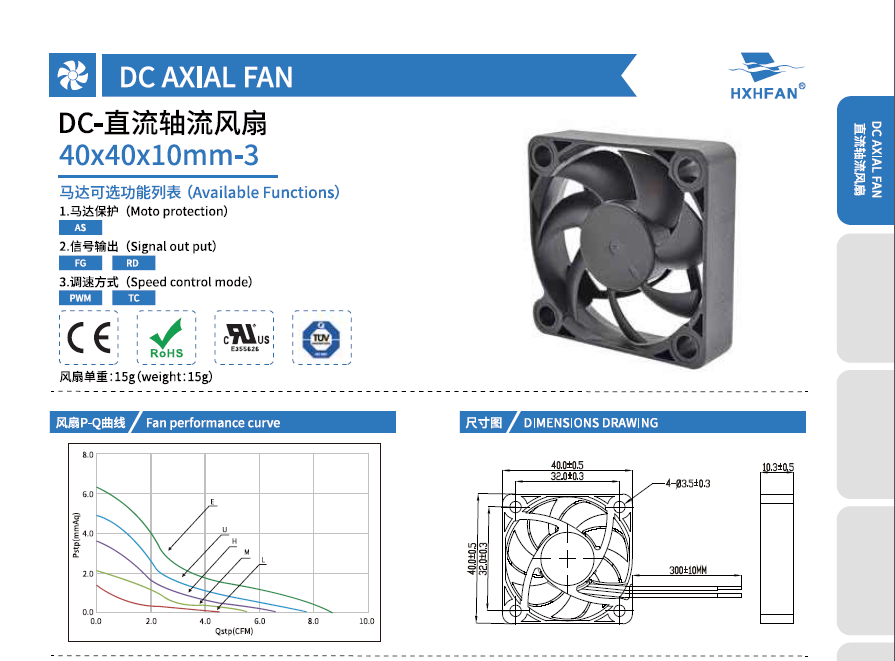

| 40*40*10mm-3 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDH0405UG-3 | Hydraulic | 5 | 4.0 | 0.22 | 1.10 | 7000 | 0.22 | 7.76 | 4.88 | 0.19 | 28.8 | |
| HDH0405HG-3 | 4.0 | 0.17 | 0.85 | 6000 | 0.19 | 6.64 | 3.57 | 0.14 | 23.4 | |||
| HDH0405MG-3 | 4.0 | 0.11 | 0.55 | 5000 | 0.16 | 5.56 | 2.06 | 0.08 | 20.6 | |||
| HDH0405LG-3 | 4.5 | 0.08 | 0.40 | 4000 | 0.13 | 4.45 | 1.32 | 0.05 | 19.5 | |||
| HDB0405UG-3 | Ball | 4.0 | 0.22 | 1.10 | 7000 | 0.22 | 7.76 | 4.88 | 0.19 | 28.8 | ||
| HDB0405HG-3 | 4.0 | 0.17 | 0.85 | 6000 | 0.19 | 6.64 | 3.57 | 0.14 | 23.4 | |||
| HDB0405MG-3 | 4.0 | 0.11 | 0.55 | 5000 | 0.16 | 5.56 | 2.06 | 0.08 | 20.6 | |||
| HDB0405LG-3 | 4.5 | 0.08 | 0.40 | 4000 | 0.13 | 4.45 | 1.32 | 0.05 | 19.5 | |||
| HDH0412EG-3 | Hydraulic | 12 | 7.0 | 0.15 | 1.80 | 8000 | 0.25 | 8.72 | 6.29 | 0.25 | 32.9 | |
| HDH0412UG-3 | 7.0 | 0.12 | 1.44 | 7000 | 0.22 | 7.76 | 4.88 | 0.19 | 28.8 | |||
| HDH0412HG-3 | 9.0 | 0.10 | 1.20 | 6000 | 0.19 | 6.64 | 3.57 | 0.14 | 23.4 | |||
| HDH0412MG-3 | 9.0 | 0.08 | 0.96 | 5000 | 0.16 | 5.56 | 2.06 | 0.08 | 20.6 | |||
| HDH0412LG-3 | 9.0 | 0.07 | 0.84 | 4000 | 0.13 | 4.45 | 1.32 | 0.05 | 19.5 | |||
| HDB0412EG-3 | Ball | 7.0 | 0.15 | 1.80 | 8000 | 0.25 | 8.72 | 6.29 | 0.25 | 32.9 | ||
| HDB0412UG-3 | 7.0 | 0.12 | 1.44 | 7000 | 0.22 | 7.76 | 4.88 | 0.19 | 28.8 | |||
| HDB0412HG-3 | 9.0 | 0.10 | 1.20 | 6000 | 0.19 | 6.64 | 3.57 | 0.14 | 23.4 | |||
| HDB0412MG-3 | 9.0 | 0.08 | 0.96 | 5000 | 0.16 | 5.56 | 2.06 | 0.08 | 20.6 | |||
| HDB0412LG-3 | 9.0 | 0.07 | 0.84 | 4000 | 0.13 | 4.45 | 1.32 | 0.05 | 19.5 | |||
| HDH0424EG-3 | Hydraulic | 24 | 12.0 | 0.07 | 1.68 | 8000 | 0.25 | 8.72 | 6.29 | 0.25 | 32.9 | |
| HDH0424UG-3 | 12.0 | 0.06 | 1.44 | 7000 | 0.22 | 7.76 | 4.88 | 0.19 | 28.8 | |||
| HDH0424HG-3 | 12.0 | 0.05 | 1.20 | 6000 | 0.19 | 6.64 | 3.57 | 0.14 | 23.4 | |||
| HDH0424MG-3 | 12.0 | 0.04 | 0.96 | 5000 | 0.16 | 5.56 | 2.06 | 0.08 | 20.6 | |||
| HDH0424LG-3 | 12.0 | 0.03 | 0.72 | 4000 | 0.13 | 4.45 | 1.32 | 0.05 | 19.5 | |||
| HDB0424EG-3 | Ball | 12.0 | 0.07 | 1.68 | 8000 | 0.25 | 8.72 | 6.29 | 0.25 | 32.9 | ||
| HDB0424UG-3 | 12.0 | 0.06 | 1.44 | 7000 | 0.22 | 7.76 | 4.88 | 0.19 | 28.8 | |||
| HDB0424HG-3 | 12.0 | 0.05 | 1.20 | 6000 | 0.19 | 6.64 | 3.57 | 0.14 | 23.4 | |||
| HDB0424MG-3 | 12.0 | 0.04 | 0.96 | 5000 | 0.16 | 5.56 | 2.06 | 0.08 | 20.6 | |||
| HDB0424LG-3 | 12.0 | 0.03 | 0.72 | 4000 | 0.13 | 4.45 | 1.32 | 0.05 | 19.5 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
