产品描述

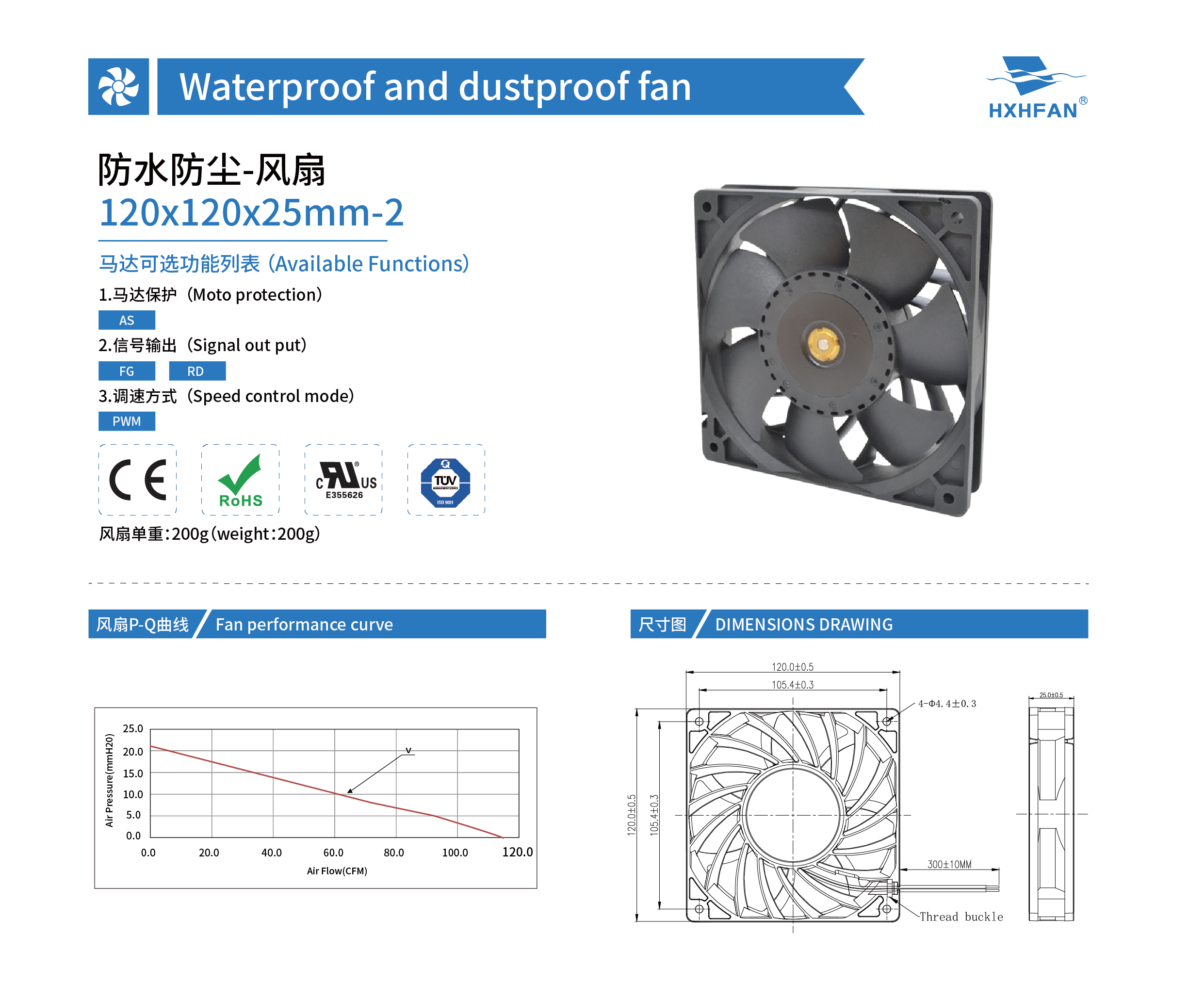

| 120×120×25mm-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB1212VA-2 | IP68 | Ball | 12 | 5.0 | 0.65 | 7.80 | 5500 | 3.25 | 114.70 | 21.10 | 0.83 | 55.5 |
| HDB1224VA-2 | IP68 | Ball | 24 | 12.0 | 0.40 | 9.60 | 5500 | 3.25 | 114.70 | 21.10 | 0.83 | 55.5 |
| HDB1248UA-2 | IP68 | Ball | 48 | 24.0 | 0.25 | 12.00 | 5500 | 3.25 | 114.70 | 21.10 | 0.83 | 55.5 |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
关于我们
获得最新报价

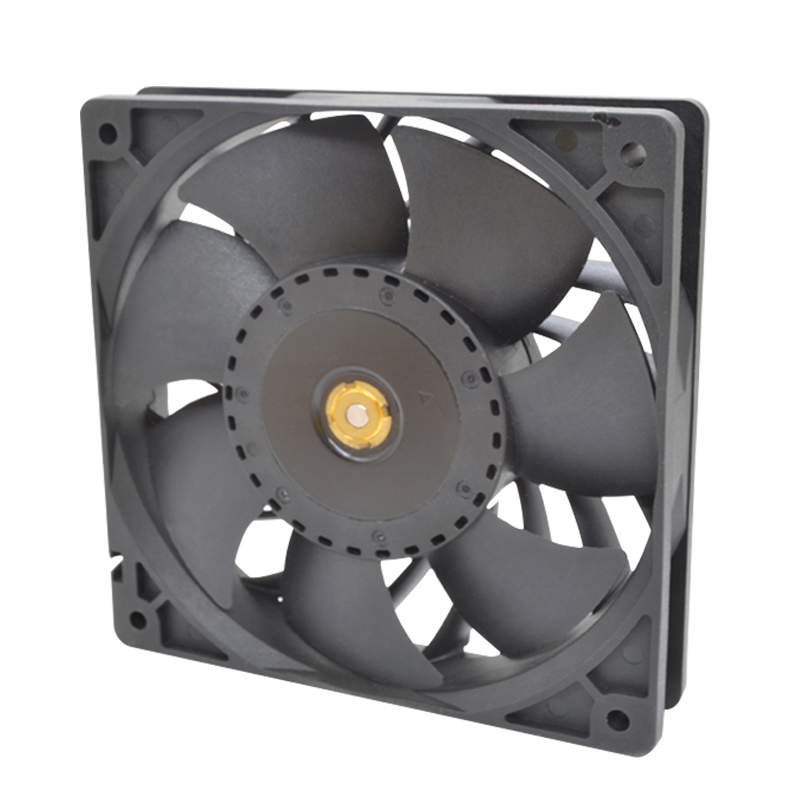

120x120x25mm-2
MOQ：
价格：
