产品描述

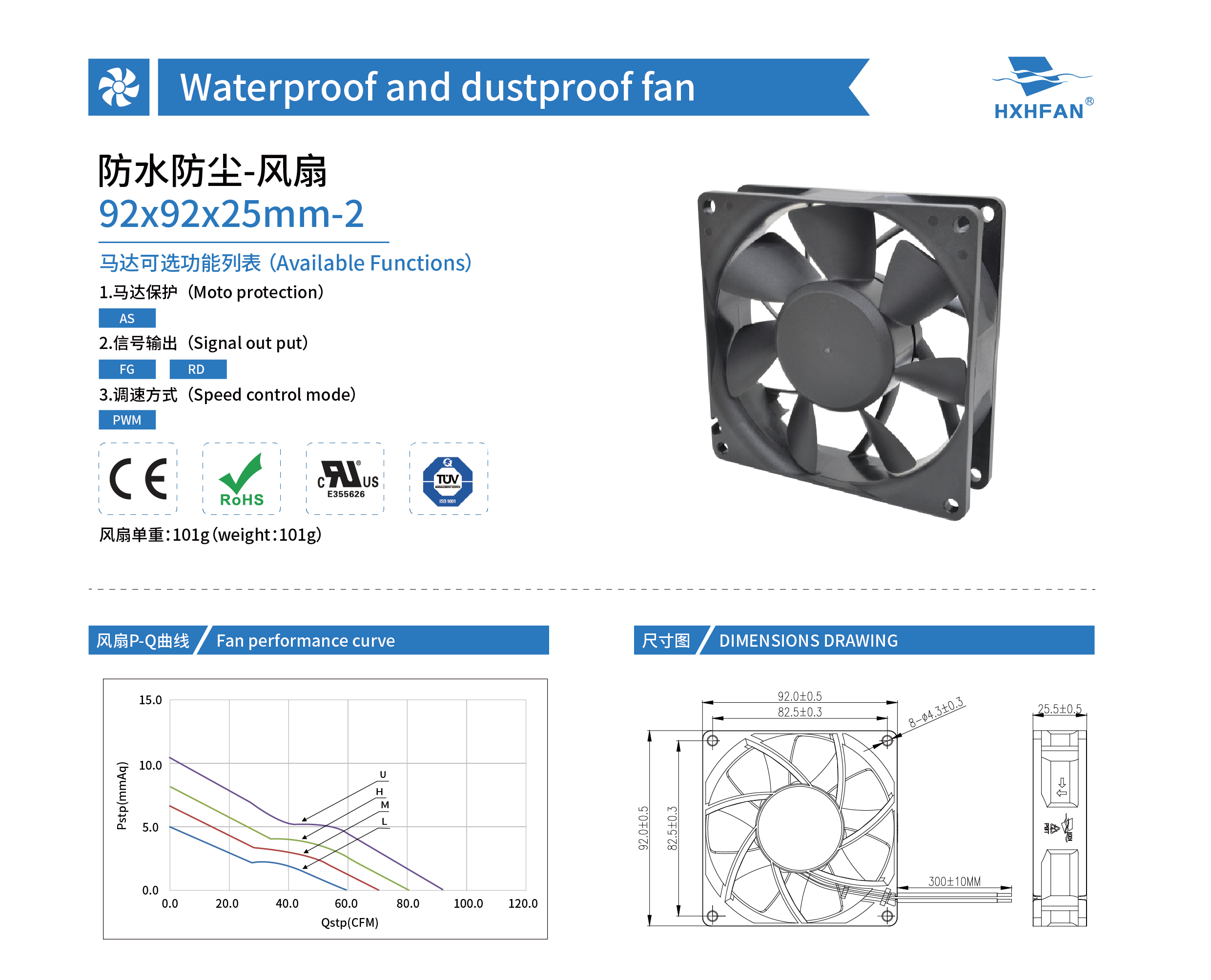

| 92×92×25mm-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB0912UA-2 | IP68 | Ball | 12 | 6.0 | 0.70 | 8.40 | 4500 | 2.60 | 91.98 | 10.42 | 0.41 | 50.0 |
| HDB0912HA-2 | IP68 | 6.0 | 0.55 | 6.60 | 4000 | 2.28 | 80.62 | 8.11 | 0.32 | 45.5 | ||
| HDB0912MA-2 | IP68 | 9.0 | 0.40 | 4.80 | 3500 | 2.00 | 70.62 | 6.59 | 0.26 | 40.3 | ||
| HDB0912LA-2 | IP68 | 9.0 | 0.25 | 3.00 | 3000 | 1.70 | 60.04 | 4.98 | 0.20 | 37.1 | ||
| HDB0924UA-2 | IP68 | Ball | 24 | 12.0 | 0.35 | 8.40 | 4500 | 2.60 | 91.98 | 10.42 | 0.41 | 50.0 |
| HDB0924HA-2 | IP68 | 12.0 | 0.25 | 6.00 | 4000 | 2.28 | 80.62 | 8.11 | 0.32 | 45.5 | ||
| HDB0924MA-2 | IP68 | 18.0 | 0.15 | 3.60 | 3500 | 2.00 | 70.62 | 6.90 | 0.26 | 40.3 | ||
| HDB0924LA-2 | IP68 | 18.0 | 0.09 | 2.16 | 3000 | 1.70 | 60.04 | 4.98 | 0.20 | 37.1 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
