产品描述
| 120×120×25MM-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HYH1212HA-2 | Hydraulic | 12 | 6.0 | 0.32 | 3.84 | 2300 | 2.19 | 77.30 | 3.25 | 0.13 | 42.0 | |
| HYH1212MA-2 | 6.0 | 0.24 | 2.88 | 2000 | 1.73 | 61.09 | 2.14 | 0.08 | 39.5 | |||
| HYH1212LA-2 | 6.0 | 0.18 | 2.16 | 1700 | 1.62 | 57.31 | 1.60 | 0.06 | 37.5 | |||
| HYB1212HA-2 | Ball | 6.0 | 0.32 | 3.84 | 2300 | 2.19 | 77.30 | 3.25 | 0.13 | 42.0 | ||
| HYB1212MA-2 | 6.0 | 0.24 | 2.88 | 2000 | 1.73 | 61.09 | 2.14 | 0.08 | 39.5 | |||
| HYB1212LA-2 | 6.0 | 0.18 | 2.16 | 1700 | 1.62 | 57.31 | 1.60 | 0.06 | 37.5 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
关于我们
获得最新报价

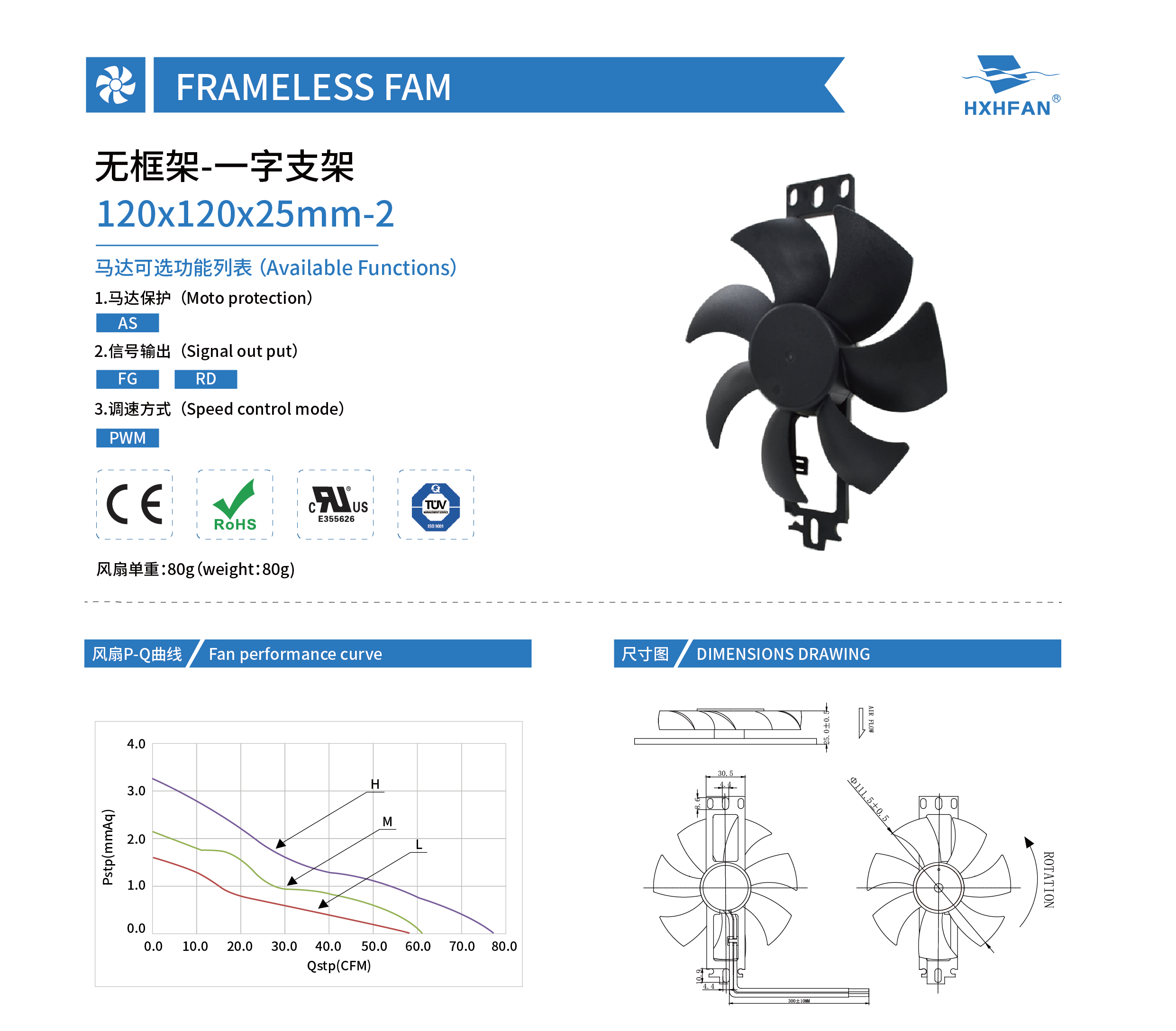

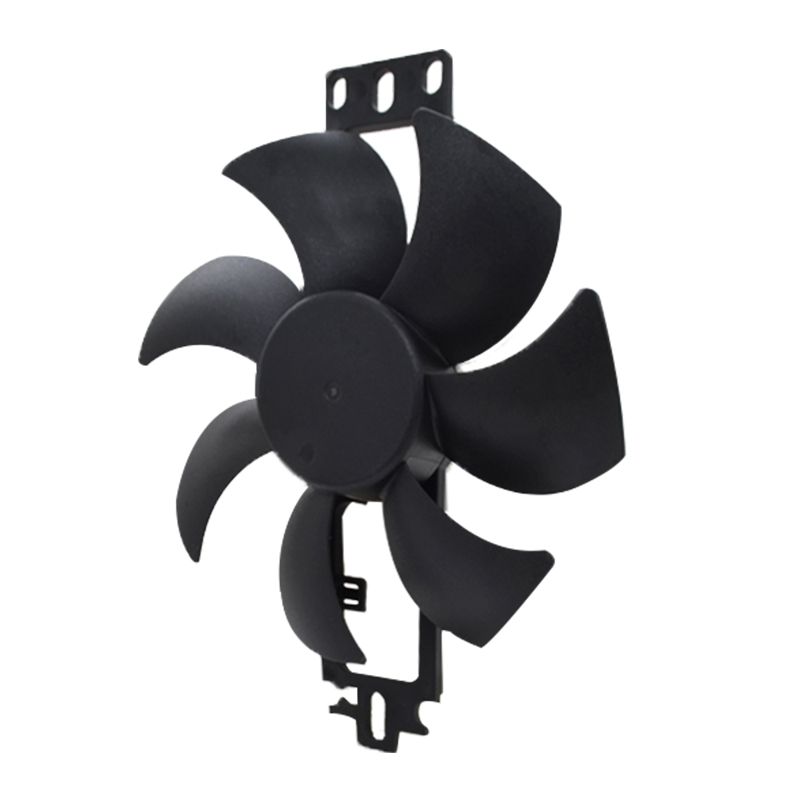

120x120x25mm-2
