产品描述

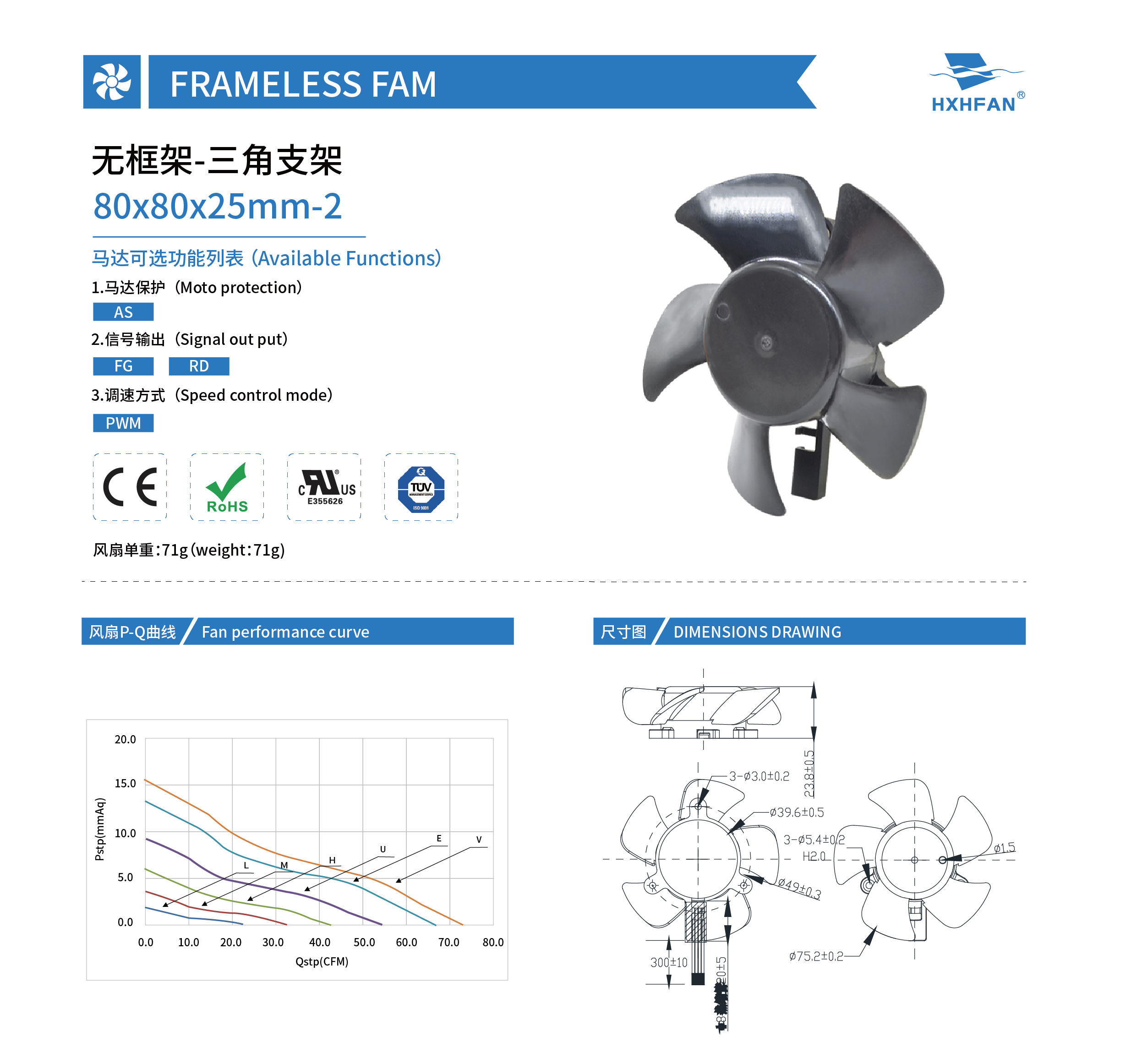

| 80x80x25mm-2 | |||||||||||||
| Frame Size(mm) | Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| 80x80x25mm-2 | HYB0812VA-2 | Ball | 12 | 6.0 | 0.85 | 10.20 | 6500 | 2.07 | 72.99 | 15.39 | 0.61 | 50.2 | |
| HYB0812EA-2 | 6.0 | 0.70 | 8.40 | 6000 | 1.89 | 66.91 | 13.19 | 0.52 | 46.5 | ||||
| HYB0812UA-2 | 6.0 | 0.55 | 6.60 | 5000 | 1.55 | 54.61 | 9.12 | 0.36 | 41.0 | ||||
| HYB0812HA-2 | 6.0 | 0.38 | 4.56 | 4000 | 1.20 | 42.58 | 5.86 | 0.23 | 35.8 | ||||
| HYB0812MA-2 | 9.0 | 0.28 | 3.36 | 3000 | 0.91 | 32.20 | 3.50 | 0.14 | 28.1 | ||||
| HYB0812LA-2 | 9.0 | 0.16 | 1.92 | 2000 | 0.64 | 22.64 | 1.82 | 0.07 | 18.4 | ||||
| HYB0824VA-2 | Ball | 24 | 12.0 | 0.55 | 13.20 | 6500 | 2.07 | 72.99 | 15.39 | 0.61 | 50.2 | ||
| HYB0824EA-2 | 12.0 | 0.40 | 9.60 | 6000 | 1.89 | 66.91 | 13.19 | 0.52 | 46.5 | ||||
| HYB0824UA-2 | 12.0 | 0.30 | 7.20 | 5000 | 1.55 | 54.61 | 9.12 | 0.36 | 41.0 | ||||
| HYB0824HA-2 | 12.0 | 0.14 | 3.36 | 4000 | 1.20 | 42.58 | 5.86 | 0.23 | 35.8 | ||||
| HYB0824MA-2 | 18.0 | 0.09 | 2.16 | 3000 | 0.91 | 32.20 | 3.50 | 0.14 | 28.1 | ||||
| HYB0824LA-2 | 18.0 | 0.06 | 1.44 | 2000 | 0.64 | 22.64 | 1.82 | 0.07 | 18.4 | ||||
