80×80×32MM
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M3/min	CFM	mmH2O	INH2O	dBA
HDB0812EY	-A	Ball	12	6.0	1.00	12.00	8000	2.77	97.91	22.44	0.88	54.9
HDB0812UY	-A			6.0	0.75	9.00	7000	2.42	85.47	18.76	0.74	51.9
HDB0812HY	-A			6.0	0.50	6.00	6000	2.06	72.72	14.27	0.56	46.6
HDB0812MY				6.0	0.40	4.80	5000	1.66	58.74	9.94	0.39	43.4
HDB0812LY				9.0	0.30	3.60	4000	1.35	47.75	6.95	0.27	36.4
HDB0824EY		Ball	24	12.0	0.55	13.20	8000	2.77	97.91	22.44	0.88	54.9
HDB0824UY	-A			12.0	0.40	9.60	7000	2.42	85.47	18.76	0.74	51.9
HDB0824HY	-A			12.0	0.30	7.20	6000	2.06	72.72	14.27	0.56	46.6
HDB0824MY	-A			18.0	0.20	4.80	5000	1.66	58.74	9.94	0.39	43.4
HDB0824LY				18.0	0.12	2.88	4000	1.35	47.75	6.95	0.27	36.4
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing

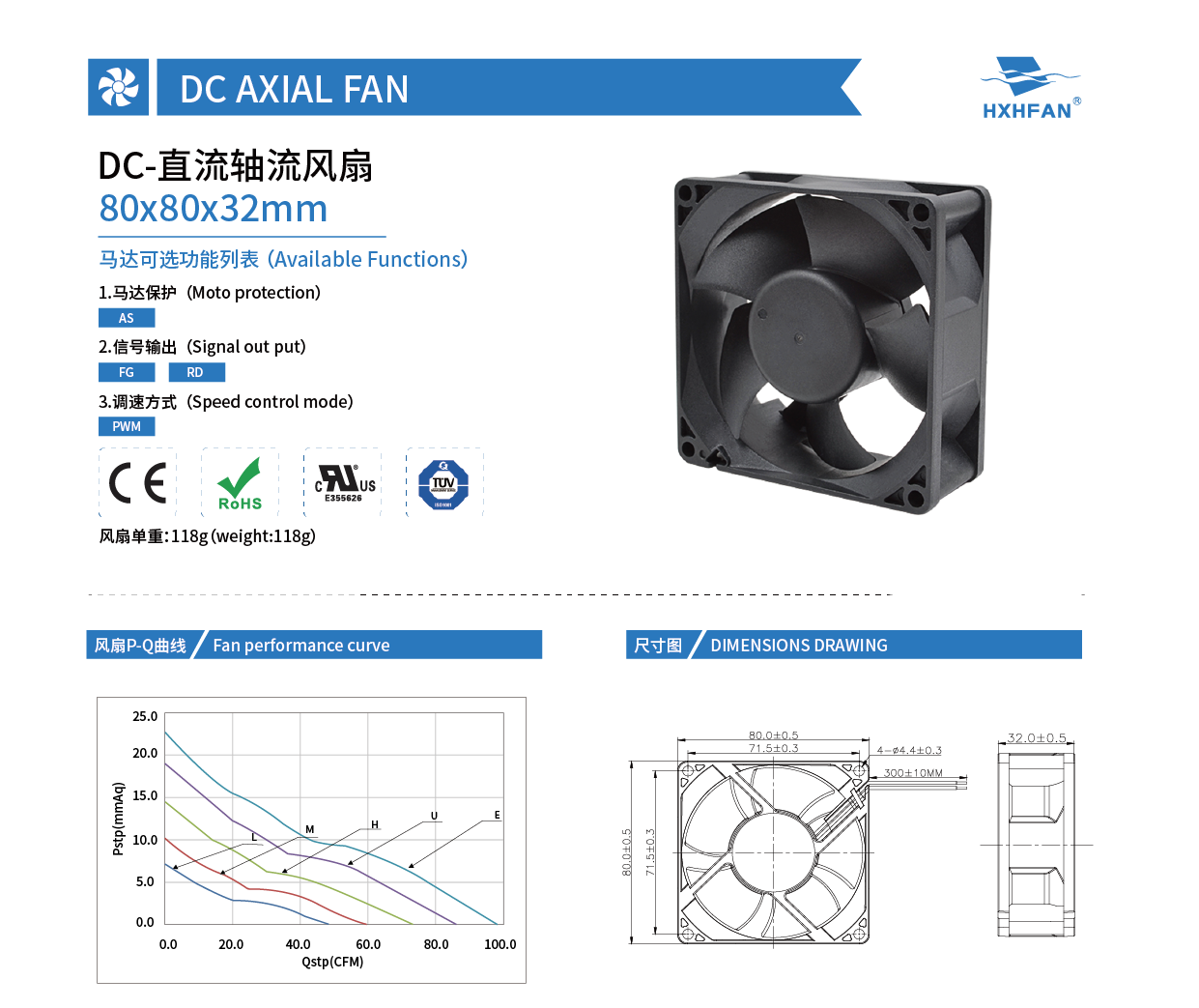

80x80x32mm

DC-轴流风扇
