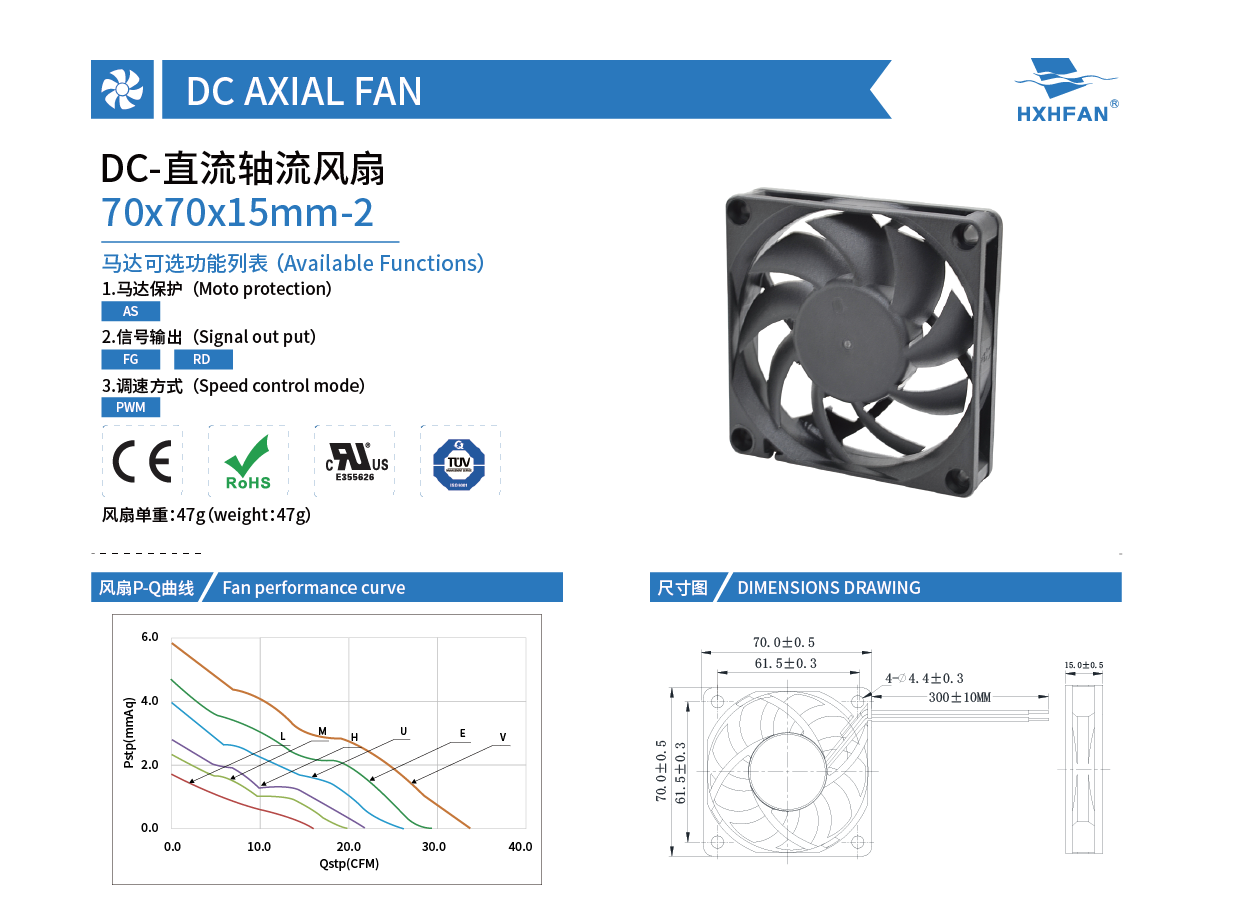

70×70×15mm-2
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M3/min	CFM	mmH2O	INH2O	dBA
HDH0712ED-2	-A	Hydraulic	12	6.0	0.26	3.12	4500	0.83	29.41	4.68	0.18	36.5
HDH0712UD-2	-A			6.0	0.22	2.64	4000	0.74	26.16	3.75	0.15	33.2
HDH0712HD-2				6.0	0.16	1.92	3500	0.62	21.89	2.78	0.11	31.3
HDH0712MD-2				9.0	0.11	1.32	3000	0.56	19.92	2.32	0.09	29.5
HDH0712LD-2				9.0	0.08	0.96	2500	0.45	16.08	1.68	0.07	28.3
HDB0712VD-2	-A	Ball		6.0	0.34	4.08	5000	0.95	33.69	5.83	0.23	38.4
HDB0712ED-2	-A			6.0	0.26	3.12	4500	0.83	29.41	4.68	0.18	36.5
HDB0712UD-2				6.0	0.22	2.64	4000	0.74	26.16	3.75	0.15	33.2
HDB0712HD-2				6.0	0.16	1.92	3500	0.62	21.89	2.78	0.11	31.3
HDB0712MD-2				9.0	0.11	1.32	3000	0.56	19.92	2.32	0.09	29.5
HDB0712LD-2				9.0	0.08	0.96	2500	0.45	16.08	1.68	0.07	28.3
HDH0724ED-2	-A	Hydraulic	24	12.0	0.18	2.16	4500	0.83	29.41	4.68	0.18	36.5
HDH0724UD-2	-A			12.0	0.16	1.92	4000	0.74	26.16	3.75	0.15	33.2
HDH0724HD-2				12.0	0.10	1.2	3500	0.62	21.89	2.78	0.11	31.3
HDH0724MD-2				18.0	0.08	0.96	3000	0.56	19.92	2.32	0.09	29.5
HDH0724LD-2				18.0	0.06	0.72	2500	0.45	16.08	1.68	0.07	28.3
HDB0724VD-2	-A	Ball		12.0	0.22	2.64	5000	0.95	33.69	5.83	0.23	38.4
HDB0724ED-2	-A			12.0	0.18	2.16	4500	0.83	29.41	4.68	0.18	36.5
HDB0724UD-2				12.0	0.16	1.92	4000	0.74	26.16	3.75	0.15	33.2
HDB0724HD-2				12.0	0.10	1.2	3500	0.62	21.89	2.78	0.11	31.3
HDB0724MD-2				18.0	0.08	0.96	3000	0.56	19.92	2.32	0.09	29.5
HDB0724LD-2				18.0	0.06	0.72	2500	0.45	16.08	1.68	0.07	28.3
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing

70x70x15mm-2

DC-轴流风扇
