产品描述

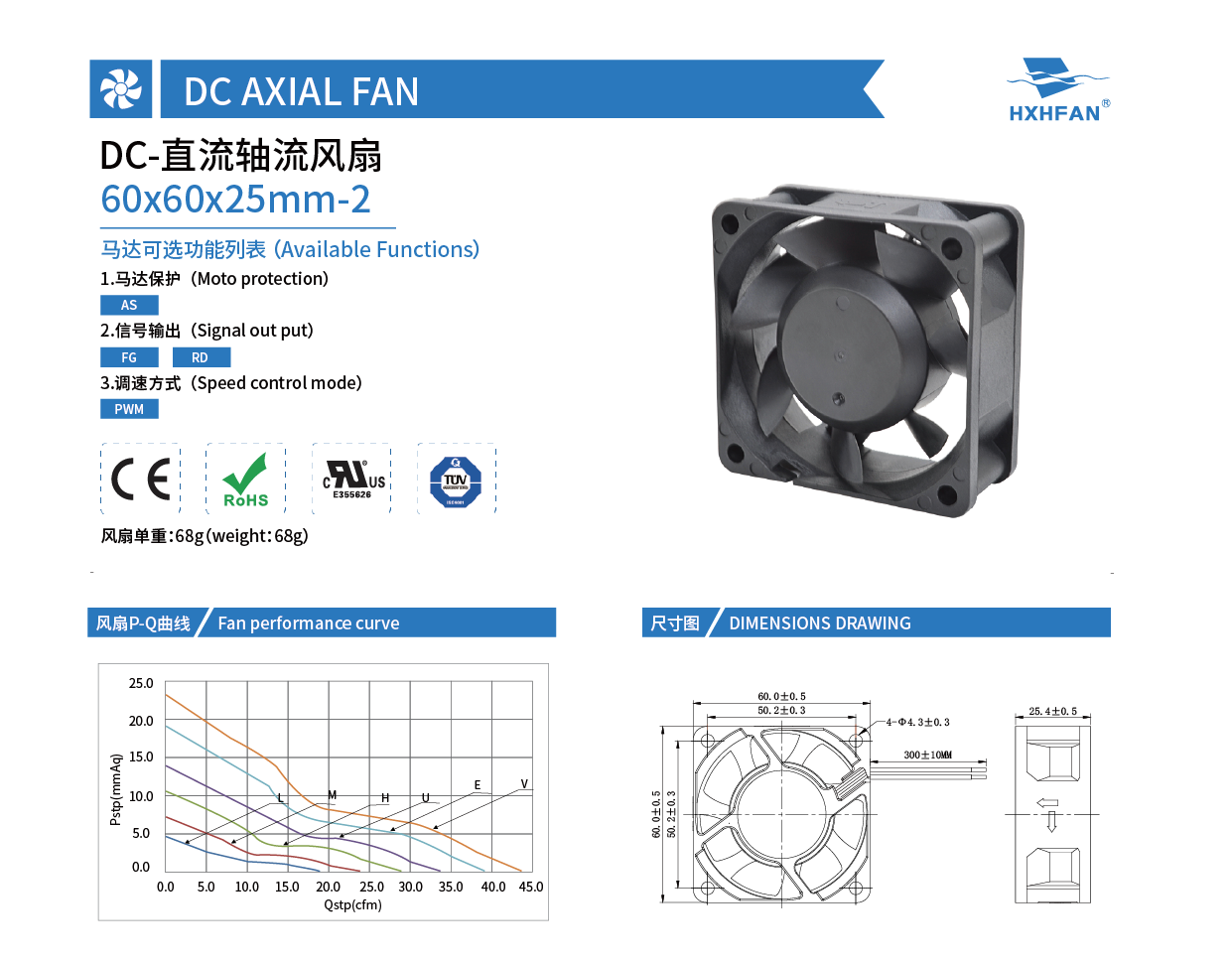

| 60×60×25MM-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB0612VA-2 | -A | Ball | 12 | 6.0 | 0.90 | 10.80 | 9000 | 1.23 | 43.40 | 22.61 | 0.89 | 52.3 |
| HDB0612EA-2 | -A | 6.0 | 0.70 | 8.40 | 8000 | 1.11 | 39.33 | 18.59 | 0.73 | 49.2 | ||
| HDB0612UA-2 | -A | 6.0 | 0.50 | 6.00 | 7000 | 0.95 | 33.61 | 13.53 | 0.53 | 44.7 | ||
| HDB0624VA-2 | -A | 24 | 12.0 | 0.60 | 14.40 | 9000 | 1.23 | 43.40 | 22.61 | 0.89 | 52.3 | |
| HDB0624EA-2 | -A | 12.0 | 0.45 | 10.80 | 8000 | 1.11 | 39.33 | 18.59 | 0.73 | 49.2 | ||
| HDB0624UA-2 | -A | 12.0 | 0.35 | 8.40 | 7000 | 0.95 | 33.61 | 13.53 | 0.53 | 44.7 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
关于我们
获得最新报价

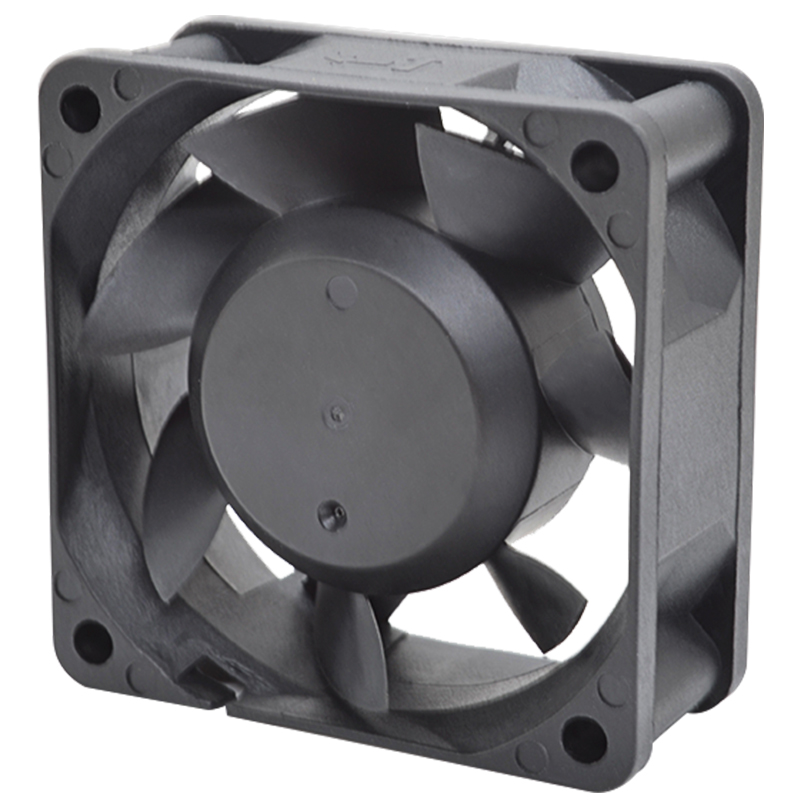

60x60x25mm-2
