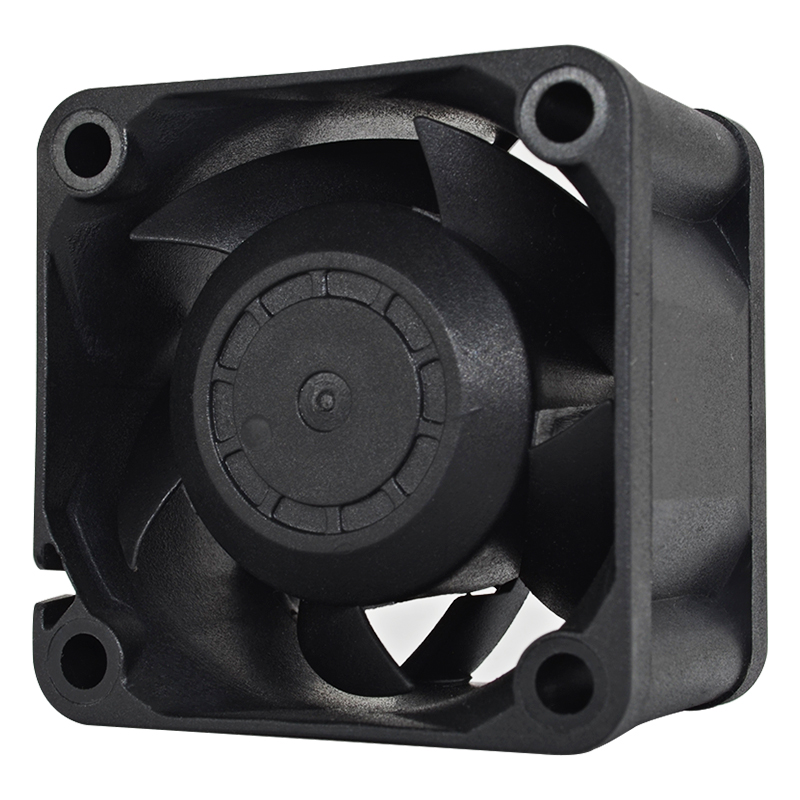

40×40×28MM-1
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M³/min	CFM	mmH₂O	INH₂O	dBA
HDB0412VB-1	-A	Ball	12	6.0	0.66	7.92	17000	0.62	22.05	32.82	1.29	54.5
HDB0412EB-1	-A			6.0	0.38	4.56	14000	0.53	18.81	24.61	0.97	50.1
HDB0412UB-1	-A			6.0	0.24	2.88	12000	0.45	16.02	17.77	0.70	46.3
HDB0412HB-1				6.0	0.21	2.52	10000	0.38	13.52	12.69	0.50	42.1
HDB0412MB-1				9.0	0.13	1.56	8500	0.32	11.29	9.13	0.36	35.8
HDB0412LB-1				9.0	0.11	1.32	7000	0.26	9.18	6.15	0.24	31.6
HDB0424VB-1	-A	Ball	24	18.0	0.45	10.80	17000	0.62	22.05	32.82	1.29	54.5
HDB0424EB-1	-A			18.0	0.30	7.20	14000	0.53	18.81	24.61	0.97	50.1
HDB0424UB-1	-A			18.0	0.21	5.04	12000	0.45	16.02	17.77	0.70	46.3
HDB0424HB-1				18.0	0.15	3.60	10000	0.38	13.52	12.69	0.50	42.1
HDB0424MB-1				18.0	0.10	2.40	8500	0.32	11.29	9.13	0.36	35.8
HDB0424LB-1				18.0	0.06	1.44	7000	0.26	9.18	6.15	0.24	31.6
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing

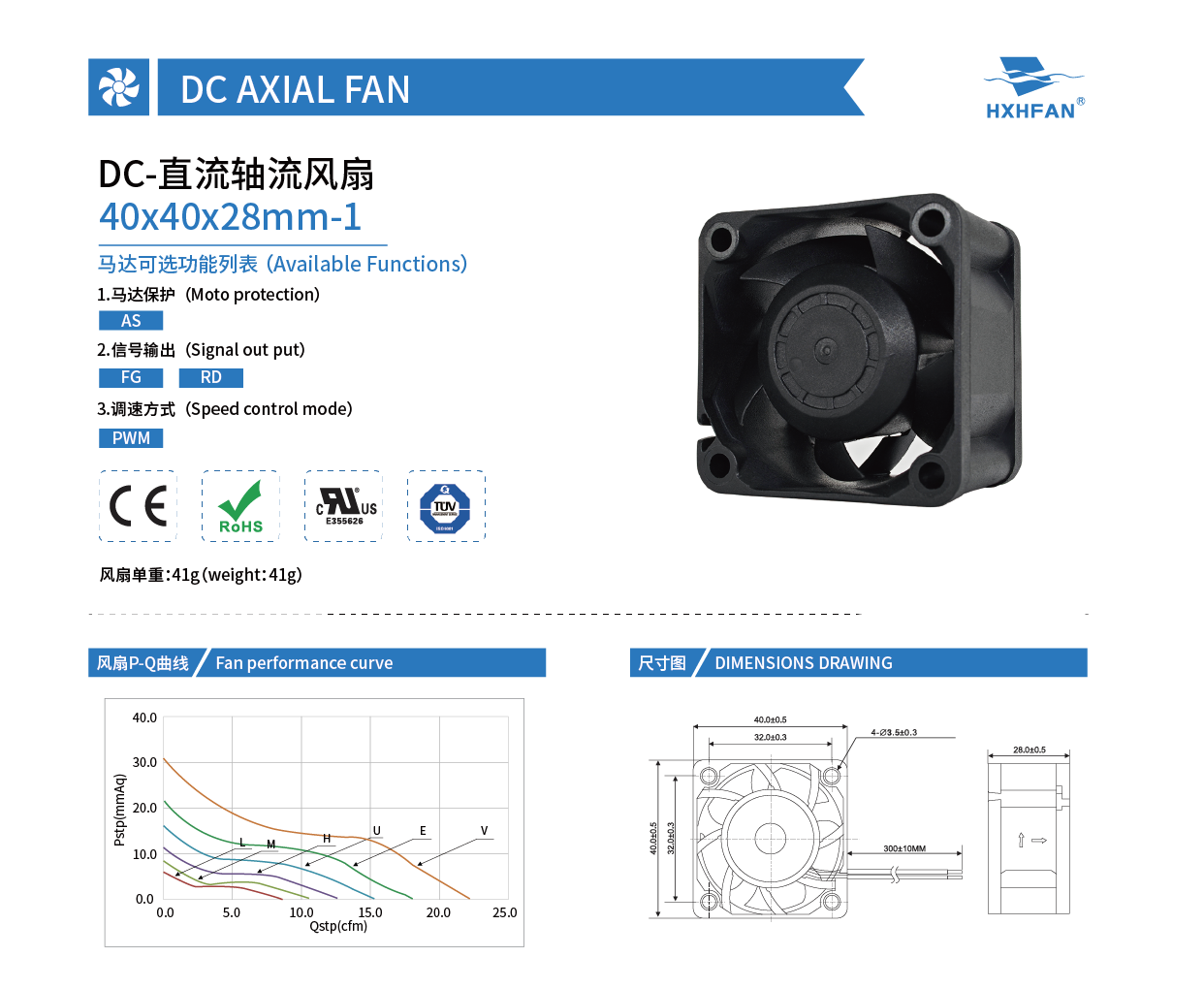

40x40x28mm-1

DC-轴流风扇
