产品描述

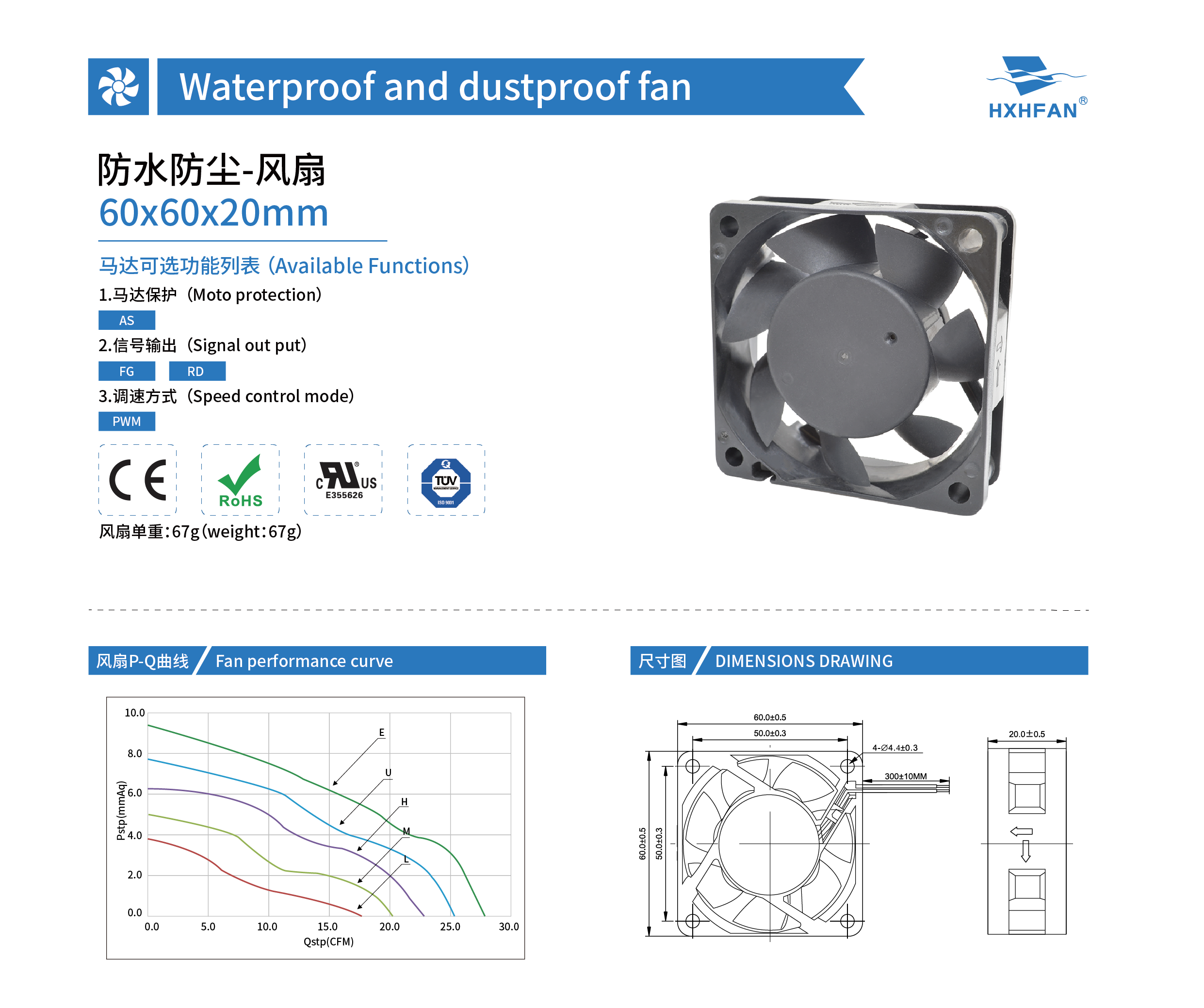

| 60×60×20mm | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB0612EC | IP68 | Ball | 12 | 6.0 | 0.27 | 3.24 | 5500 | 0.78 | 27.86 | 9.36 | 0.37 | 36.7 |
| HDB0612UC | IP68 | 6.0 | 0.23 | 2.76 | 5000 | 0.72 | 25.33 | 7.73 | 0.30 | 34.6 | ||
| HDB0612HC | IP68 | 6.0 | 0.18 | 2.16 | 4500 | 0.64 | 22.79 | 6.26 | 0.25 | 32.3 | ||
| HDB0612MC | IP68 | 6.0 | 0.15 | 1.80 | 4000 | 0.57 | 20.26 | 7.98 | 0.31 | 29.8 | ||
| HDB0612LC | IP68 | 6.0 | 0.12 | 1.44 | 3500 | 0.50 | 17.73 | 3.79 | 0.15 | 26.9 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
