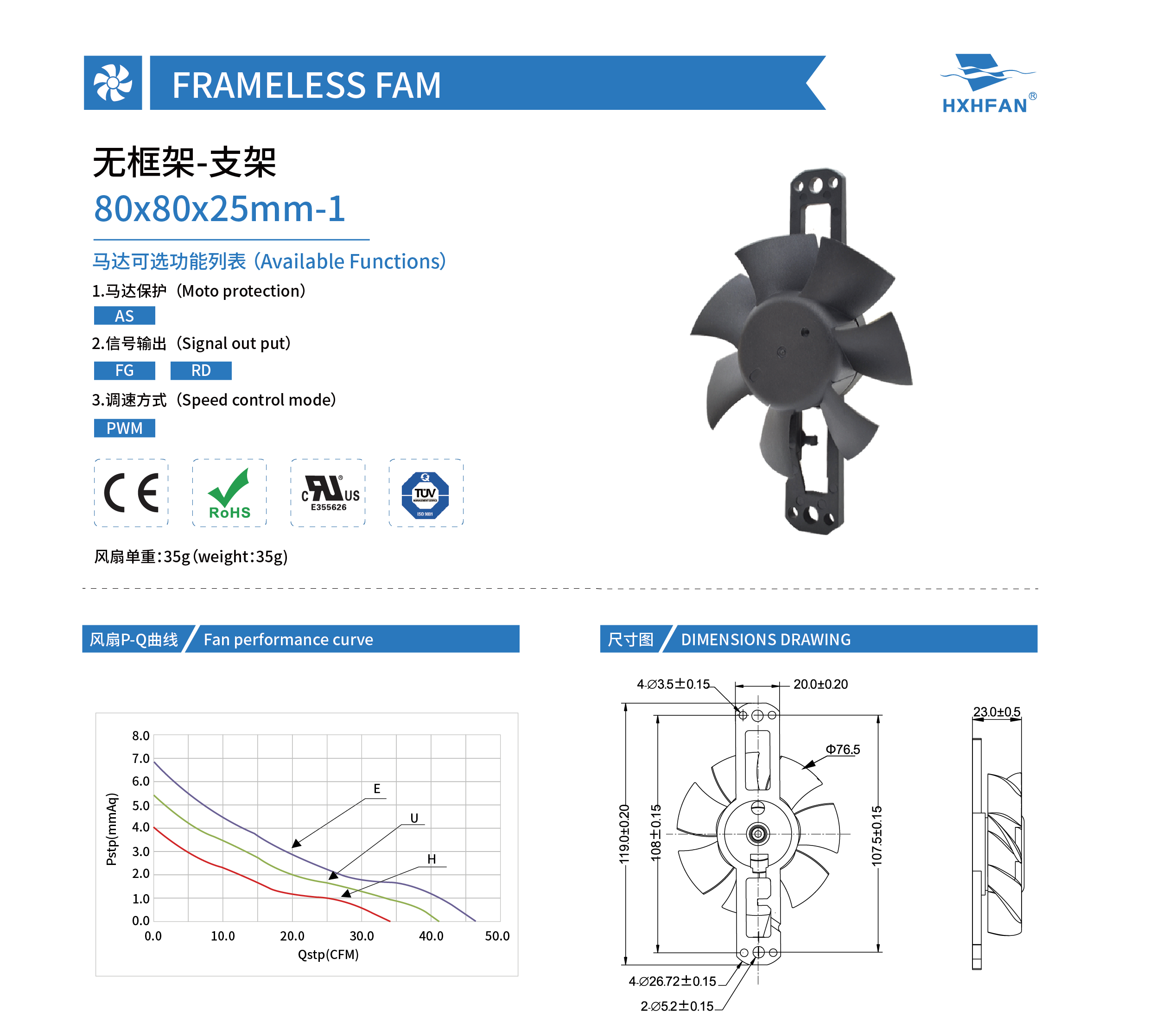

80x80x25mm-1 | |||||||||||||
Frame Size(mm) | Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
80x80x25mm-1 | HYB0812EA-1 | Sleeve /Ball | 12 | 6.0 | 0.38 | 4.56 | 4000 | 1.32 | 46.57 | 6.82 | 0.27 | 40.7 | |
HYB0812UA-1 | 6.0 | 0.28 | 3.36 | 3500 | 1.16 | 41.09 | 5.44 | 0.21 | 39.4 | ||||
HYB0812HA-1 | 6.0 | 0.23 | 2.76 | 3000 | 0.97 | 34.21 | 4.04 | 0.16 | 35.5 |
