产品描述

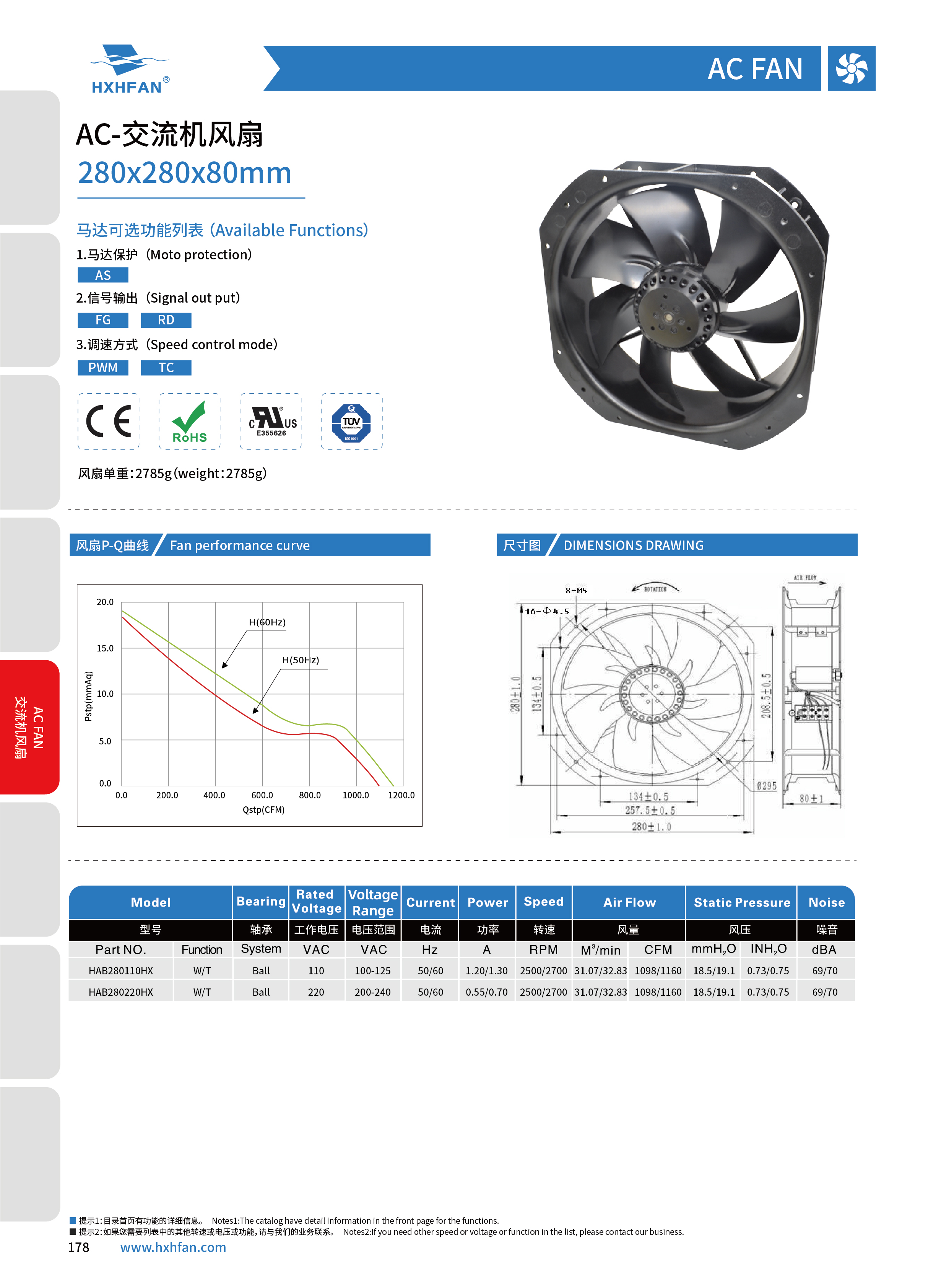

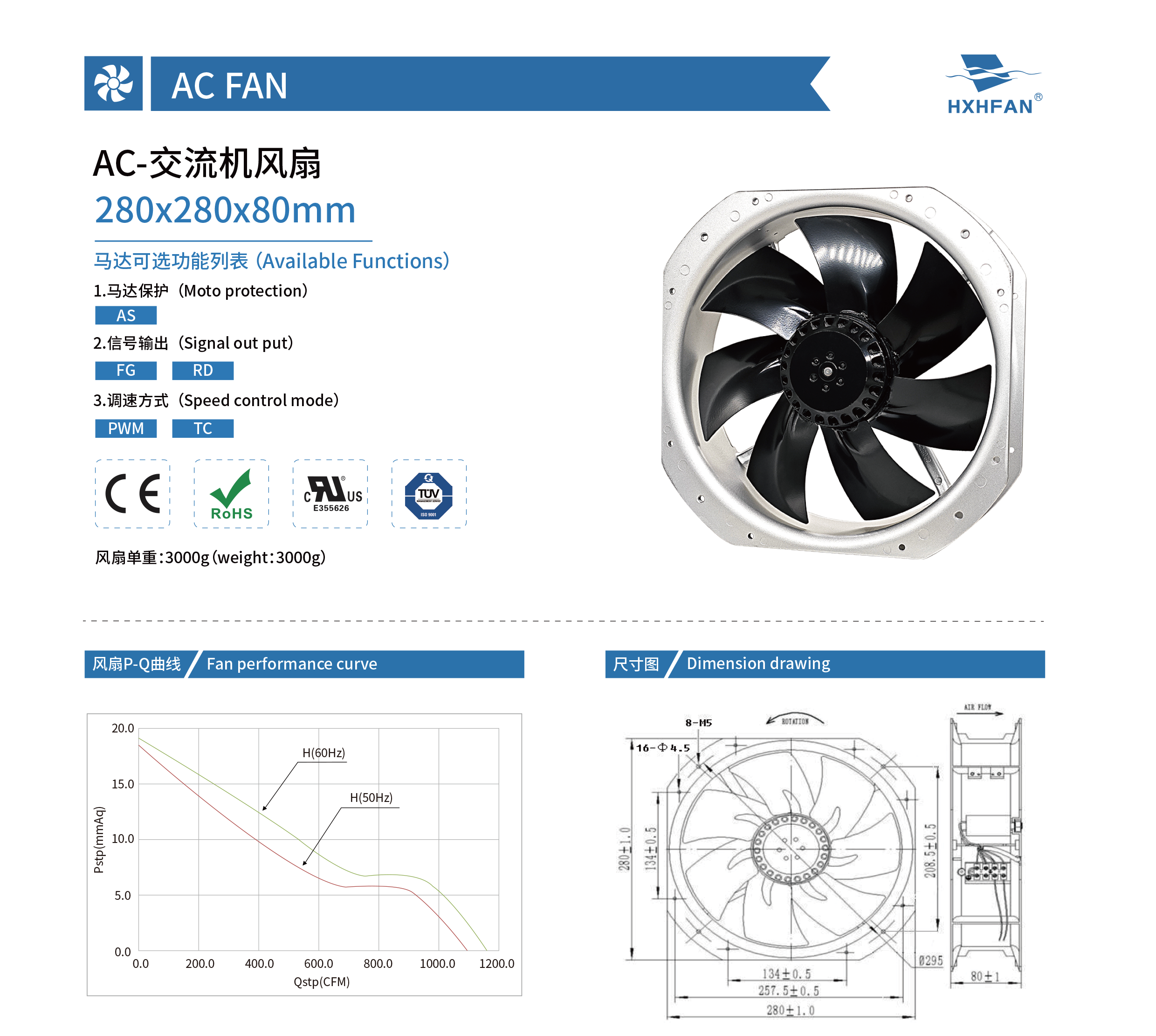

| 280*280*80MM | ||||||||||||
| Model | Bearing | Rated Voltage | Voltage Range | Freq. | Current | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Type | System | VAC | VAC | Hz | A | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HAB280110H80 | W/T | Ball | 110 | 100-125 | 50/60 | 1.20/1.30 | 2500/2700 | 31.07/32.83 | 1098/1160 | 18.5/19.1 | 0.73/0.75 | 69/70 |
| HAB280220H80 | W/T | Ball | 220 | 200-240 | 50/60 | 0.55/0.70 | 2500/2700 | 31.07/32.83 | 1098/1160 | 18.5/19.1 | 0.73/0.75 | 69/70 |
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
关于我们
获得最新报价

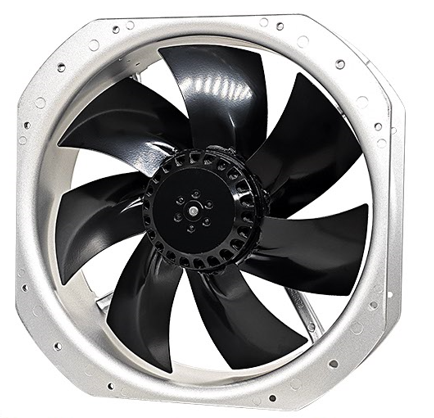

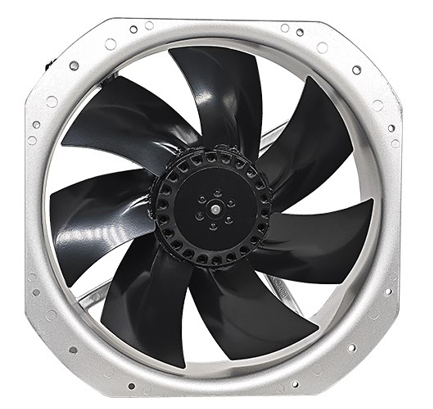

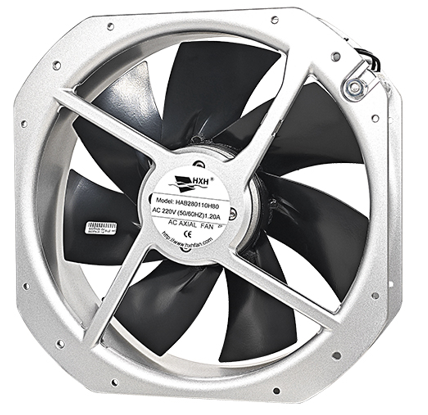

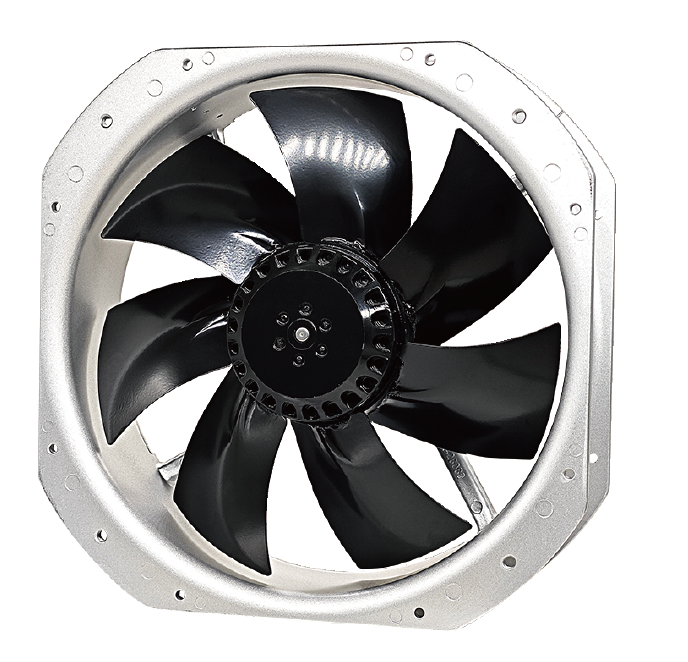

280x280x80mm
