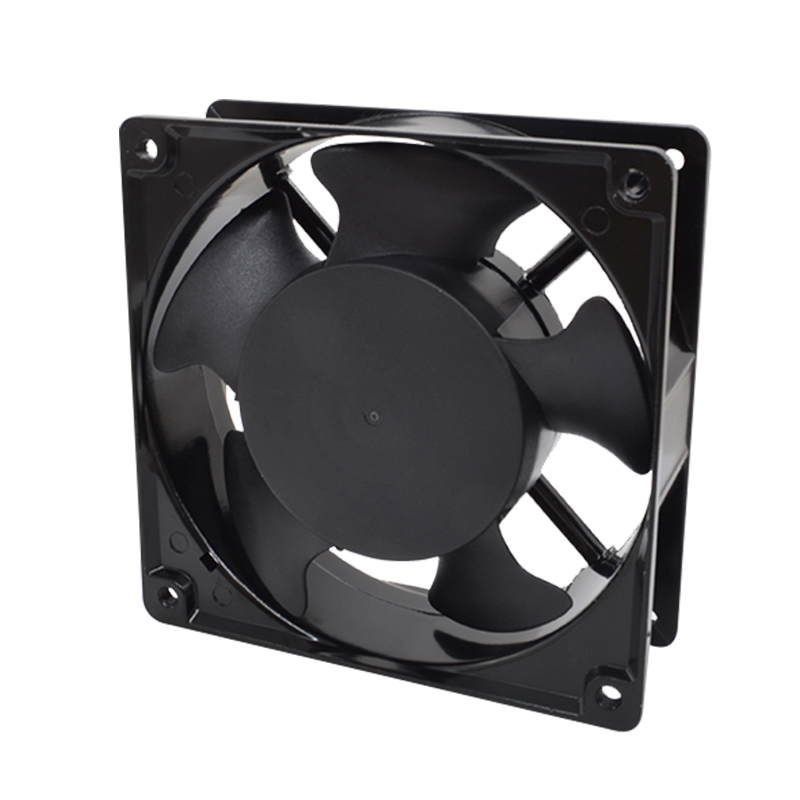

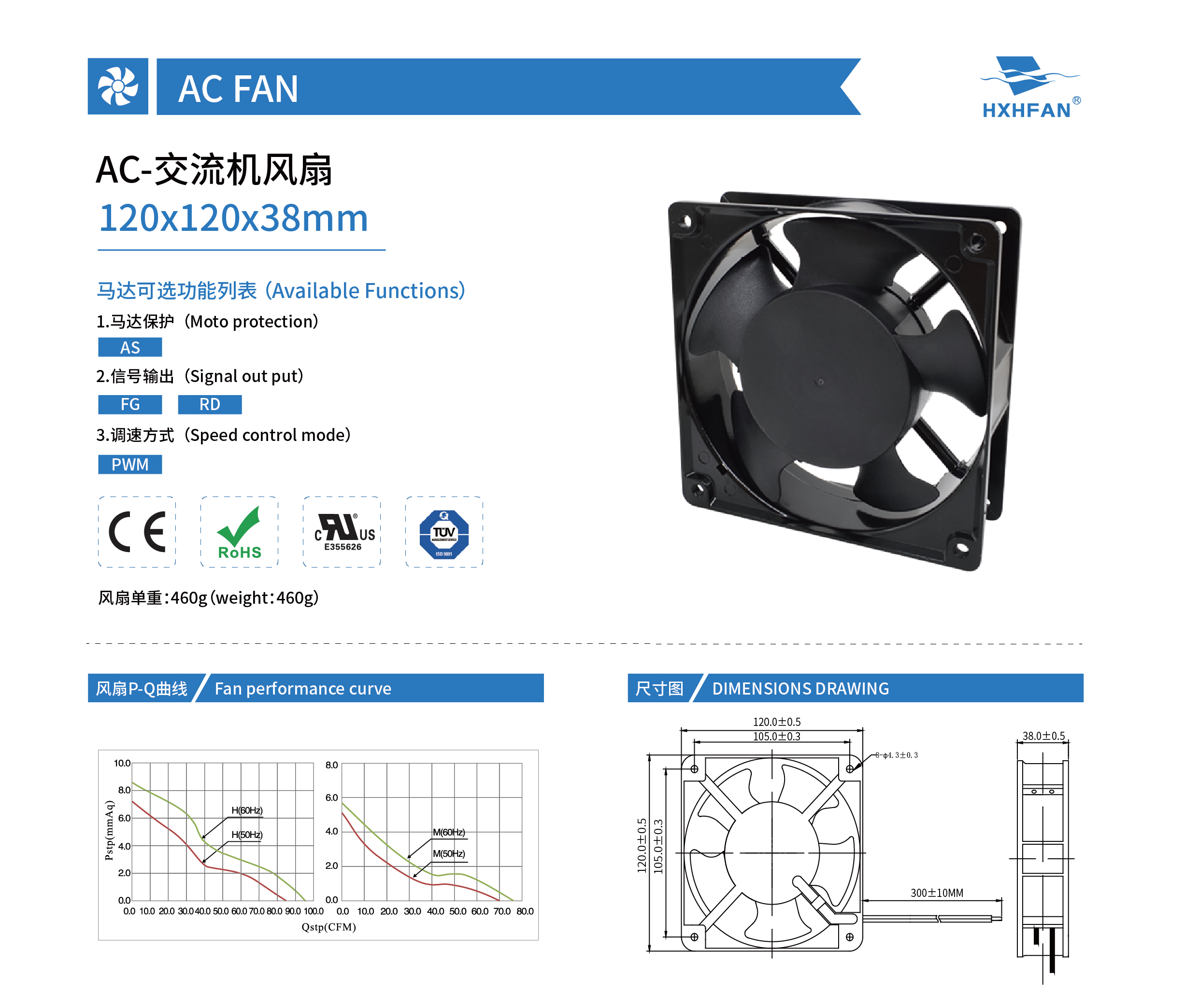

120×120×38mm
Model Bearing Rated Voltage  Voltage Range Freq. Current Speed Air Flow Static Pressure Noise
Part NO. Type System VAC VAC Hz A RPM M3/min CFM mmH2O INH2O dBA
HAS12110HF W/T Sleeve 110 100-125 50/60 0.22/0.18 2500/2800 2.41/2.72 85/96 7.2/8.6 0.28/0.34 40/45
HAS12110MF W/T 100-125 50/60 0.17/0.15 2400/2200 2.15/2.01 76/71 5.7/5.1 0.22/0.20 37/35
HAB12110HF W/T Ball 100-125 50/60 0.22/0.18 2500/2800 2.41/2.72 85/96 7.2/8.6 0.28/0.34 40/45
HAB12110MF W/T 100-125 50/60 0.17/0.15 2400/2200 2.15/2.01 76/71 5.7/5.1 0.22/0.20 37/35
HAS12220HF W/T Sleeve 220 200-240 50/60 0.14/0.12 2500/2800 2.41/2.72 85/96 7.2/8.6 0.28/0.34 40/45
HAS12220MF W/T 200-240 50/60 0.09/0.08 2400/2200 2.15/2.01 76/71 5.7/5.1 0.22/0.20 37/35
HAB12220HF W/T Ball 200-240 50/60 0.14/0.12 2500/2800 2.41/2.72 85/96 7.2/8.6 0.28/0.34 40/45
HAB12220MF W/T 200-240 50/60 0.09/0.08 2400/2200 2.15/2.01 76/71 5.7/5.1 0.22/0.20 37/35
Bearing Type:S=Sleeve  Bearing   H=Hydraulic Bearing   B=Two Ball Bearing   C=One Ball  One Sleeve  Bearing
