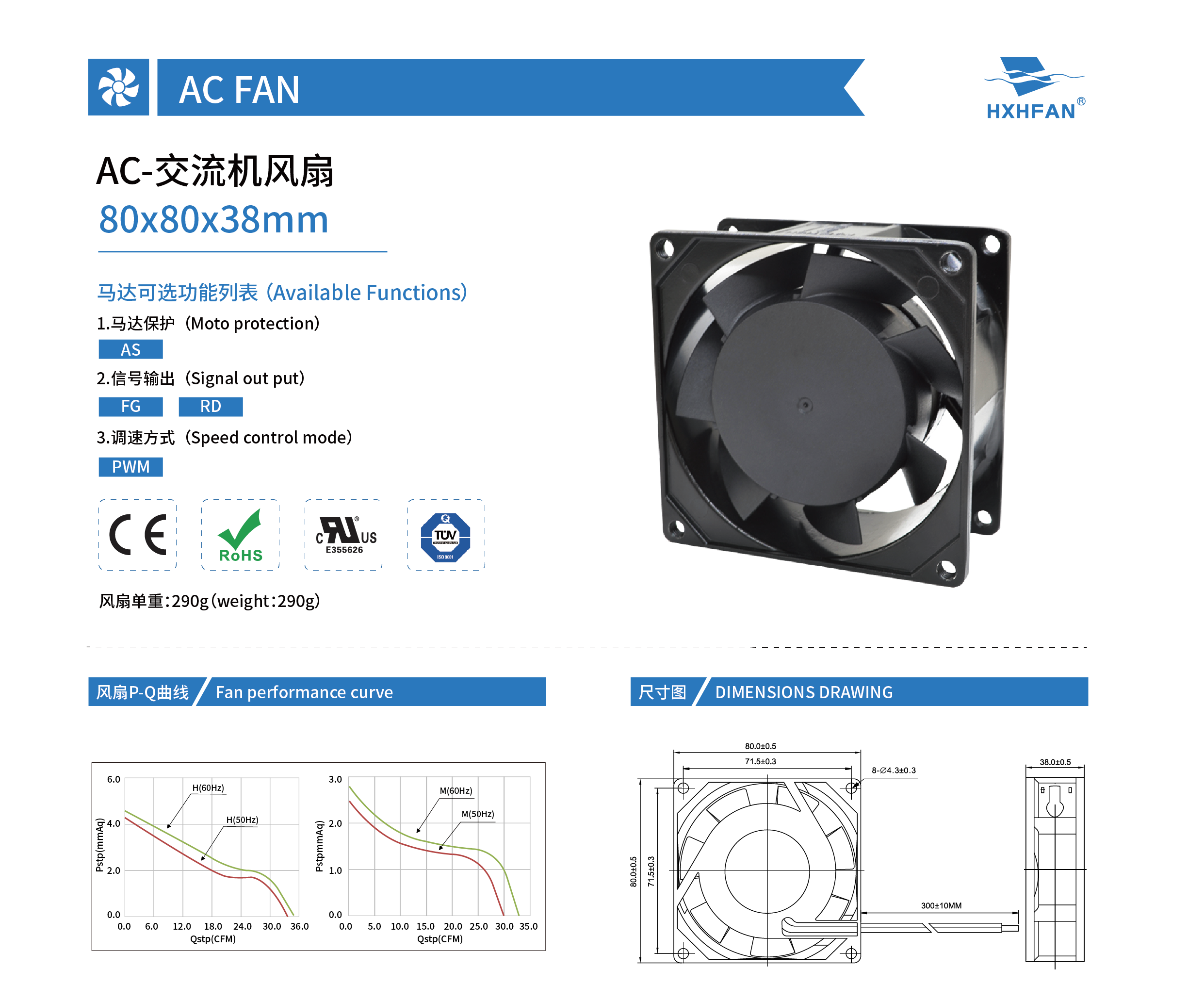

| 80×80×38mm | ||||||||||||
| Model | Bearing | Rated Voltage | Voltage Range | Freq. | Current | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Type | System | VAC | VAC | Hz | A | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HAS08110HF | W/T | Sleeve | 110 | 100-125 | 50/60 | 0.15/0.13 | 2600/2800 | 0.96/0.99 | 34/35 | 4.3/4.6 | 0.17/0.18 | 33/35 |
| HAS08110MF | W/T | 100-125 | 50/60 | 0.11/0.10 | 2100/2300 | 0.85/0.93 | 30/33 | 2.5/2.8 | 0.10/0.11 | 28/30 | ||
| HAB08110HF | W/T | Ball | 100-125 | 50/60 | 0.15/0.13 | 2600/2800 | 0.96/0.99 | 34/35 | 4.3/4.6 | 0.17/0.18 | 33/35 | |
| HAB08110MF | W/T | 100-125 | 50/60 | 0.11/0.10 | 2100/2300 | 0.85/0.93 | 30/33 | 2.5/2.8 | 0.10/0.11 | 28/30 | ||
| HAS08220HF | W/T | Sleeve | 220 | 200-240 | 50/60 | 0.08/0.07 | 2600/2800 | 0.96/0.99 | 34/35 | 4.3/4.6 | 0.17/0.18 | 33/35 |
| HAS08220MF | W/T | 200-240 | 50/60 | 0.06/0.05 | 2100/2300 | 0.85/0.93 | 30/33 | 2.5/2.8 | 0.10/0.11 | 28/30 | ||
| HAB08220HF | W/T | Ball | 200-240 | 50/60 | 0.08/0.07 | 2600/2800 | 0.96/0.99 | 34/35 | 4.3/4.6 | 0.17/0.18 | 33/35 | |
| HAB08220MF | W/T | 200-240 | 50/60 | 0.06/0.05 | 2100/2300 | 0.85/0.93 | 30/33 | 2.5/2.8 | 0.10/0.11 | 28/30 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
