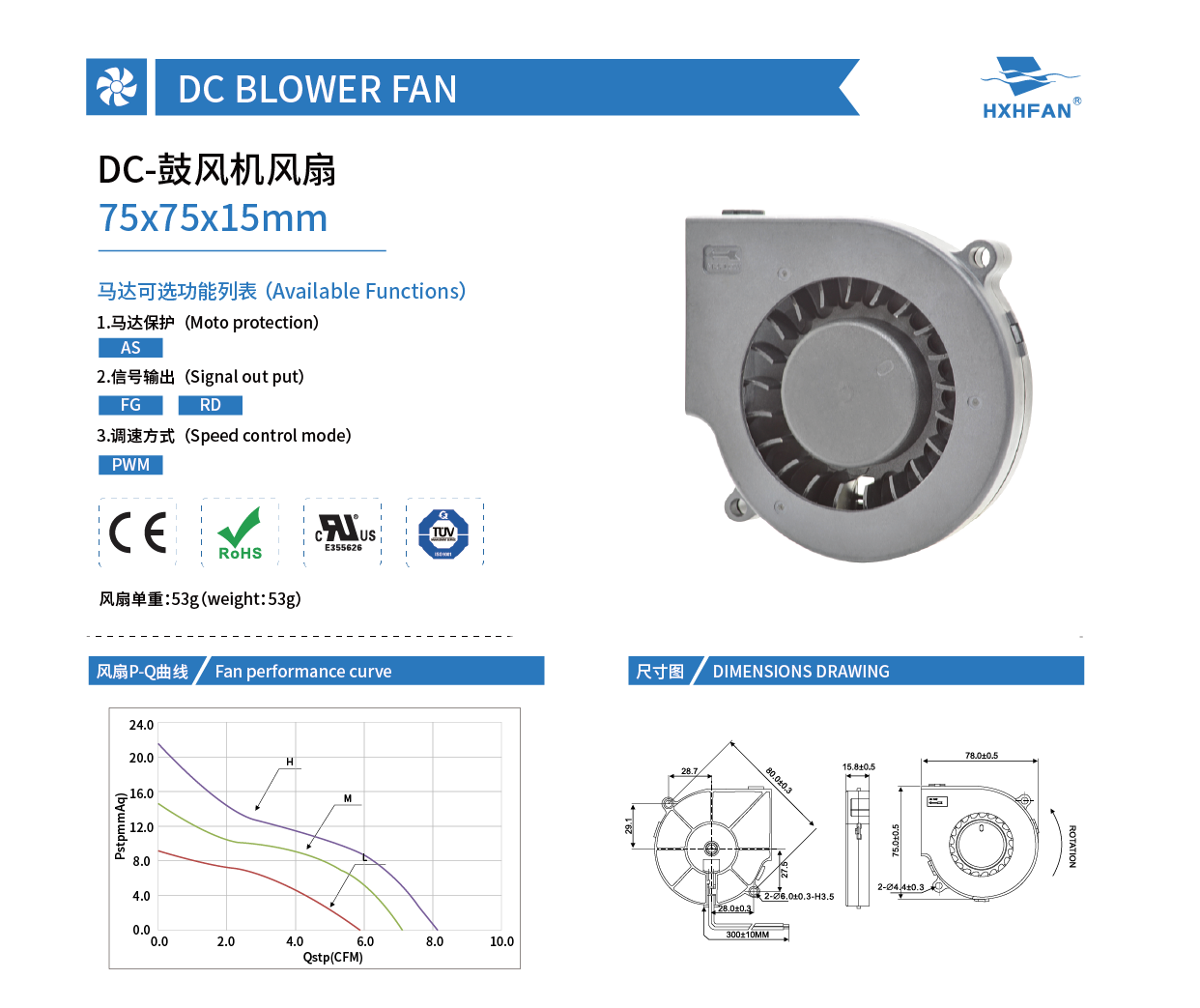

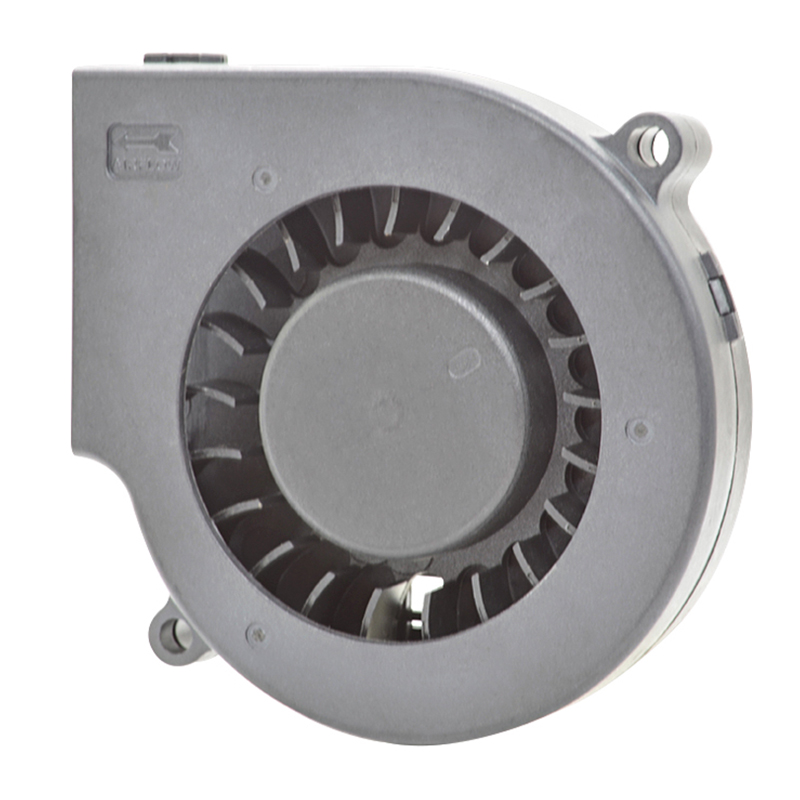

75×75×15mm
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M3/min	CFM	mmH2O	INH2O	dBA
HBS0705HD		SLEEVE	5	4.5	0.65	3.25	3800	0.23	8.15	21.56	0.85	40.8
HBS0705MD				4.5	0.45	2.25	3200	0.20	7.14	14.63	0.58	35.7
HBS0705LD				4.5	0.30	1.50	2500	0.17	5.92	9.16	0.36	28.6
HBB0705HD		BALL		4.5	0.65	3.25	3800	0.23	8.15	21.56	0.85	40.8
HBB0705MD				4.5	0.45	2.25	3200	0.20	7.14	14.63	0.58	35.7
HBB0705LD				4.5	0.30	1.50	2500	0.17	5.92	9.16	0.36	28.6
HBS0712HD		SLEEVE	12	9.5	0.45	5.40	3800	0.23	8.15	21.56	0.85	40.8
HBS0712MD				9.5	0.23	2.76	3200	0.20	7.14	14.63	0.58	35.7
HBS0712LD				9.5	0.14	1.68	2500	0.17	5.92	9.16	0.36	28.6
HBB0712HD		BALL		9.5	0.45	5.40	3800	0.23	8.15	21.56	0.85	40.8
HBB0712MD				9.5	0.23	2.76	3200	0.20	7.14	14.63	0.58	35.7
HBB0712LD				9.5	0.14	1.68	2500	0.17	5.92	9.16	0.36	28.6
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing

75x75x15mm

DC-轴流风扇
