产品描述

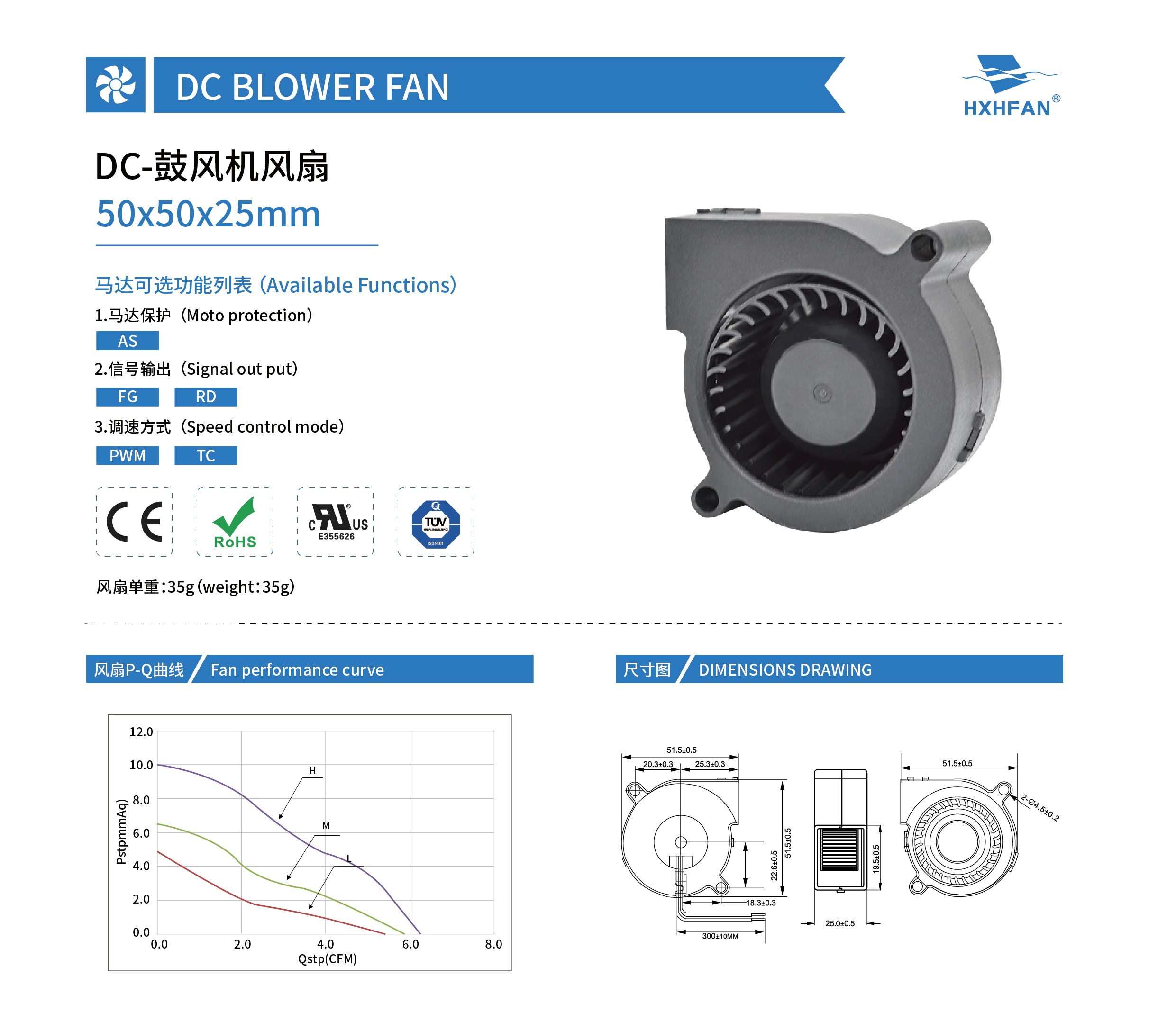

| 50x50x25mm | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HBS0505HA | SLEEVE | 5 | 4.5 | 0.35 | 1.75 | 4000 | 0.18 | 6.22 | 10.11 | 0.40 | 30.5 | |
| HBS0505MA | 4.5 | 0.35 | 1.75 | 3500 | 0.17 | 5.87 | 6.61 | 0.26 | 27.0 | |||
| HBS0505LA | 4.5 | 0.20 | 1.00 | 3000 | 0.15 | 5.41 | 4.88 | 0.19 | 24.0 | |||
| HBB0505HA | BALL | 4.5 | 0.35 | 1.75 | 4000 | 0.18 | 6.22 | 10.11 | 0.40 | 30.5 | ||
| HBB0505MA | 4.5 | 0.35 | 1.75 | 3500 | 0.17 | 5.87 | 6.61 | 0.26 | 27.0 | |||
| HBB0505LA | 4.5 | 0.20 | 1.00 | 3000 | 0.15 | 5.41 | 4.88 | 0.19 | 24.0 | |||
| HBS0512HA | SLEEVE | 12 | 9.5 | 0.20 | 2.40 | 4000 | 0.18 | 6.22 | 10.11 | 0.40 | 30.5 | |
| HBS0512MA | 9.5 | 0.14 | 1.68 | 3500 | 0.17 | 5.87 | 6.61 | 0.26 | 27.0 | |||
| HBS0512LA | 9.5 | 0.11 | 1.32 | 3000 | 0.15 | 5.41 | 4.88 | 0.19 | 24.0 | |||
| HBB0512HA | BALL | 9.5 | 0.20 | 2.40 | 4000 | 0.18 | 6.22 | 10.11 | 0.40 | 30.5 | ||
| HBB0512MA | 9.5 | 0.14 | 1.68 | 3500 | 0.17 | 5.87 | 6.61 | 0.26 | 27.0 | |||
| HBB0512LA | 9.5 | 0.11 | 1.32 | 3000 | 0.15 | 5.41 | 4.88 | 0.19 | 24.0 | |||
关于我们
获得最新报价

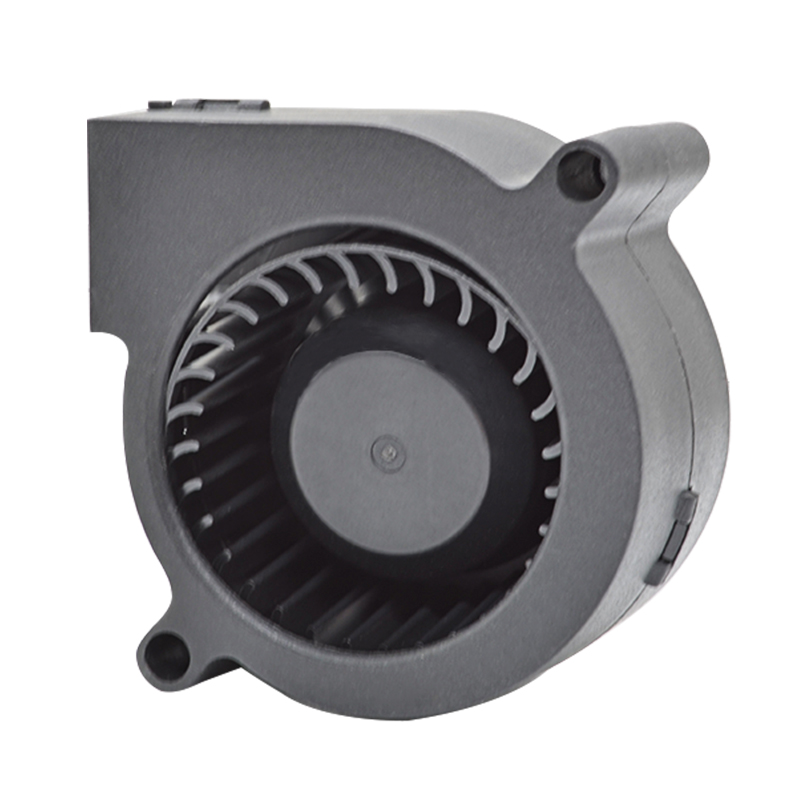

50x50x25MM
MOQ：
价格：
