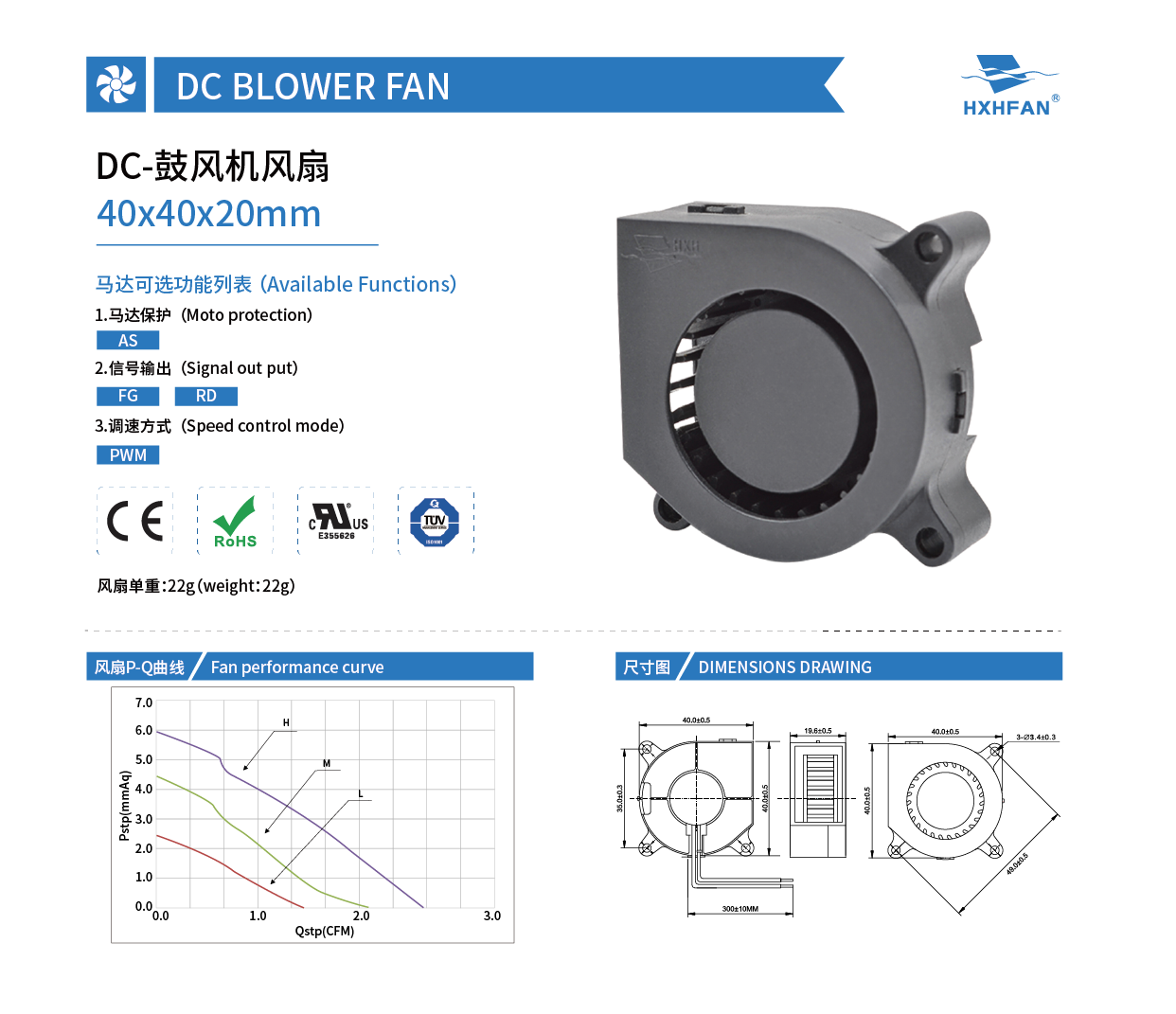

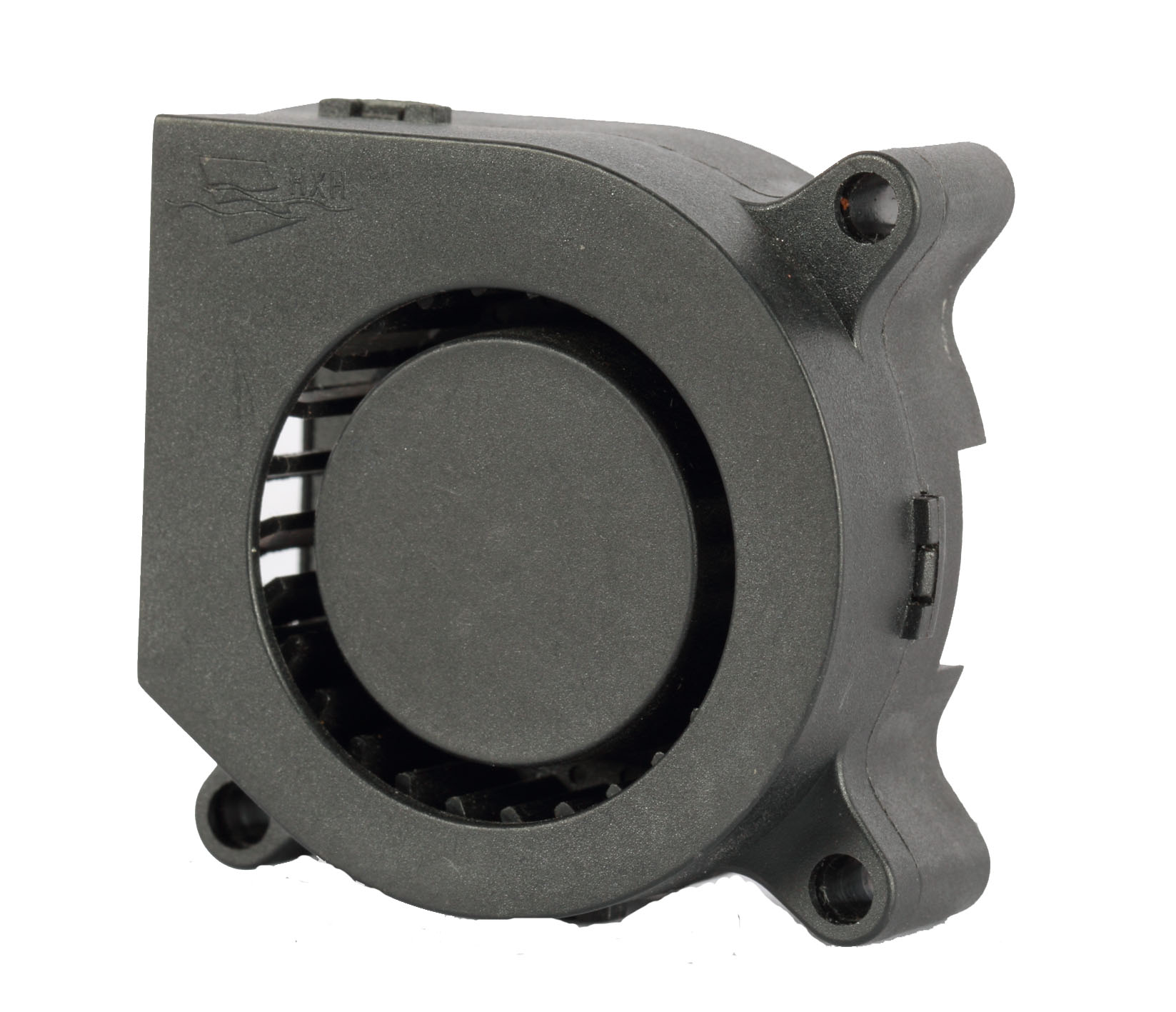

40×40×20mm
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M3/min	CFM	mmH2O	INH2O	dBA
HBS0405HC		Sleeve	5	4.0	0.20	1.00	6000	0.07	2.37	5.93	0.23	30.4
HBS0405MC				4.0	0.15	0.75	5300	0.05	1.90	4.45	0.18	27.6
HBS0405LC				4.0	0.10	0.50	4200	0.04	1.31	2.44	0.10	25.0
HBB0405HC		Ball		4.0	0.20	1.00	6000	0.07	2.37	5.93	0.23	30.4
HBB0405MC				4.0	0.15	0.75	5300	0.05	1.90	4.45	0.18	27.6
HBB0405LC				4.0	0.10	0.50	4200	0.04	1.31	2.44	0.10	25.0
HBS0412HC		Sleeve	12	9.0	0.13	1.56	6000	0.07	2.37	5.93	0.23	30.4
HBS0412MC				9.0	0.10	1.20	5300	0.05	1.90	4.45	0.18	27.6
HBS0412LC				9.0	0.08	0.96	4200	0.04	1.31	2.44	0.10	25.0
HBB0412HC		Ball		9.0	0.13	1.56	6000	0.07	2.37	5.93	0.23	30.4
HBB0412MC				9.0	0.10	1.20	5300	0.05	1.90	4.45	0.18	27.6
HBB0412LC				9.0	0.08	0.96	4200	0.04	1.31	2.44	0.10	25.0
HBS0424HC		Sleeve	24	12.0	0.10	2.40	6000	0.07	2.37	5.93	0.23	30.4
HBS0424MC				12.0	0.08	1.92	5300	0.05	1.90	4.45	0.18	27.6
HBS0424LC				12.0	0.06	1.44	4200	0.04	1.31	2.44	0.10	25.0
HBB0424HC		Ball		12.0	0.10	2.40	6000	0.07	2.37	5.93	0.23	30.4
HBB0424MC				12.0	0.08	1.92	5300	0.05	1.90	4.45	0.18	27.6
HBB0424LC				12.0	0.06	1.44	4200	0.04	1.31	2.44	0.10	25.0
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing

40x40x20mm

DC-轴流风扇
