产品描述

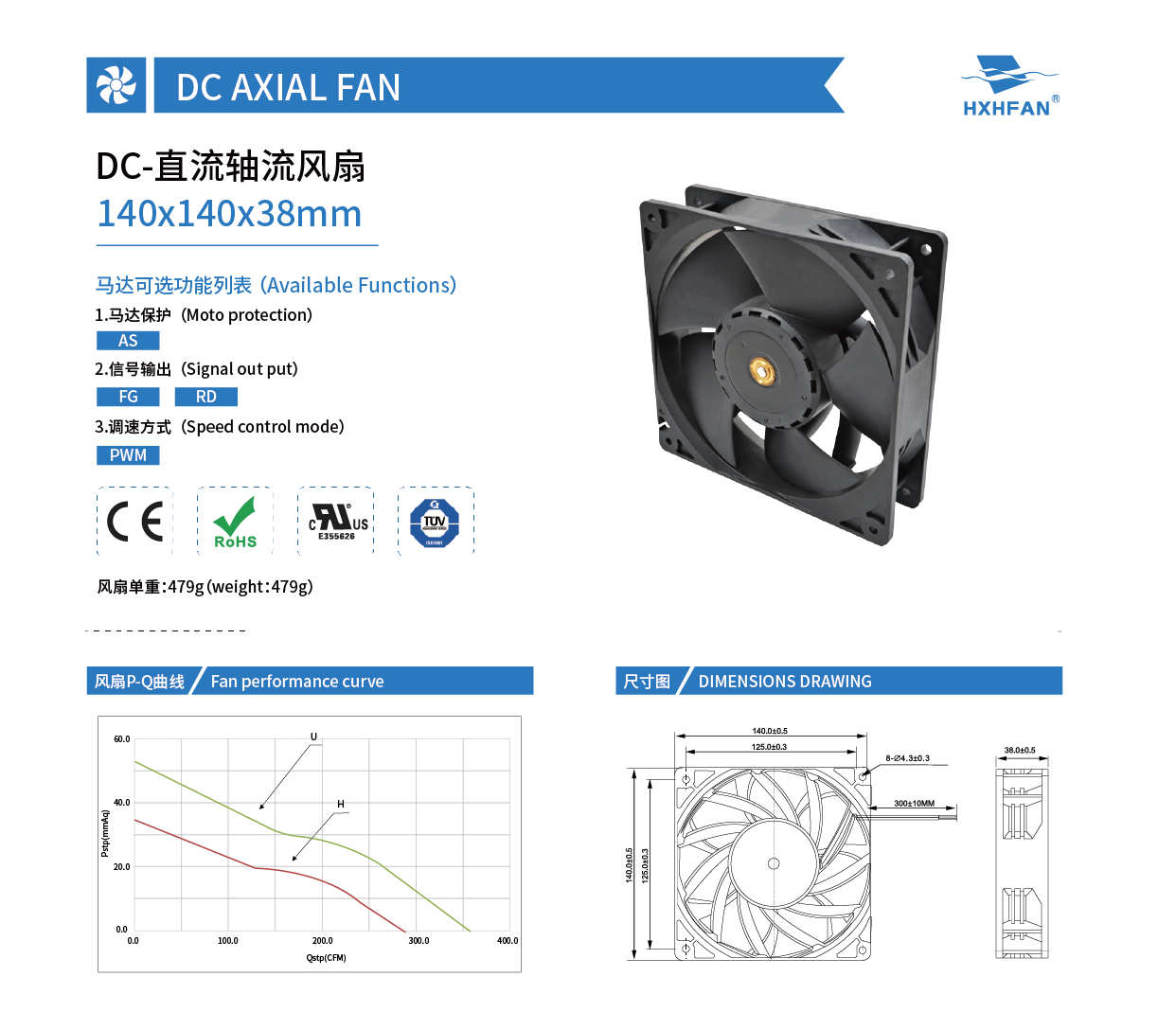

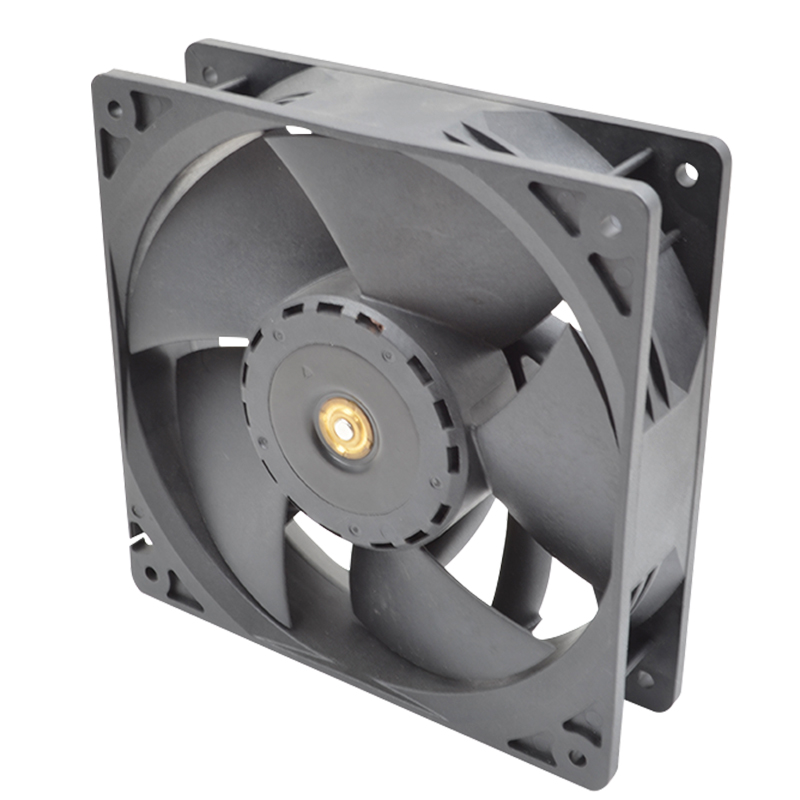

| 140×140×38MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB1412UF | -A | Ball | 12 | 5.0 | 6.50 | 78.00 | 7200 | 9.16 | 323.57 | 42.72 | 1.68 | 73.1 |
| HDB1412HF | -A | 5.0 | 5.00 | 60.00 | 6500 | 8.27 | 292.11 | 34.82 | 1.37 | 70.9 | ||
| HDB1424UF | -A | Ball | 24 | 12.0 | 3.00 | 72.00 | 7200 | 9.16 | 323.57 | 42.72 | 1.68 | 73.1 |
| HDB1424HF | -A | 12.0 | 2.00 | 48.00 | 6500 | 8.27 | 292.11 | 34.82 | 1.37 | 70.9 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
