产品描述

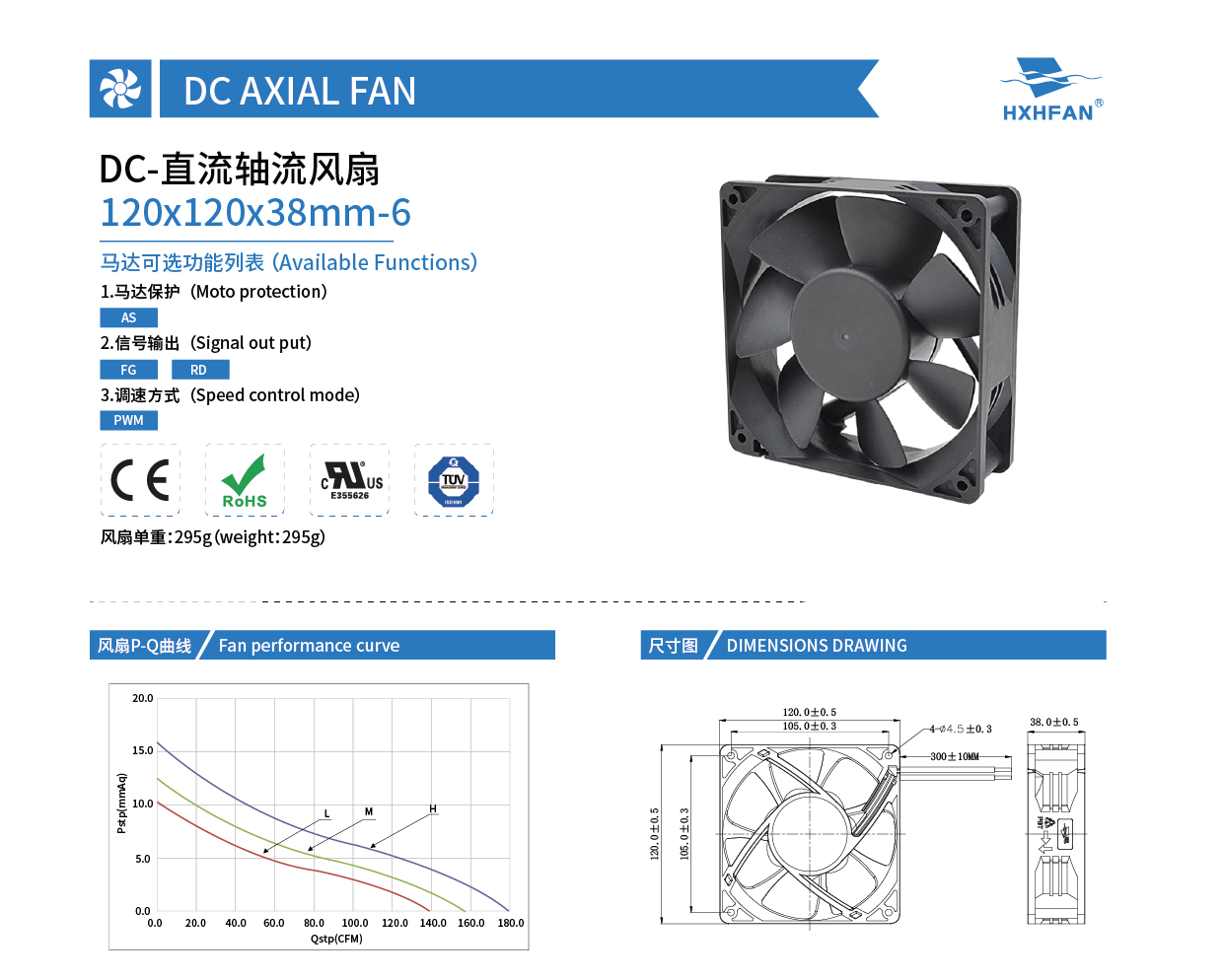

| 120×120×38mm-6 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDB1212UF-6 | -A | Ball | 12 | 6.0 | 2.00 | 24.00 | 4000 | 5.08 | 179.56 | 15.77 | 0.62 | 55.5 |
| HDB1212MF-6 | -A | 6.0 | 1.50 | 18.00 | 3600 | 4.45 | 157.28 | 12.43 | 0.49 | 52.5 | ||
| HDB1212LF-6 | -A | 6.0 | 1.20 | 14.40 | 3200 | 3.94 | 139.28 | 10.30 | 0.41 | 48.9 | ||
| HDB1212HF-6 | -A | Ball | 24 | 12.0 | 0.90 | 21.60 | 4000 | 5.08 | 179.56 | 15.77 | 0.62 | 55.5 |
| HDB1224MF-6 | -A | 12.0 | 0.78 | 18.72 | 3600 | 4.45 | 157.28 | 12.43 | 0.49 | 52.5 | ||
| HDB1224LF-6 | -A | 12.0 | 0.56 | 13.44 | 3200 | 3.94 | 139.28 | 10.30 | 0.41 | 48.9 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
关于我们
获得最新报价

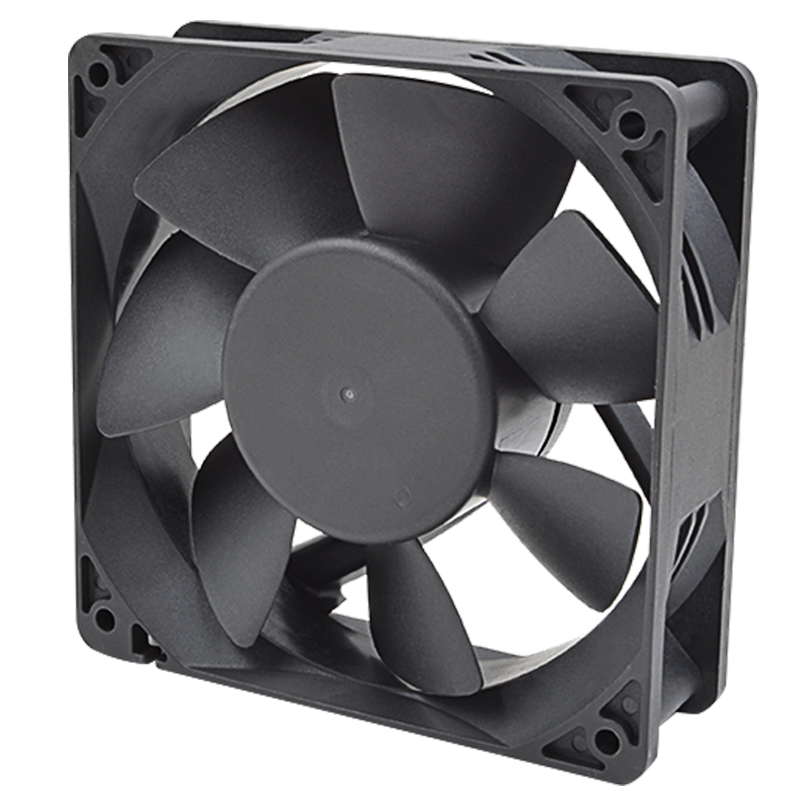

120x120x38mm-6
MOQ：
价格：
