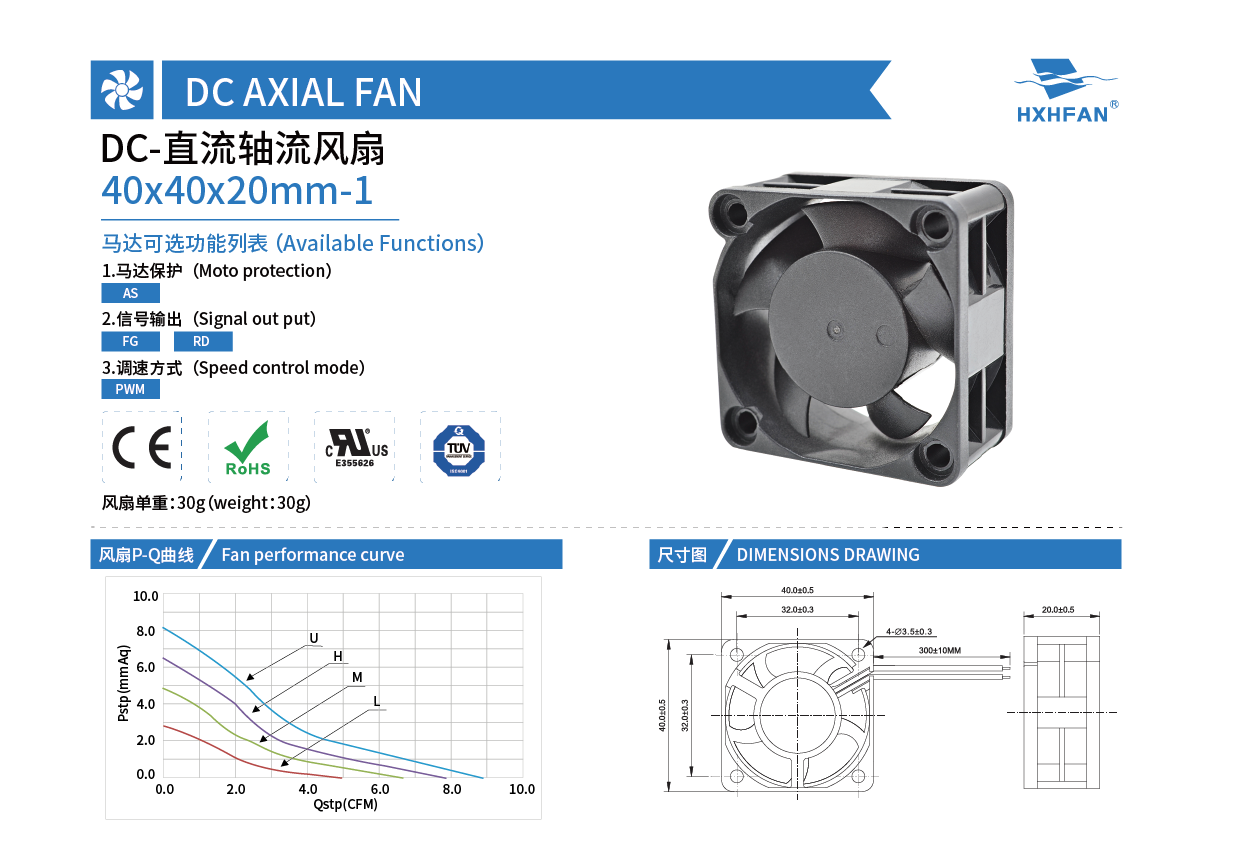

| 40×40×20mm-1 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDS0405UC-1 | -A | Sleeve | 5 | 4.0 | 0.30 | 1.50 | 8200 | 0.25 | 8.90 | 8.13 | 0.32 | 33.5 |
| HDS0405HC-1 | 4.0 | 0.22 | 1.10 | 7200 | 0.22 | 7.87 | 6.48 | 0.26 | 28.9 | |||
| HDS0405MC-1 | 4.0 | 0.16 | 0.80 | 6200 | 0.19 | 6.70 | 4.85 | 0.19 | 24.8 | |||
| HDS0405LC-1 | 4.5 | 0.14 | 0.70 | 5000 | 0.14 | 4.97 | 2.89 | 0.11 | 22.6 | |||
| HDH0405UC-1 | -A | Hydraulic | 4.0 | 0.30 | 1.50 | 8200 | 0.25 | 8.90 | 8.13 | 0.32 | 33.5 | |
| HDH0405HC-1 | 4.0 | 0.22 | 1.10 | 7200 | 0.22 | 7.87 | 6.48 | 0.26 | 28.9 | |||
| HDH0405MC-1 | 4.0 | 0.16 | 0.80 | 6200 | 0.19 | 6.70 | 4.85 | 0.19 | 24.8 | |||
| HDH0405LC-1 | 4.5 | 0.14 | 0.70 | 5000 | 0.14 | 4.97 | 2.89 | 0.11 | 22.6 | |||
| HDB0405UC-1 | -A | Ball | 4.0 | 0.30 | 1.50 | 8200 | 0.25 | 8.90 | 8.13 | 0.32 | 33.5 | |
| HDB0405HC-1 | 4.0 | 0.22 | 1.10 | 7200 | 0.22 | 7.87 | 6.48 | 0.26 | 28.9 | |||
| HDB0405MC-1 | 4.0 | 0.16 | 0.80 | 6200 | 0.19 | 6.70 | 4.85 | 0.19 | 24.8 | |||
| HDB0405LC-1 | 4.5 | 0.14 | 0.70 | 5000 | 0.14 | 4.97 | 2.89 | 0.11 | 22.6 | |||
| HDS0412UC-1 | Sleeve | 12 | 6.0 | 0.12 | 1.44 | 8200 | 0.25 | 8.90 | 8.13 | 0.32 | 33.5 | |
| HDS0412HC-1 | 6.0 | 0.10 | 1.20 | 7200 | 0.22 | 7.87 | 6.48 | 0.26 | 28.9 | |||
| HDS0412MC-1 | 6.0 | 0.08 | 0.96 | 6200 | 0.19 | 6.70 | 4.85 | 0.19 | 24.8 | |||
| HDS0412LC-1 | 7.0 | 0.06 | 0.72 | 5000 | 0.14 | 4.97 | 2.89 | 0.11 | 22.6 | |||
| HDH0412UC-1 | Hydraulic | 6.0 | 0.12 | 1.44 | 8200 | 0.25 | 8.90 | 8.13 | 0.32 | 33.5 | ||
| HDH0412HC-1 | 6.0 | 0.10 | 1.20 | 7200 | 0.22 | 7.87 | 6.48 | 0.26 | 28.9 | |||
| HDH0412MC-1 | 6.0 | 0.08 | 0.96 | 6200 | 0.19 | 6.70 | 4.85 | 0.19 | 24.8 | |||
| HDH0412LC-1 | 7.0 | 0.06 | 0.72 | 5000 | 0.14 | 4.97 | 2.89 | 0.11 | 22.6 | |||
| HDB0412UC-1 | Ball | 6.0 | 0.12 | 1.44 | 8200 | 0.25 | 8.90 | 8.13 | 0.32 | 33.5 | ||
| HDB0412HC-1 | 6.0 | 0.10 | 1.20 | 7200 | 0.22 | 7.87 | 6.48 | 0.26 | 28.9 | |||
| HDB0412MC-1 | 6.0 | 0.08 | 0.96 | 6200 | 0.19 | 6.70 | 4.85 | 0.19 | 24.8 | |||
| HDB0412LC-1 | 7.0 | 0.06 | 0.72 | 5000 | 0.14 | 4.97 | 2.89 | 0.11 | 22.6 | |||
| HDS0424UC-1 | Sleeve | 24 | 12.0 | 0.10 | 2.40 | 8200 | 0.25 | 8.90 | 8.13 | 0.32 | 33.5 | |
| HDS0424HC-1 | 12.0 | 0.07 | 1.68 | 7200 | 0.22 | 7.87 | 6.48 | 0.26 | 28.9 | |||
| HDS0424MC-1 | 12.0 | 0.06 | 1.44 | 6200 | 0.19 | 6.70 | 4.85 | 0.19 | 24.8 | |||
| HDS0424LC-1 | 12.0 | 0.05 | 1.20 | 5000 | 0.14 | 4.97 | 2.89 | 0.11 | 22.6 | |||
| HDH0424UC-1 | Hydraulic | 12.0 | 0.10 | 2.40 | 8200 | 0.25 | 8.90 | 8.13 | 0.32 | 33.5 | ||
| HDH0424HC-1 | 12.0 | 0.07 | 1.68 | 7200 | 0.22 | 7.87 | 6.48 | 0.26 | 28.9 | |||
| HDH0424MC-1 | 12.0 | 0.06 | 1.44 | 6200 | 0.19 | 6.70 | 4.85 | 0.19 | 24.8 | |||
| HDH0424LC-1 | 12.0 | 0.05 | 1.20 | 5000 | 0.14 | 4.97 | 2.89 | 0.11 | 22.6 | |||
| HDB0424UC-1 | Ball | 12.0 | 0.10 | 2.40 | 8200 | 0.25 | 8.90 | 8.13 | 0.32 | 33.5 | ||
| HDB0424HC-1 | 12.0 | 0.07 | 1.68 | 7200 | 0.22 | 7.87 | 6.48 | 0.26 | 28.9 | |||
| HDB0424MC-1 | 12.0 | 0.06 | 1.44 | 6200 | 0.19 | 6.70 | 4.85 | 0.19 | 24.8 | |||
| HDB0424LC-1 | 12.0 | 0.05 | 1.20 | 5000 | 0.14 | 4.97 | 2.89 | 0.11 | 22.6 | |||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
