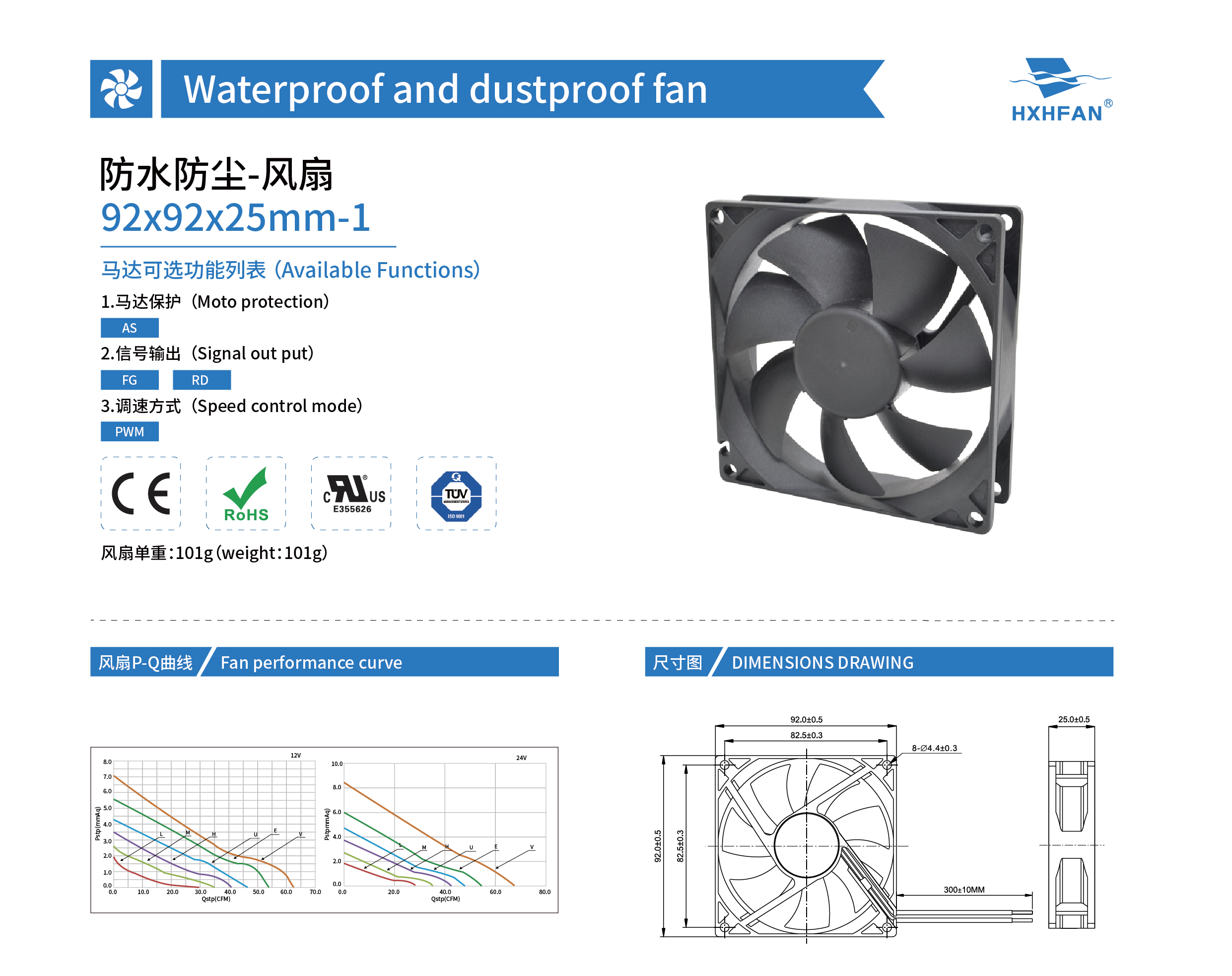

92×92×25mm-1
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M3/min	CFM	mmH2O	INH2O	dBA
HDB0905HA	IP68	Ball	5	4.0	0.30	1.50	2800	1.15	40.79	3.51	0.14	35.5
HDB0905MA	IP68			4.0	0.25	1.25	2400	1.00	35.34	2.64	0.10	31.3
HDB0905LA	IP68			4.0	0.19	0.95	2000	0.85	29.89	1.91	0.08	28.4
HDB0912VA	IP68	Ball	12	6.0	0.45	5.40	4200	1.77	62.52	7.06	0.28	47.5
HDB0912EA	IP68			6.0	0.40	4.80	3800	1.53	53.96	5.56	0.22	44.3
HDB0912UA	IP68			6.0	0.30	3.60	3200	1.32	46.71	4.28	0.17	39.7
HDB0912HA	IP68			6.0	0.23	2.76	2800	1.15	40.79	3.51	0.14	35.5
HDB0912MA	IP68			6.0	0.19	2.28	2400	1.00	35.34	2.64	0.10	31.3
HDB0912LA	IP68			9.0	0.16	1.92	2000	0.85	29.89	1.91	0.08	28.4
HDB0924VA	IP68	Ball	24	12.0	0.25	6.00	4800	2.02	71.32	8.88	0.35	51.5
HDB0924EA	IP68			12.0	0.18	4.32	4000	1.63	57.49	6.21	0.24	46.2
HDB0924HA	IP68			12.0	0.13	3.12	3500	1.42	50.28	4.95	0.19	41.7
HDB0924HA	IP68			12.0	0.11	2.64	3000	1.26	44.46	3.90	0.15	38.7
HDB0924MA	IP68			12.0	0.07	1.68	2500	1.04	36.84	2.80	0.11	33.0
HDB0924LA	IP68			18.0	0.05	1.20	2000	0.85	29.89	1.91	0.08	28.4
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing

92x92x25mm-1

DC-轴流风扇
