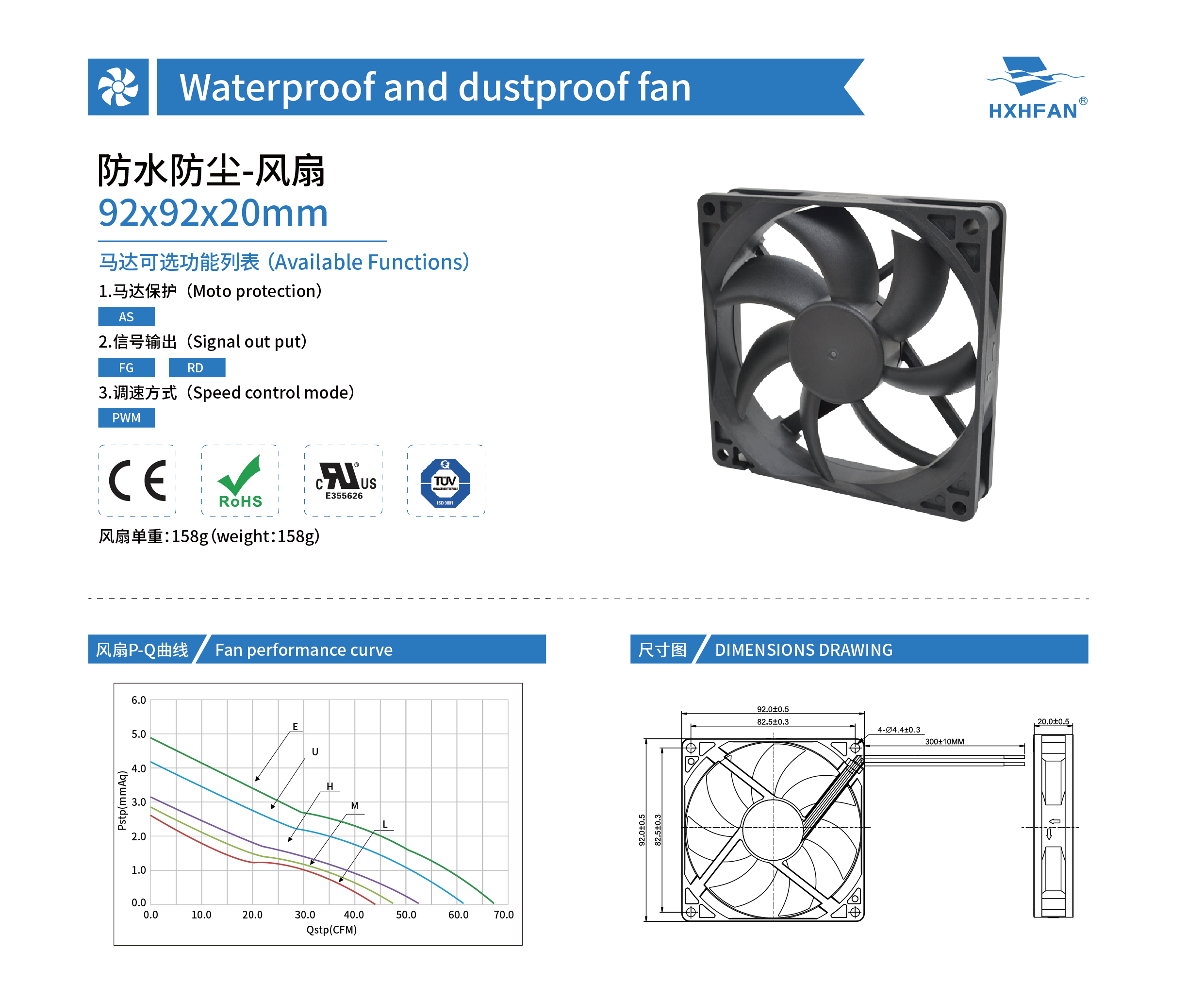

92×92×20mm
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M3/min	CFM	mmH2O	INH2O	dBA
HDB0912EC	IP68	Ball	12	5.0	0.35	4.20	3300	1.91	67.56	4.88	0.19	42.6
HDB0912UC	IP68			5.0	0.28	3.36	3000	1.74	61.38	4.17	0.16	40.3
HDB0912HC	IP68			5.0	0.20	2.40	2700	1.50	52.99	3.16	0.12	36.6
HDB0912MC	IP68			5.0	0.15	1.80	2400	1.35	47.66	2.83	0.11	33.5
HDB0912LC	IP68			5.0	0.10	1.20	2100	1.25	44.07	2.61	0.10	31.4
HDB0924EC	IP68	Ball	24	12.0	0.18	4.32	3300	1.91	67.56	4.88	0.19	42.6
HDB0924UC	IP68			12.0	0.15	3.60	3000	1.74	61.38	4.17	0.16	40.3
HDB0924HC	IP68			12.0	0.12	2.88	2700	1.50	52.99	3.16	0.12	36.6
HDB0924MC	IP68			12.0	0.08	1.92	2400	1.35	47.66	2.83	0.11	33.5
HDB0924LC	IP68			12.0	0.06	1.44	2100	1.25	44.07	2.61	0.10	31.4
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing

92x92x20mm

DC-轴流风扇
