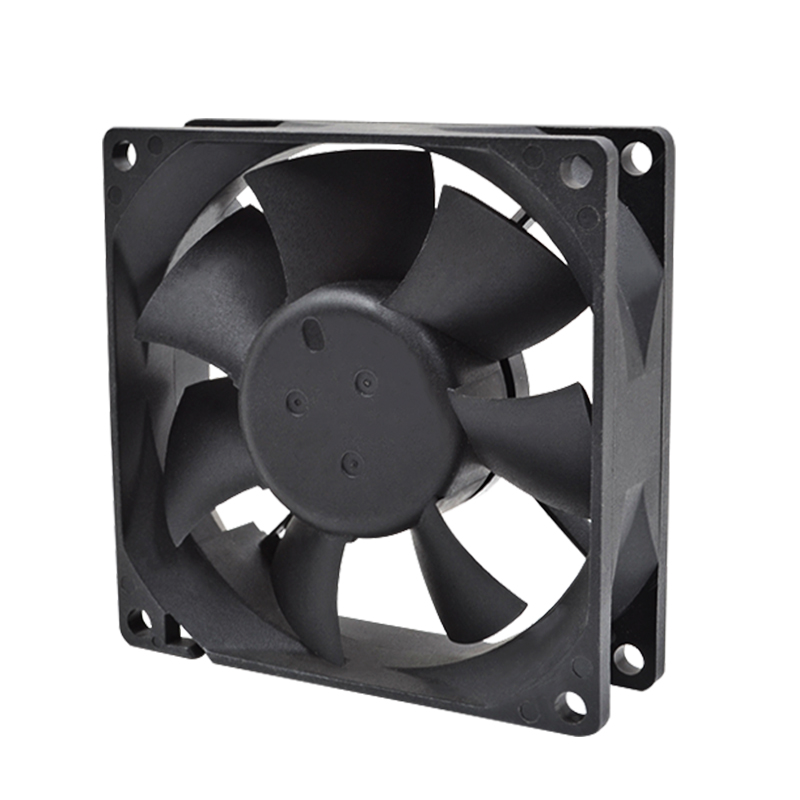

80×80×25mm-1
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M3/min	CFM	mmH2O	INH2O	dBA
HDB0805UA-1	IP68	Ball	5	4.0	0.60	3.00	3500	1.16	41.09	5.44	0.21	39.4
HDB0805HA-1	IP68			4.0	0.45	2.25	3000	0.97	34.21	4.04	0.16	35.5
HDB0805MA-1	IP68			4.0	0.25	1.25	2500	0.83	29.24	2.82	0.11	31.3
HDB0805LA-1	IP68			4.0	0.20	1.00	2000	0.74	26.23	2.17	0.09	29.7
HDB0812VA-1	IP68	Ball	12	5.0	0.55	6.60	5000	1.66	58.54	10.34	0.41	48.1
HDB0812EA-1	IP68			5.0	0.38	4.56	4000	1.32	46.57	6.82	0.27	40.7
HDB0812UA-1	IP68			5.0	0.28	3.36	3500	1.16	41.09	5.44	0.21	39.4
HDB0812HA-1	IP68			5.0	0.23	2.76	3000	0.97	34.21	4.04	0.16	35.5
HDB0812MA-1	IP68			5.0	0.16	1.92	2500	0.83	29.24	2.82	0.11	31.3
HDB0812LA-1	IP68			5.0	0.09	1.08	2000	0.74	26.23	2.17	0.09	29.7
HDB0824EA-1	IP68	Ball	24	12.0	0.28	6.72	4000	1.32	46.57	6.82	0.27	40.7
HDB0824UA-1	IP68			12.0	0.18	4.32	3500	1.16	41.09	5.44	0.21	39.4
HDB0824HA-1	IP68			12.0	0.14	3.36	3000	0.97	34.21	4.04	0.16	35.5
HDB0824MA-1	IP68			12.0	0.09	2.16	2500	0.83	29.24	2.82	0.11	31.3
HDB0824LA-1	IP68			12.0	0.06	1.44	2000	0.74	26.23	2.17	0.09	29.7
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing

80x80x25mm-1

DC-轴流风扇
