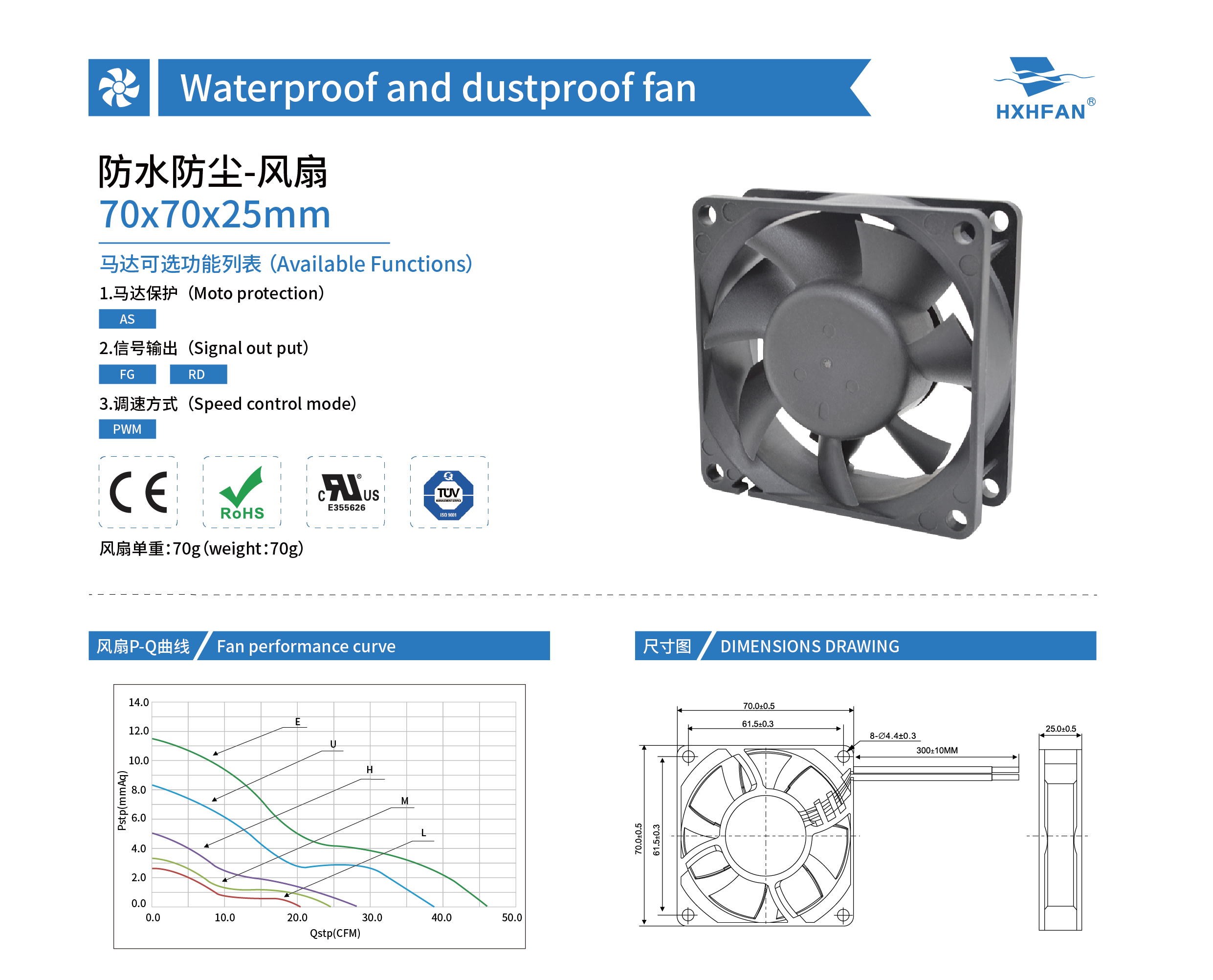

70×70×25mm
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M3/min	CFM	mmH2O	INH2O	dBA
HDB0712EA	IP68	Ball	12	5.0	0.50	6.00	5600	1.31	46.21	11.58	0.46	48.5
HDB0712UA	IP68			5.0	0.35	4.20	4800	1.10	38.96	8.28	0.33	46.0
HDB0712HA	IP68			5.0	0.23	2.76	4000	0.79	27.97	5.00	0.20	39.9
HDB0712MA	IP68			5.0	0.15	1.80	3000	0.70	24.62	3.31	0.13	32.7
HDB0712LA	IP68			5.0	0.12	1.44	2400	0.58	20.41	2.58	0.10	30.3
HDB0724EA	IP68	Ball	24	12.0	0.33	7.92	5600	1.31	46.21	11.58	0.46	48.5
HDB0724UA	IP68			12.0	0.25	6.00	4800	1.10	38.96	8.28	0.33	46.0
HDB0724HA	IP68			12.0	0.16	3.84	4000	0.79	27.97	5.00	0.20	39.9
HDB0724MA	IP68			12.0	0.11	2.64	3000	0.70	24.62	3.31	0.13	32.7
HDB0724LA	IP68			12.0	0.08	1.92	2400	0.58	20.41	2.58	0.10	30.3
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing

70x70x25mm

DC-轴流风扇
