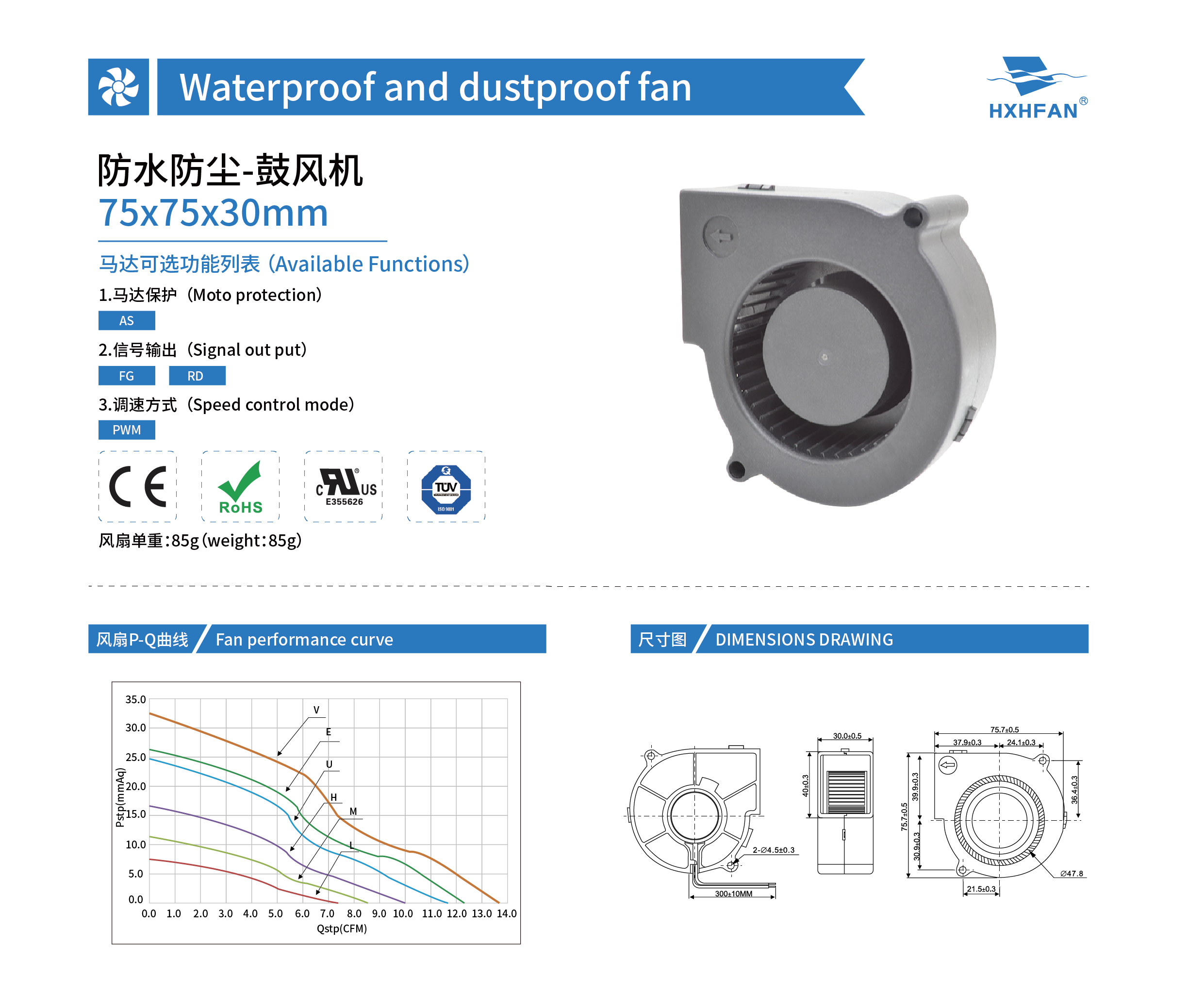

75×75×30mm
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M3/min	CFM	mmH2O	INH2O	dBA
HBB7512VY	IP68	Ball	12	5.0	0.43	5.16	5000	0.39	13.68	32.53	1.28	50.0
HBB7512EY	IP68			5.0	0.36	4.32	4500	0.35	12.31	26.35	1.04	47.7
HBB7512UY	IP68			5.0	0.24	2.88	4200	0.33	11.74	24.74	0.97	45.3
HBB7512HY	IP68			5.0	0.18	2.16	3500	0.29	10.08	16.66	0.66	40.6
HBB7512MY	IP68			5.0	0.15	1.80	3000	0.24	8.62	11.41	0.45	37.0
HBB7512LY	IP68			5.0	0.12	1.44	2500	0.21	7.37	7.54	0.30	33.3
HBB7524EY	IP68	Ball	24	12.0	0.38	9.12	4500	0.35	12.31	26.35	1.04	47.7
HBB7524UY	IP68			12.0	0.27	6.48	4200	0.33	11.74	24.74	0.97	45.3
HBB7524HY	IP68			12.0	0.20	4.80	3500	0.29	10.08	16.66	0.66	40.6
HBB7524MY	IP68			12.0	0.12	2.88	3000	0.24	8.62	11.41	0.45	37.0
HBB7524LY	IP68			12.0	0.10	2.40	2500	0.21	7.37	7.54	0.30	33.3
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing

75x75x30mm

DC-轴流风扇
