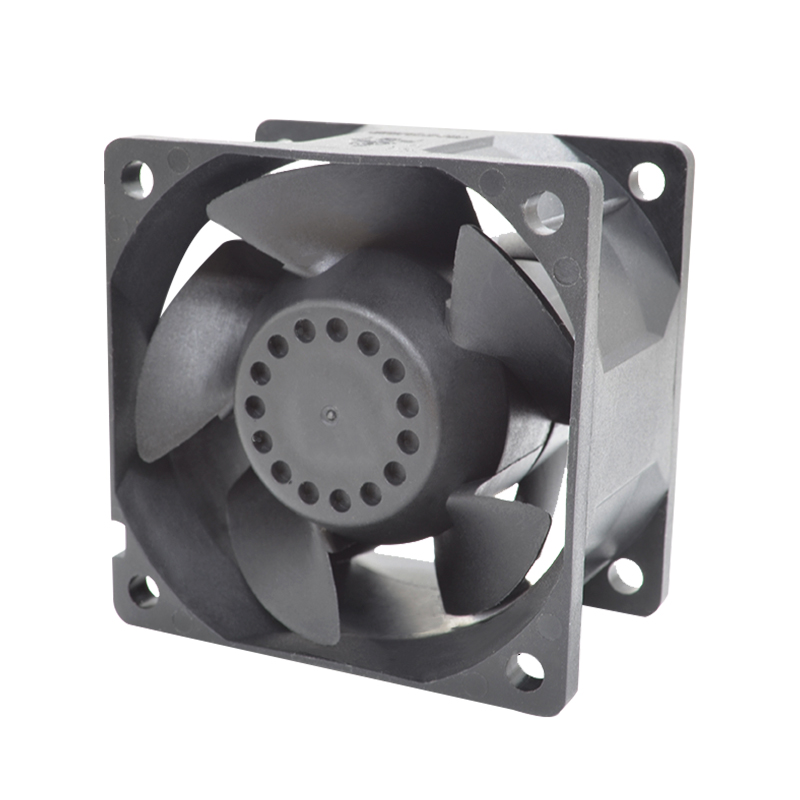

60×60×38mm
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M3/min	CFM	mmH2O	INH2O	dBA
HDB0612VF	IP68	Ball	12	6.0	1.50	18.00	15000	1.81	64.00	67.47	2.66	63.0
HDB0612EF	IP67			6.0	1.20	14.40	13000	1.56	55.02	51.23	2.02	57.4
HDB0612UF	IP67			6.0	0.85	10.20	11000	1.31	46.70	44.70	1.41	53.0
HDB0612HF	IP67			6.0	0.60	7.20	9000	1.06	25.49	25.49	1.00	46.6
HDB0612MF	IP67			9.0	0.35	4.20	7500	0.90	16.04	16.04	0.63	42.8
HDB0612LF	IP67			9.0	0.30	3.60	6500	0.77	11.85	11.85	0.47	40.2
HDB0624VF	IP67	Ball	24	12.0	0.85	10.20	15000	1.81	67.47	67.47	2.66	63.0
HDB0624E	IP67			12.0	0.60	7.20	13000	1.56	51.23	51.23	2.02	57.4
HDB0624UF	IP67			12.0	0.50	6.00	11000	1.31	44.70	44.70	1.76	53.0
HDB0624HF	IP67			12.0	0.35	4.20	9000	1.06	25.49	25.49	1.00	46.6
HDB0624MF	IP67			18.0	0.25	3.00	7500	0.90	16.04	16.04	0.63	42.8
HDB0624LF	IP67			18.0	0.20	2.40	6500	0.77	11.85	11.85	0.47	40.2
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing

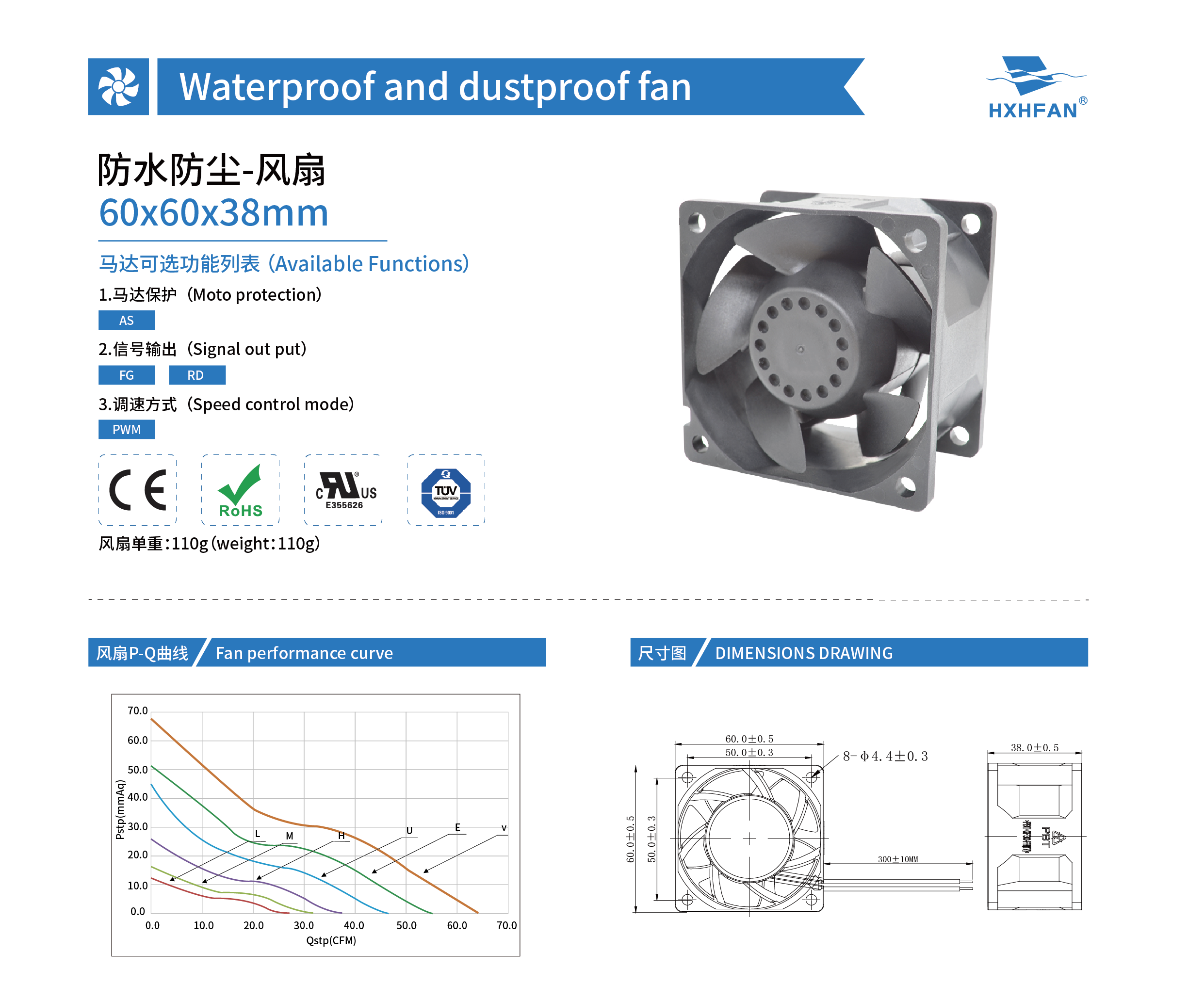

60x60x38mm

DC-轴流风扇
