产品描述

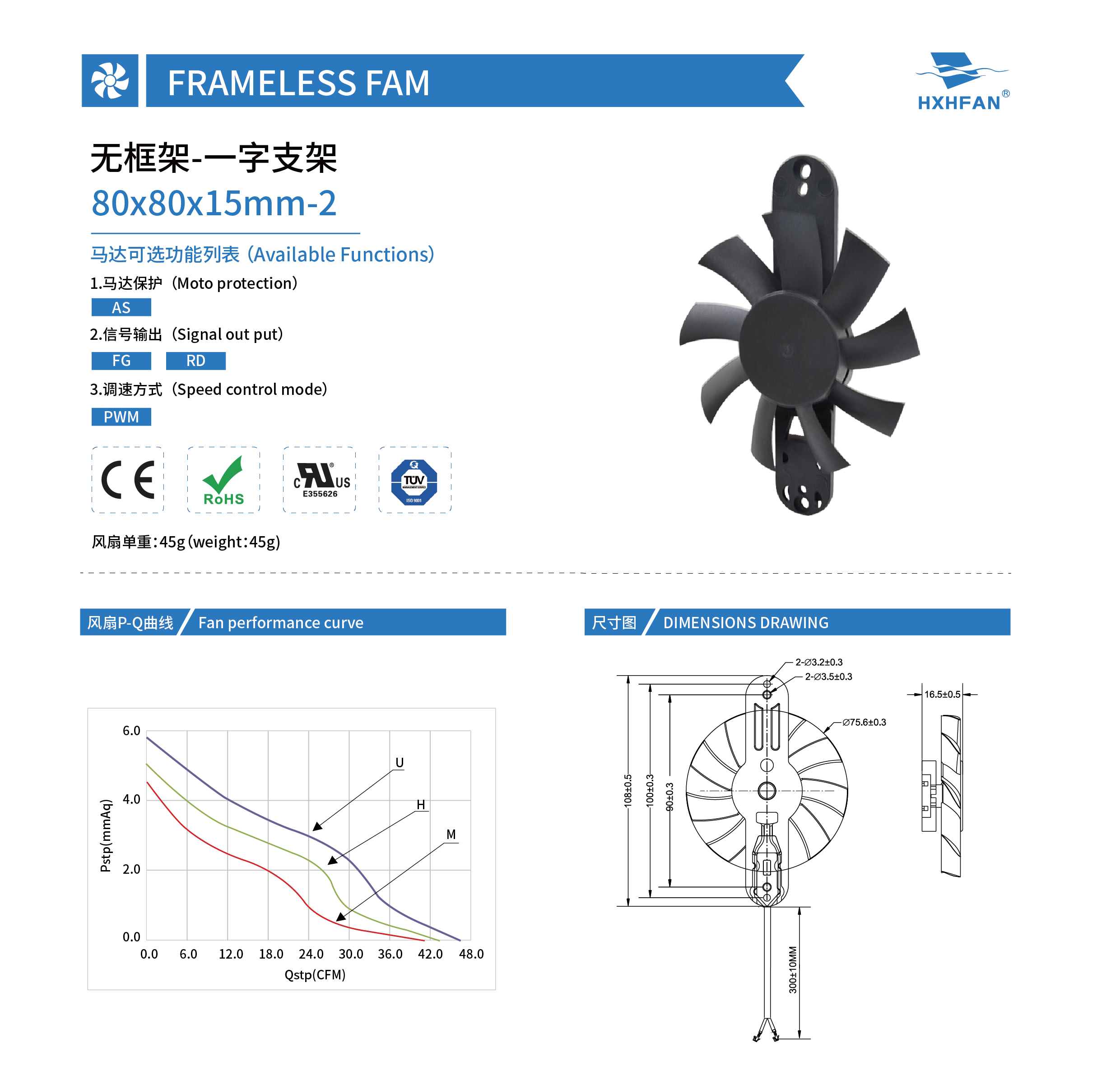

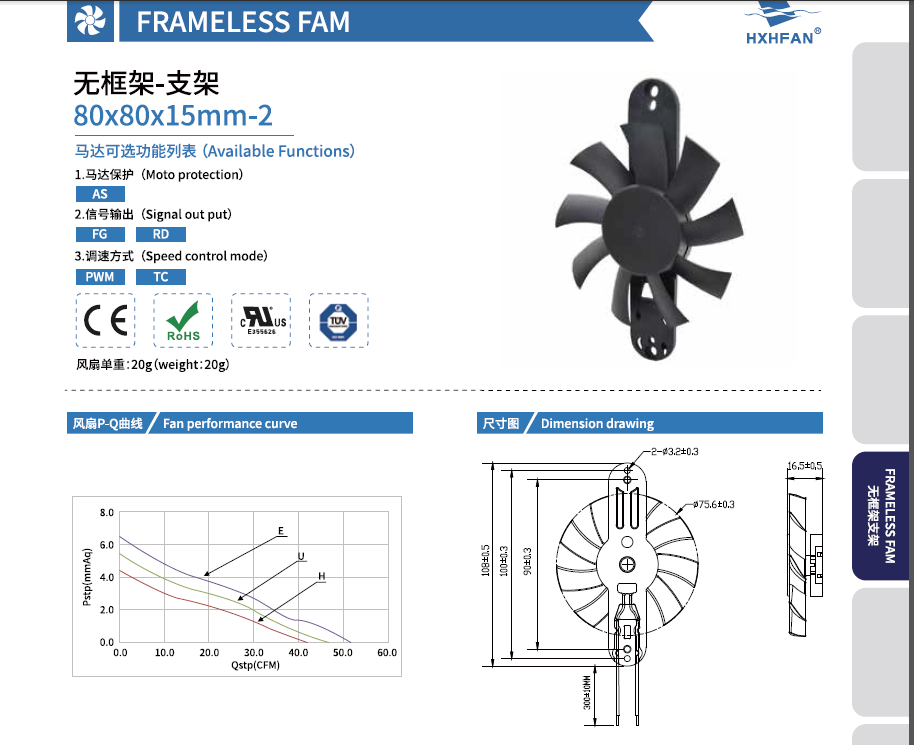

| 80×80×15MM-2 | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HYB0812ED-2 | IP54 | Ball | 12 | 6.0 | 0.39 | 4.68 | 4400 | 1.46 | 51.58 | 6.50 | 0.26 | 44.3 |
| HYB0812UD-2 | IP54 | 6.0 | 0.35 | 4.20 | 4000 | 1.32 | 46.65 | 5.46 | 0.21 | 40.5 | ||
| HYB0812HD-2 | IP54 | 6.0 | 0.26 | 3.12 | 3600 | 1.19 | 41.92 | 4.38 | 0.17 | 38.1 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
