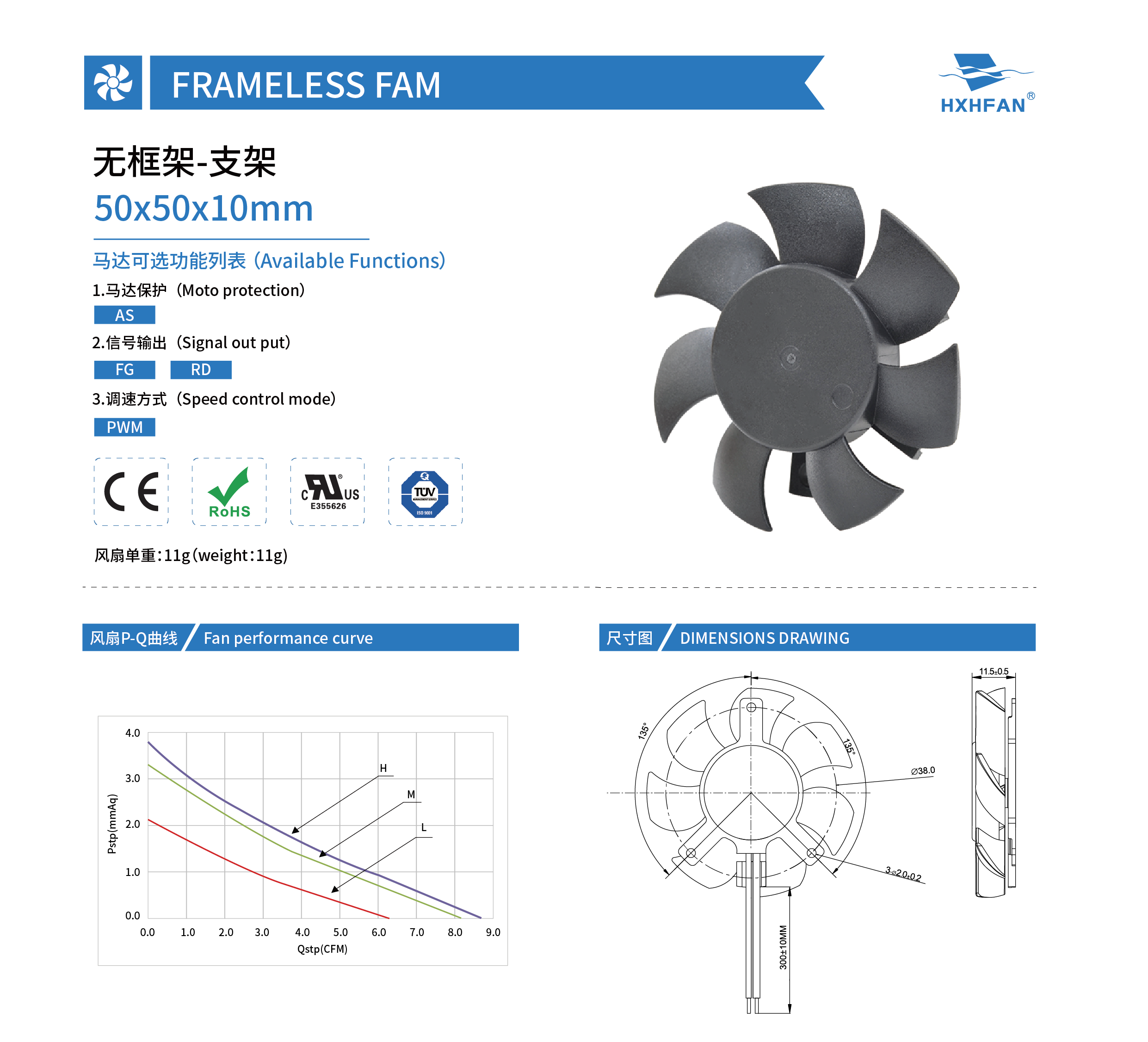

50x50x10mm | |||||||||||||
Frame Size(mm) | Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
50x50x10mm | HYB0512HG | Sleeve /Ball | 12 | 9.0 | 0.15 | 1.80 | 6000 | 0.25 | 8.74 | 3.79 | 0.15 | 33.0 | |
HYB0512MG | 9.0 | 0.10 | 1.20 | 5500 | 0.23 | 8.17 | 3.31 | 0.13 | 30.9 | ||||
HYB0512LG | 9.0 | 0.08 | 0.96 | 4500 | 0.18 | 6.35 | 2.14 | 0.08 | 25.8 |
