产品描述

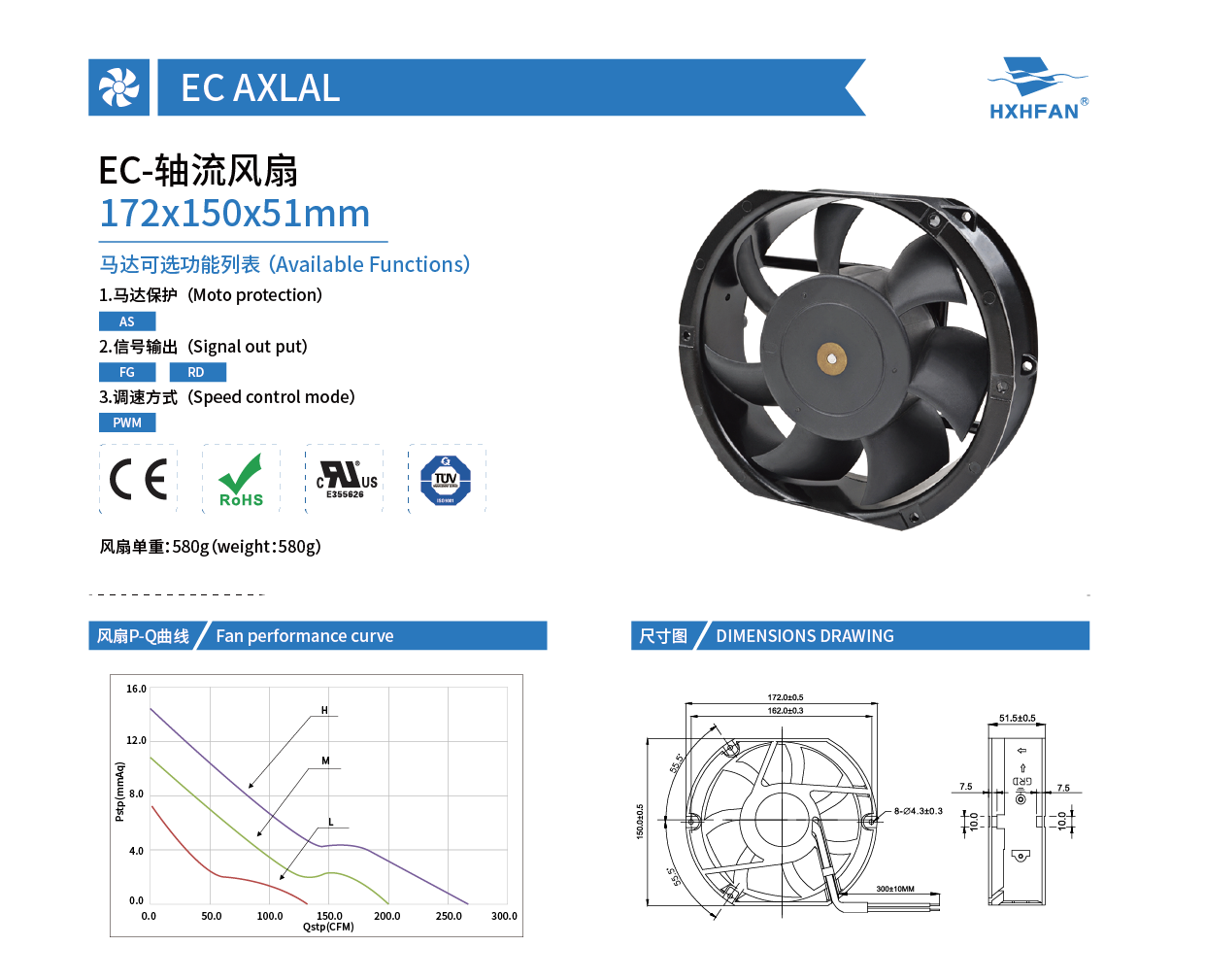

| 172×150×51MM-1 | ||||||||||||
| Model | Bearing | Rated Voltage | Operation Voltage Range | Frequency | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part No. | Function | System | VAC | VAC | HZ | W | RPM | m3/min | CFM | mmH2O | INH2O | dBA |
| HEB172110HU-1 | -A | Ball | 110 | 80～130 | 50/60 | 61.20 | 4000 | 7.60 | 268.62 | 14.37 | 0.57 | 61.5 |
| HEB172110MU-1 | -A | 80～130 | 50/60 | 32.00 | 3000 | 5.70 | 201.47 | 10.78 | 0.42 | 52.0 | ||
| HEB172110LU-1 | -A | 80～130 | 50/60 | 10.50 | 2000 | 3.80 | 134.31 | 7.19 | 0.28 | 40.3 | ||
| HEB172220HU-1 | -A | Ball | 220 | 100～240 | 50/60 | 60.00 | 4000 | 7.60 | 268.62 | 14.37 | 0.57 | 61.5 |
| HEB172220MU-1 | -A | 100～240 | 50/60 | 32.00 | 3000 | 5.70 | 201.47 | 10.78 | 0.42 | 52.0 | ||
| HEB172220LU-1 | -A | 100～240 | 50/60 | 10.50 | 2000 | 3.80 | 134.31 | 7.19 | 0.28 | 40.3 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
关于我们
获得最新报价

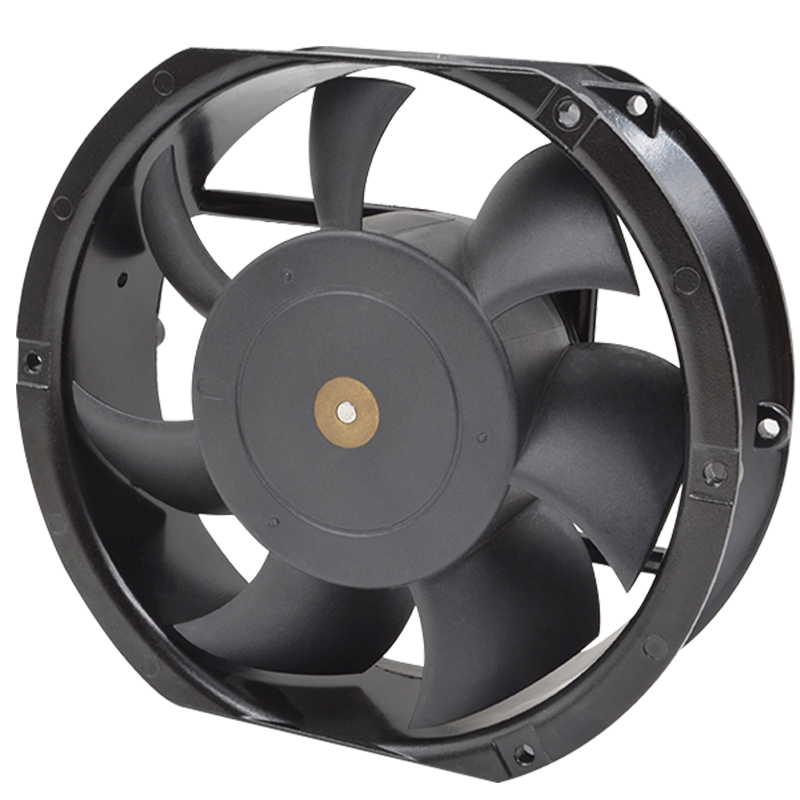

172x150x51mm-1
MOQ：
价格：
