产品描述

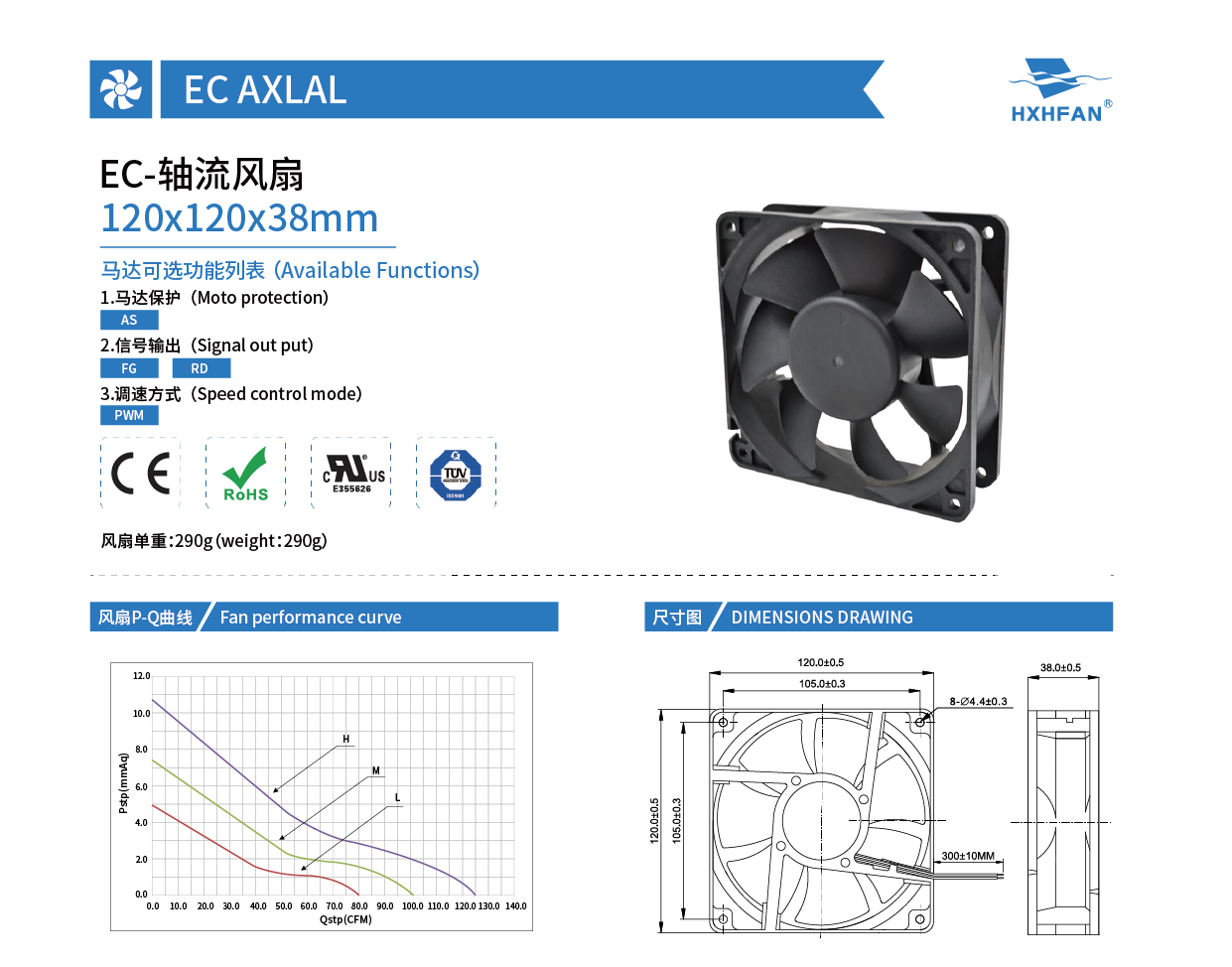

| 120×120×38MM | ||||||||||||
| Model | Bearing | Rated Voltage | Voltage Range | Frequency | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part No. | Function | System | VAC | VAC | HZ | W | RPM | m3/min | CFM | mmH2O | INH2O | dBA |
| HEB12220HF | -A | Ball | 110-220 | 90～240 | 50/60 | 15.00 | 3000 | 3.77 | 133.21 | 9.70 | 0.38 | 49.9 |
| HEB12220MF | -A | 90～240 | 50/60 | 7.90 | 2500 | 3.14 | 111.01 | 6.74 | 0.27 | 45.9 | ||
| HEB12220LF | -A | 90～240 | 50/60 | 2.80 | 2000 | 2.51 | 88.81 | 4.31 | 0.17 | 41.1 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
关于我们
获得最新报价
120x120x38mm
MOQ：
价格：
