产品描述

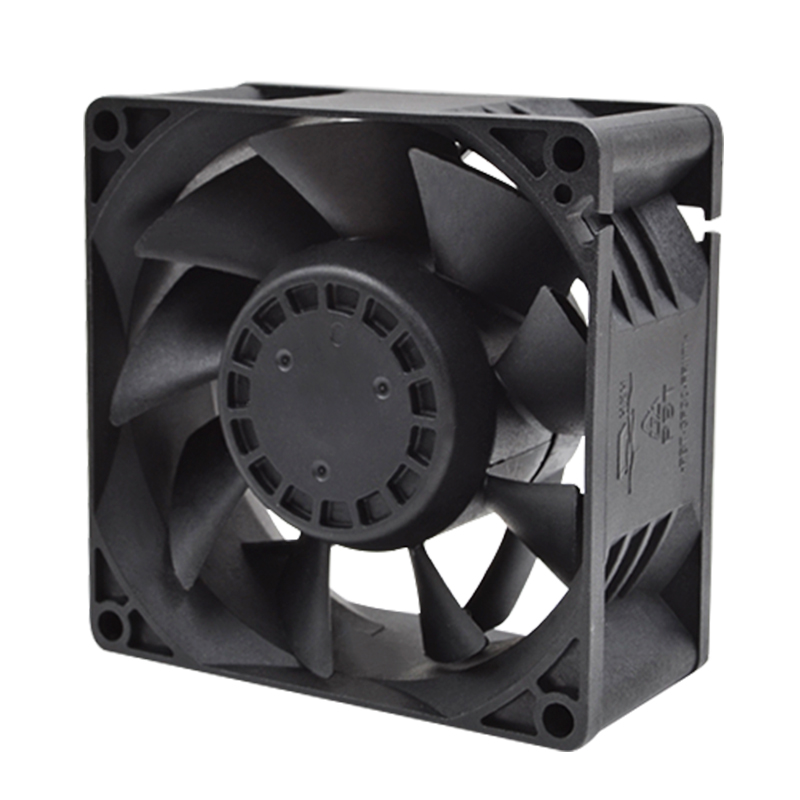

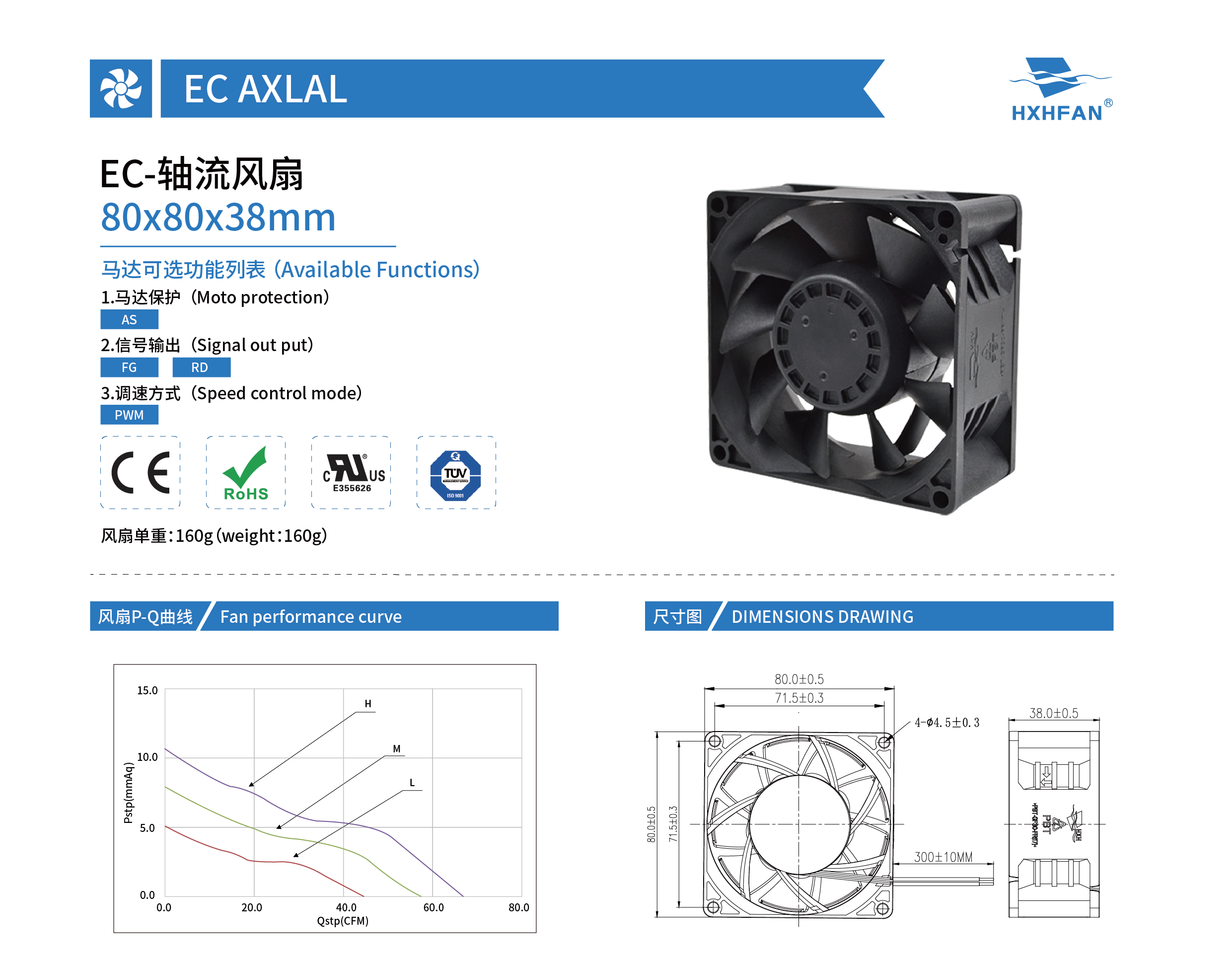

| 80×80×38mm | ||||||||||||
| Model | Bearing | Rated Voltage | Operation Voltage Range | Frequency | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part No. | Function | System | VAC | VAC | HZ | W | RPM | m3/min | CFM | mmH2O | INH2O | dBA |
| HEB08110HF | -A | Ball | 110 | 80～130 | 50/60 | 4.80 | 4900 | 1.89 | 66.90 | 10.66 | 0.42 | 44.65 |
| HEB08110MF | -A | 80～130 | 50/60 | 4.20 | 4200 | 1.63 | 57.53 | 7.89 | 0.31 | 40.00 | ||
| HEB08110LF | -A | 80～130 | 50/60 | 3.60 | 3400 | 1.27 | 44.85 | 5.10 | 0.20 | 34.77 | ||
| HEB08220HF | -A | Ball | 220 | 100～240 | 50/60 | 4.80 | 4900 | 1.89 | 66.90 | 10.06 | 0.42 | 44.65 |
| HEB08220MF | -A | 100～240 | 50/60 | 4.20 | 4200 | 1.63 | 57.53 | 7.89 | 0.31 | 40.00 | ||
| HEB08220LF | -A | 100～240 | 50/60 | 3.60 | 3400 | 1.27 | 44.85 | 5.10 | 0.20 | 34.77 | ||
| Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing | ||||||||||||
