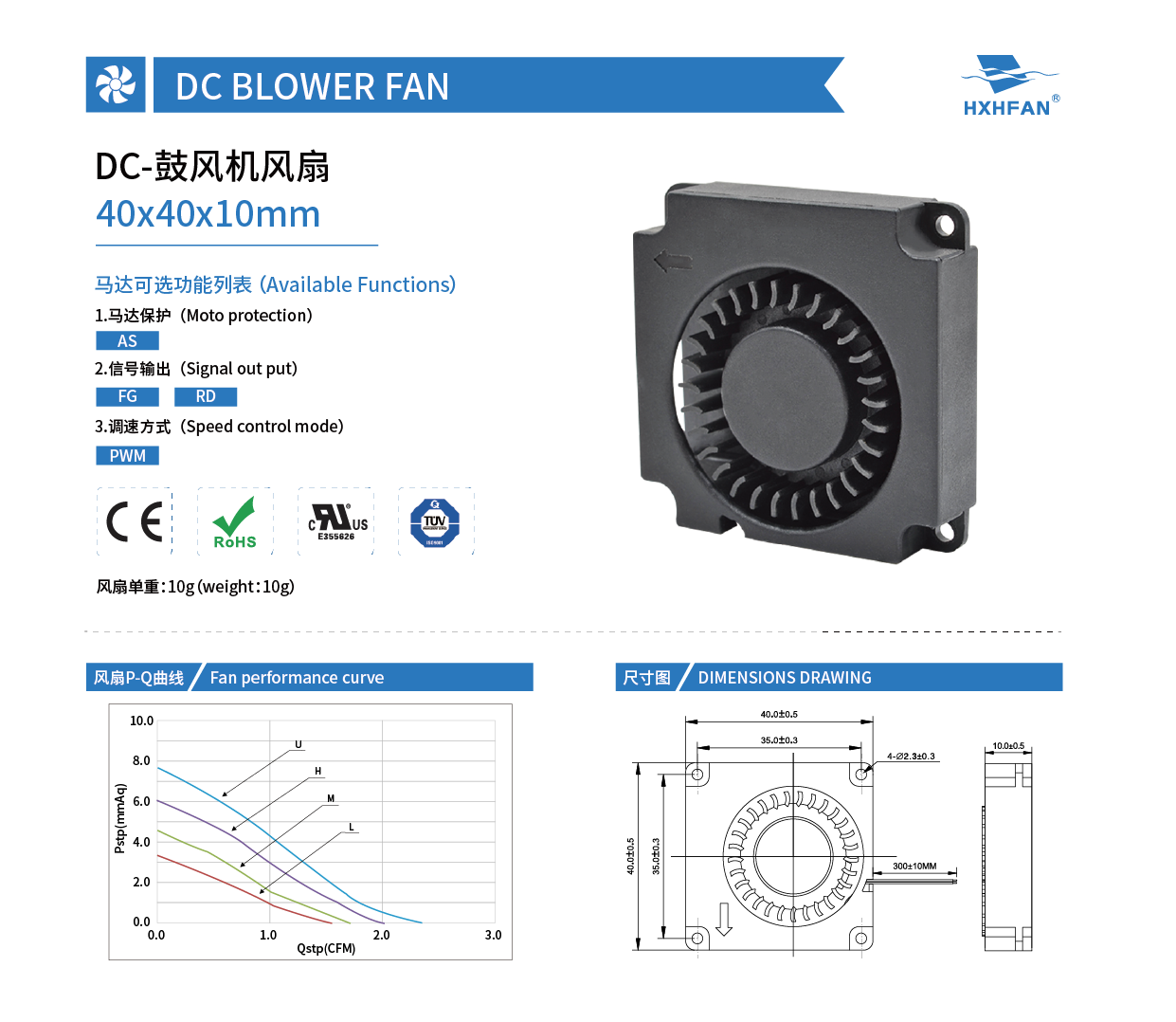

40×40×10mm
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Model		Bearing	Rated Voltage	Startup Voltage	Current	Power	Speed	Air Flow		Static Pressure		Noise
Part NO.	Function	System	VDC	VDC	A	W	RPM	M3/min	CFM	mmH2O	INH2O	dBA
HBS0405UG		Sleeve	5	4.0	0.22	1.10	8500	0.07	2.36	7.71	0.30	28.2
HBS0405HG				4.0	0.17	0.85	7500	0.06	2.04	6.07	0.24	26.6
HBS0405MG				4.0	0.11	0.55	6500	0.05	1.72	4.57	0.18	23.7
HBS0405LG				4.0	0.07	0.35	5500	0.04	1.56	3.36	0.13	20.9
HBB0405UG		Ball		4.0	0.22	1.10	8500	0.07	2.36	7.71	0.30	28.2
HBB0405HG				4.0	0.17	0.85	7500	0.06	2.04	6.07	0.24	26.6
HBB0405MG				4.0	0.11	0.55	6500	0.05	1.72	4.57	0.18	23.7
HBB0405LG				4.0	0.07	0.35	5500	0.04	1.56	3.36	0.13	20.9
HBS0412UG		Sleeve	12	9.0	0.10	1.20	8500	0.07	2.36	7.71	0.30	28.2
HBS0412HG				9.0	0.08	0.96	7500	0.06	2.04	6.07	0.24	26.6
HBS0412MG				9.0	0.06	0.72	6500	0.05	1.72	4.57	0.18	23.7
HBS0412LG				9.0	0.05	0.60	5500	0.04	1.56	3.36	0.13	20.9
HBB0412UG		Ball		9.0	0.10	1.20	8500	0.07	2.36	7.71	0.30	28.2
HBB0412HG				9.0	0.08	0.96	7500	0.06	2.04	6.07	0.24	26.6
HBB0412MG				9.0	0.06	0.72	6500	0.05	1.72	4.57	0.18	23.7
HBB0412LG				9.0	0.05	0.60	5500	0.04	1.56	3.36	0.13	20.9
Bearing Type:S=Sleeve Bearing H=Hydraulic Bearing B=Two Ball Bearing C=One Ball One Sleeve Bearing

40x40x10mm

DC-轴流风扇
